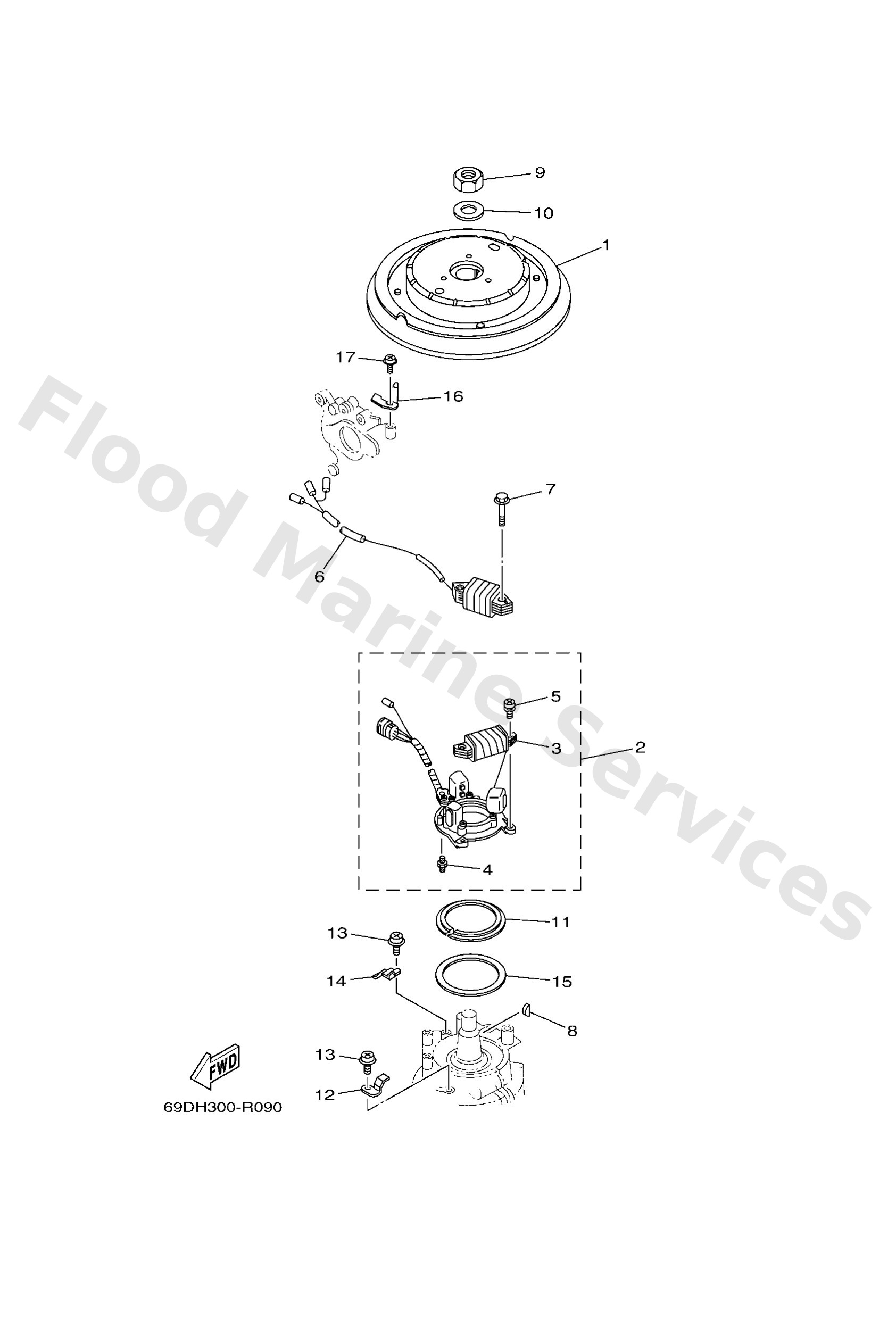

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Stator assembly
Diagram Reference: 2
Charge coil assembly
Diagram Reference: 3
Joint, ball
Diagram Reference: 4
Screw, with washer(6m6)
Diagram Reference: 5
Lighting coil assembly
Diagram Reference: 6
Bolt, with washer(63m)
Diagram Reference: 7
Key, woodruff
Diagram Reference: 8
Nut, hexagon(663)
Diagram Reference: 9
Washer, plate (663)
Diagram Reference: 10
Retainer, magneto base
Diagram Reference: 11
Retainer, magneto base 2
Diagram Reference: 12
Screw, with washer(6h3)
Diagram Reference: 13
Retainer, magneto base 2
Diagram Reference: 14
Washer, magneto
Diagram Reference: 15
Plate, timing
Diagram Reference: 16
Screw pan head
Diagram Reference: 17
