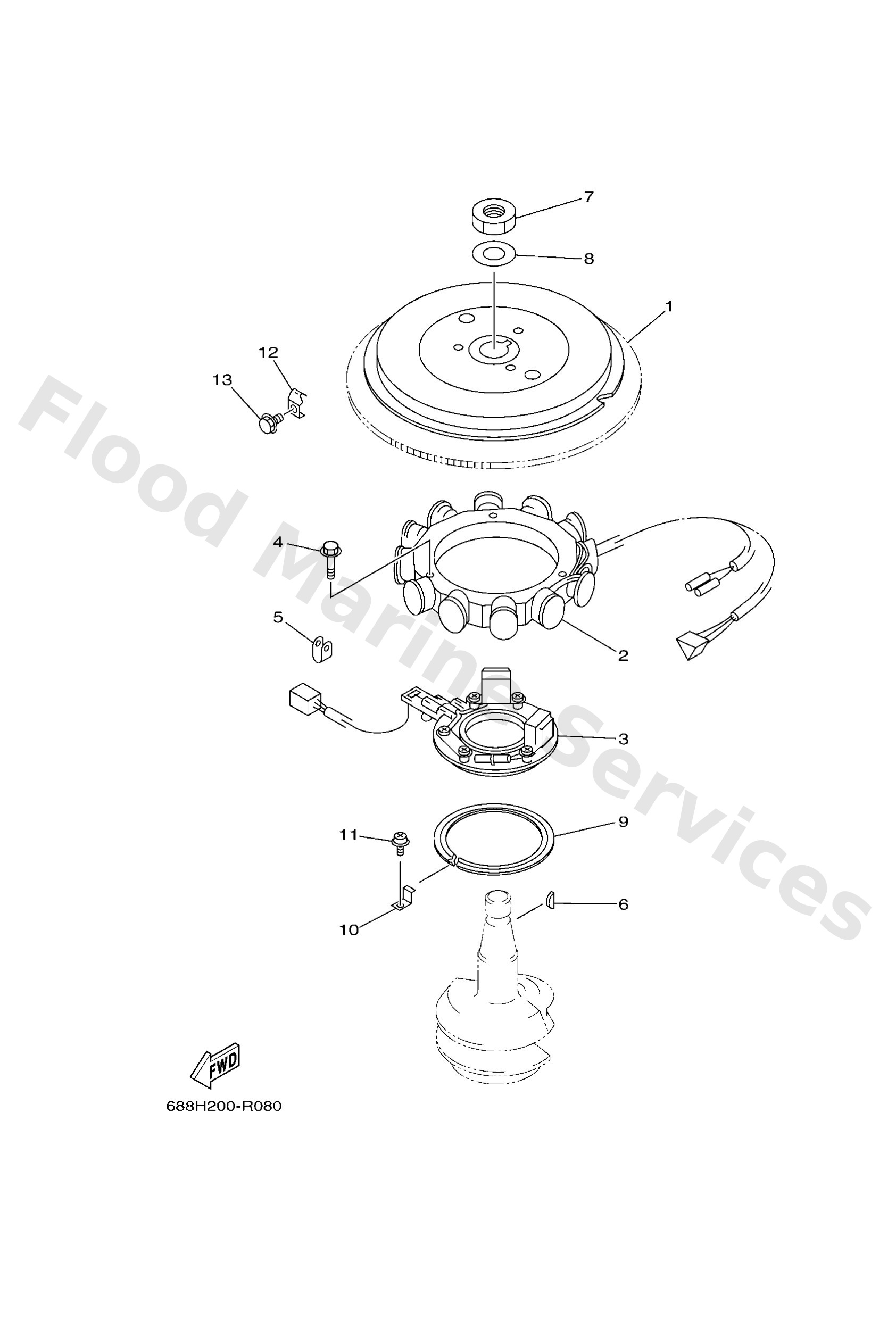

Diagram: GENERATOR

Diagram

Parts List

6928555000
Rotor assembly
Diagram Reference: 1
Get Part
6888555000
Rotor assembly
Diagram Reference: 1
Get Part
6888551001
Stator assembly
Diagram Reference: 2
Get Part
6888558000
Coil, pulser
Diagram Reference: 3
Get Part
9751306530
Bolt, with washer(63m)
Diagram Reference: 4
Get Part
9046412M00
Clamp
Diagram Reference: 5
Get Part
9028005015
Key, woodruff
Diagram Reference: 6
Get Part
9017020137
Nut, hexagon(663)
Diagram Reference: 7
Get Part
9020121M18
Washer, plate (663)
Diagram Reference: 8
Get Part
6884161100
Retainer, magneto base 1
Diagram Reference: 9
Get Part
6884161200
Retainer, magneto base 2
Diagram Reference: 10
Get Part
9015906M31
Screw, with washer
Diagram Reference: 11
Get Part
6888133201
Plate, timing
Diagram Reference: 12
Get Part
97E9506510
Bolt, hexagon w/w deep recess
Diagram Reference: 13
Get Part
