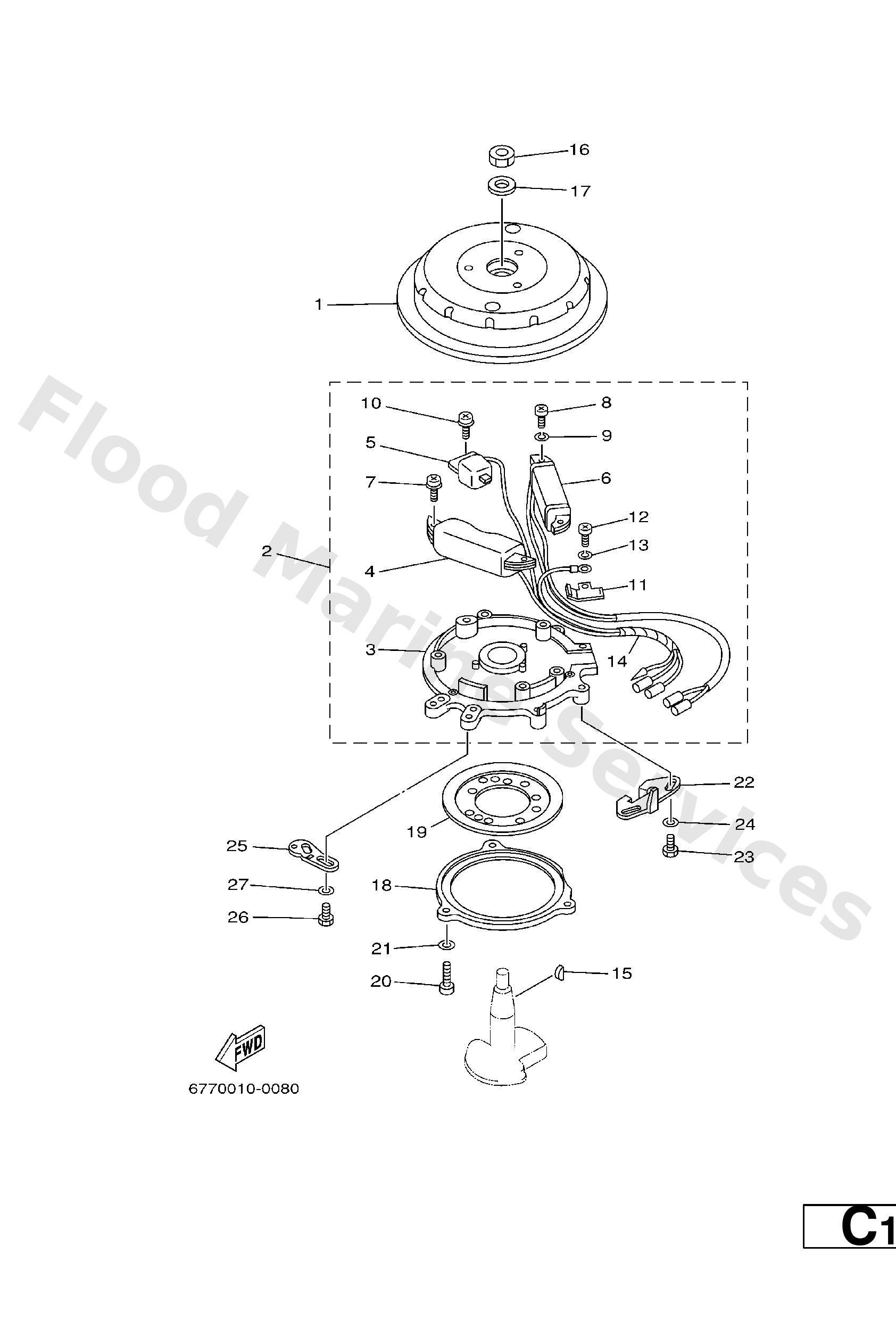

Diagram: GENERATOR

Diagram

Parts List

6G1−85550−71

Rotor assembly

Diagram Reference: 1

6K3−85560−40

Base assembly

Diagram Reference: 2

6K3−85509−70

Base, Magneto

Diagram Reference: 3

6E7−85520−70

Coil assembly

Diagram Reference: 4

6E7−85580−70

Pulser coil ass'y

Diagram Reference: 5

6E7−85533−40

Coil, Lighting

Diagram Reference: 6

90159−05039

Screw panhead (695)

Diagram Reference: 7

97802−05020

Screw, pan head

Diagram Reference: 8

92902−05100

Ybs67-5 washer, spring

Diagram Reference: 9

90159−05038

Screw, With Washer

Diagram Reference: 10

6G1−85548−70

Cord, clamp

Diagram Reference: 11

97802−04008

Screw, pan head (713)

Diagram Reference: 12

92902−04100

Ybs67-4 washer, spring

Diagram Reference: 13

6G1−85515−70

Wire, lead

Diagram Reference: 14

90280−04M06

Key, woodruff(6a1)

Diagram Reference: 15

90170−10113

Nut, crank shaft (650)

Diagram Reference: 16

90201−10126

Washer, plate (26h)

Diagram Reference: 17

677−41611−00−94

Retainer, magneto base 1

Diagram Reference: 18

677−41612−00

Retainer, magneto base 2

Diagram Reference: 19

97885−05010

Screw, pan head(62x)

Diagram Reference: 20

92995−05600

Washer, plain (646)

Diagram Reference: 21

677−41615−10

Stopper, Magneto Base

Diagram Reference: 22

97095−06016

Bolt, hexagon deep recess

Diagram Reference: 23

92995−06600

Washer, plain (646)

Diagram Reference: 24

677−41213−00−94

Cam, Accel.

Diagram Reference: 25

97095−05014

Bolt, w/ plain

Diagram Reference: 26
