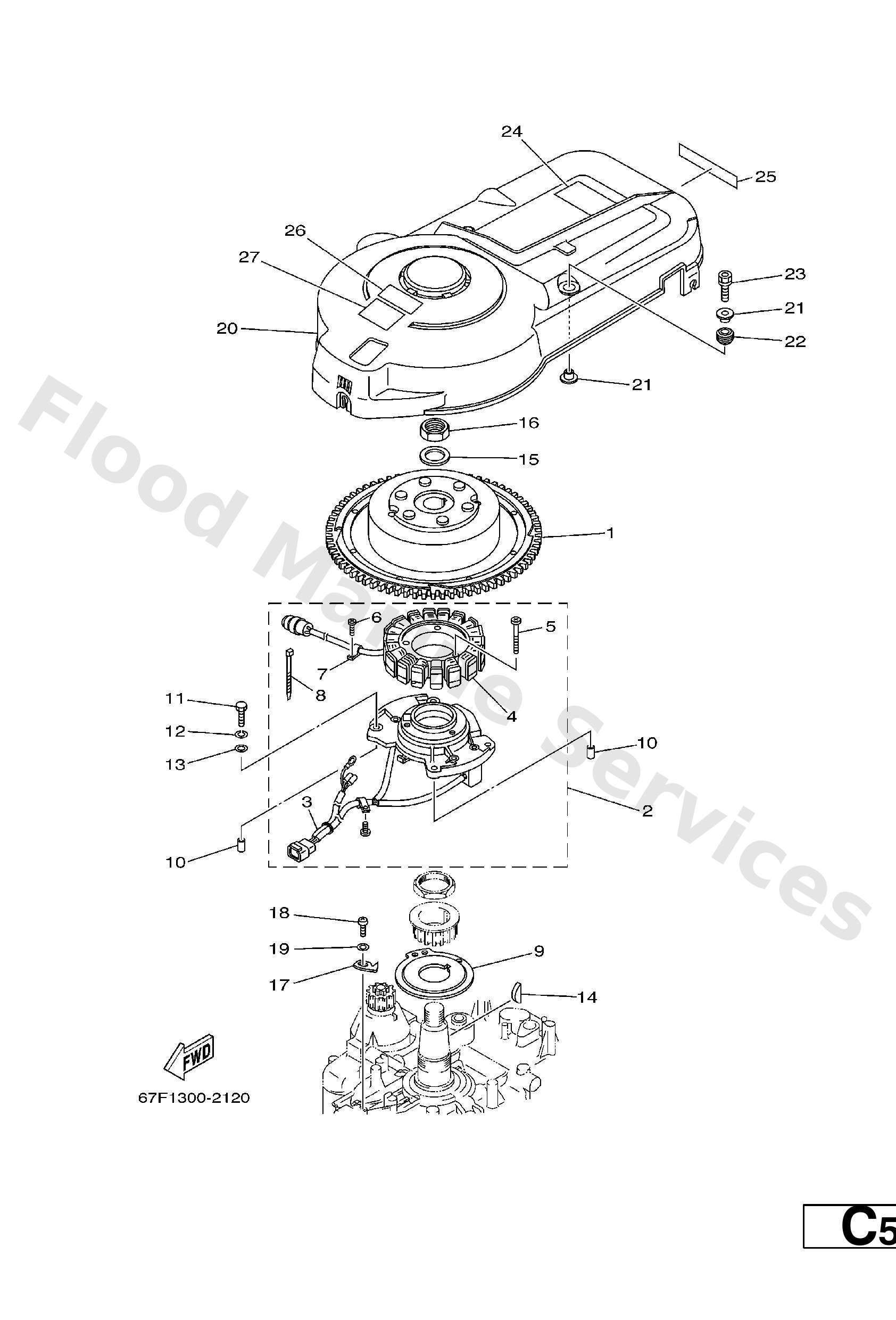

Diagram: GENERATOR

Diagram

Parts List

67F−85550−00

Rotor assembly

Diagram Reference: 1

67F−85560−01

Base assembly

Diagram Reference: 2

67F−85580−00

Coil, pulser

Diagram Reference: 3

67F−85510−01

Stator assembly

Diagram Reference: 4

63D−81345−20

Screw, pan

Diagram Reference: 5

97607−04110

Screw, pan head with washer (s

Diagram Reference: 6

445−81328−20

Clamp, read

Diagram Reference: 7

66T−81328−00

Clamp

Diagram Reference: 8

67F−81673−00

Rotor

Diagram Reference: 9

99530−08012

Pin, dowel(6g8)

Diagram Reference: 10

97095−06030

Bolt(jf7)

Diagram Reference: 11

92995−06100

Washer(6a1)

Diagram Reference: 12

92995−06600

Washer, plain (646)

Diagram Reference: 13

90280−05015

Key, woodruff

Diagram Reference: 14

90201−24014

Washer, plate

Diagram Reference: 15

90179−24002

Nut

Diagram Reference: 16

67F−81332−00

Plate, timing

Diagram Reference: 17

97885−06010

Screw pan head

Diagram Reference: 18

67F−81337−01

Cover, flywheel

Diagram Reference: 20

90387−06M71

Collar (6g8)

Diagram Reference: 21

90480−15M31

Grommet (6g1)

Diagram Reference: 22

90119−06M92

Bolt, with washer

Diagram Reference: 23

67F−12138−60

Mark, Caution

Diagram Reference: 24

67F−13437−61

Mark, Caution

Diagram Reference: 25

6A1−83625−41

Mark 5

Diagram Reference: 26

6A1−83625−51

Mark 5

Diagram Reference: 27
