F2.5AMH (2003)
GENERATOR

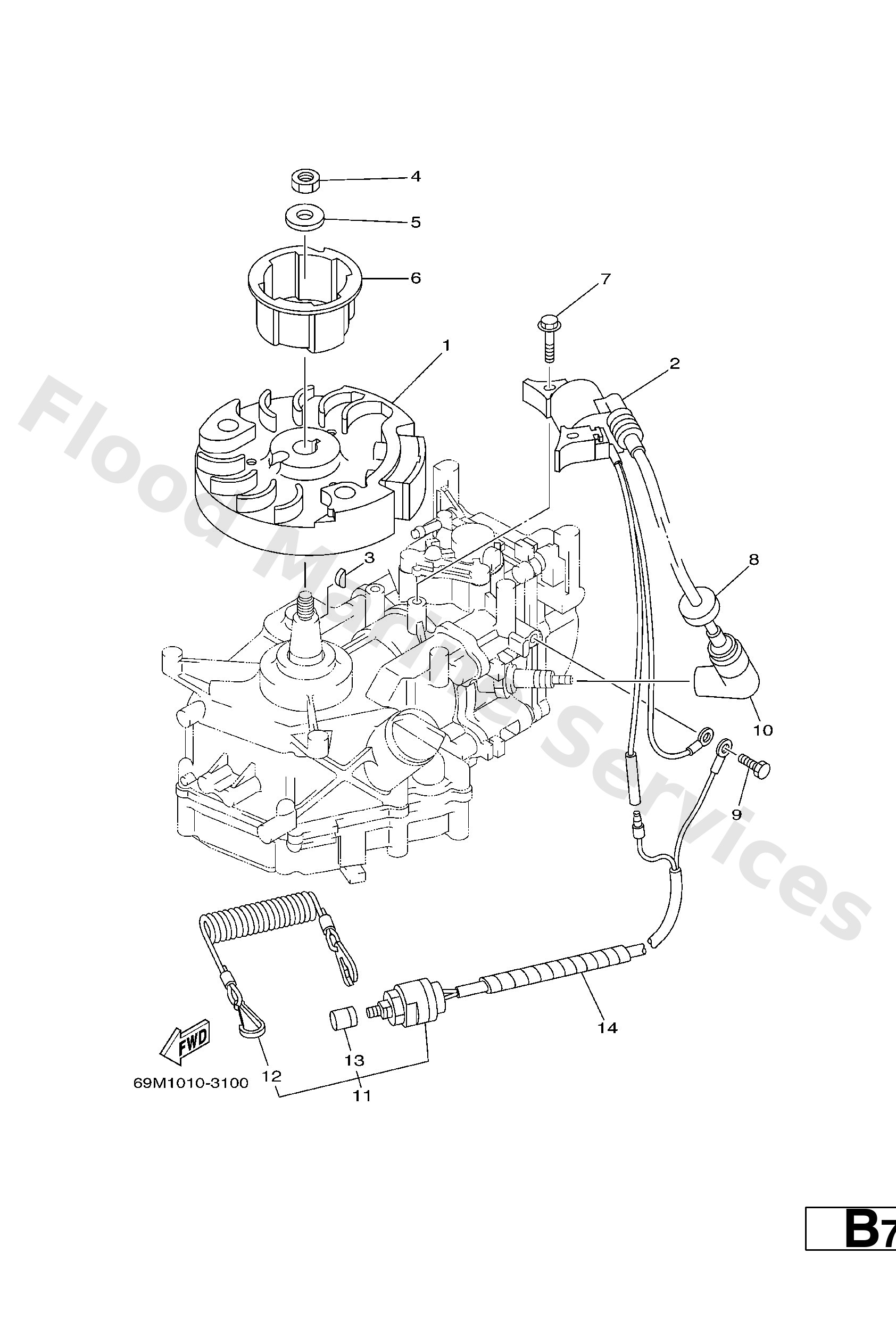

Diagram: GENERATOR
Parts List
Reference
Description
Price
1
69M−85650−00
Rotor assembly
Loading…
↗
2
69M−85640−00
T.c.i. unit assembly
Loading…
↗
3
90280−04M06
Key, woodruff(6a1)
Loading…
↗
4
90170−10M33
Nut(6a1)
Loading…
↗
5
90201−105A2
Washer, plate (4x7)
Loading…
↗
6
69M−15723−00
Pulley, starter
Loading…
↗
7
90105−06M24
Bolt (6g1)
Loading…
↗
8
90480−25161
Grommet(656)
Loading…
↗
9
97095−06012
Bolt(gh1)
Loading…
↗
10
6E3−82370−21
Plug cap assembly
Loading…
↗
11
65W−82575−01
Engine stop switch assembly
Loading…
↗
12
682−82556−00
Lanyard, stop switch
Loading…
↗
13
689−8257Y−00
Cap
Loading…
↗
14
90446−06M90
Hose
Loading…
↗
