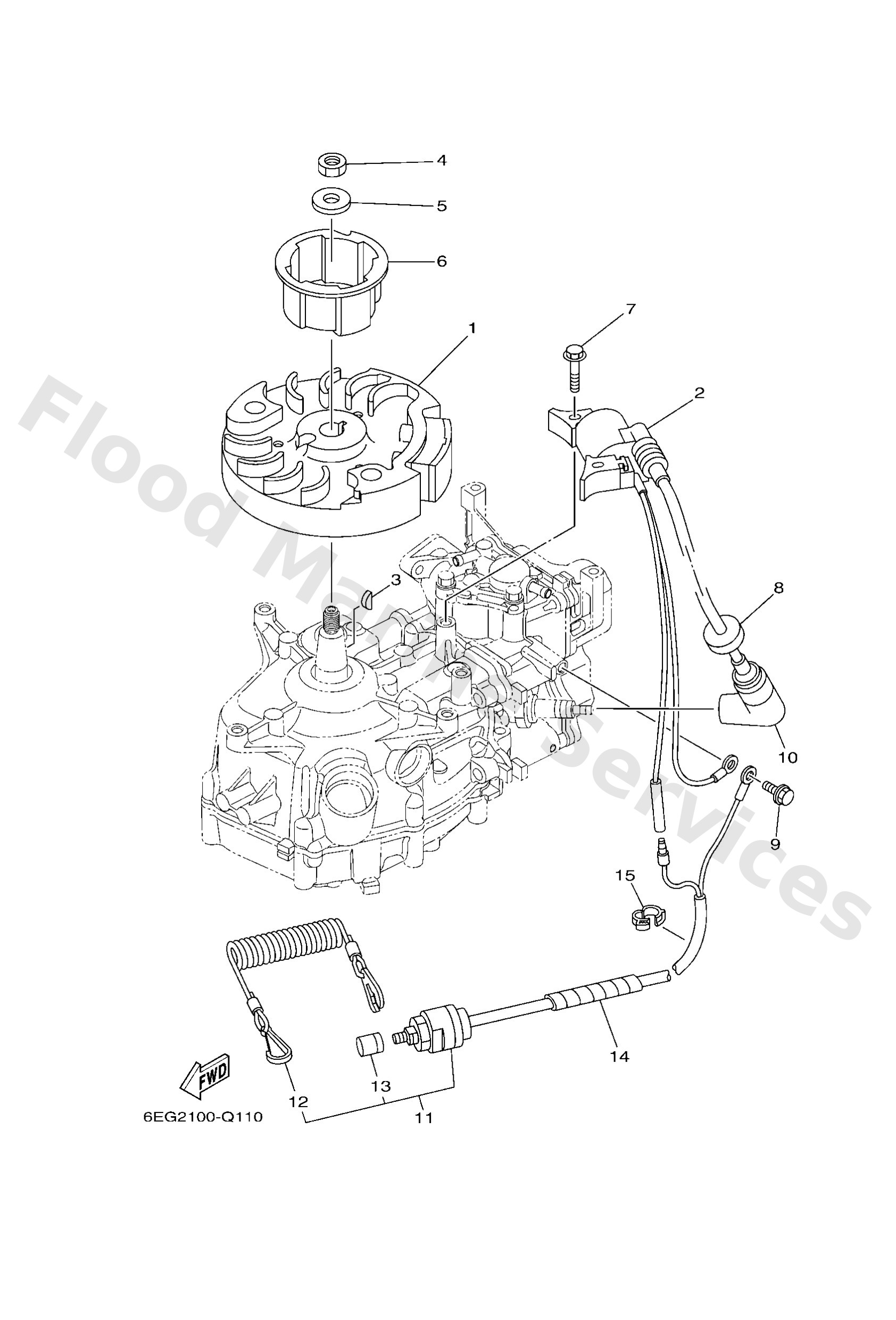

Diagram: GENERATOR

Diagram

Parts List

69M8565000
Rotor assembly
Diagram Reference: 1
Get Part
69M8564000
T.c.i. unit assembly
Diagram Reference: 2
Get Part
9028004M06
Key, woodruff(6a1)
Diagram Reference: 3
Get Part
9017010M33
Nut(6a1)
Diagram Reference: 4
Get Part
90201105A2
Washer, plate (4x7)
Diagram Reference: 5
Get Part
69M1572300
Pulley, starter
Diagram Reference: 6
Get Part
9010506M24
Bolt (6g1)
Diagram Reference: 7
Get Part
9048025161
Grommet(656)
Diagram Reference: 8
Get Part
97E9506512
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Get Part
6BX8237000
Plug cap assembly
Diagram Reference: 10
Get Part
65W8257501
Engine stop switch assembly
Diagram Reference: 11
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 12
Get Part
6898257Y00
Cap
Diagram Reference: 13
Get Part
9044606M90
Hose
Diagram Reference: 14
Get Part
9046416003
Clamp
Diagram Reference: 15
Get Part
