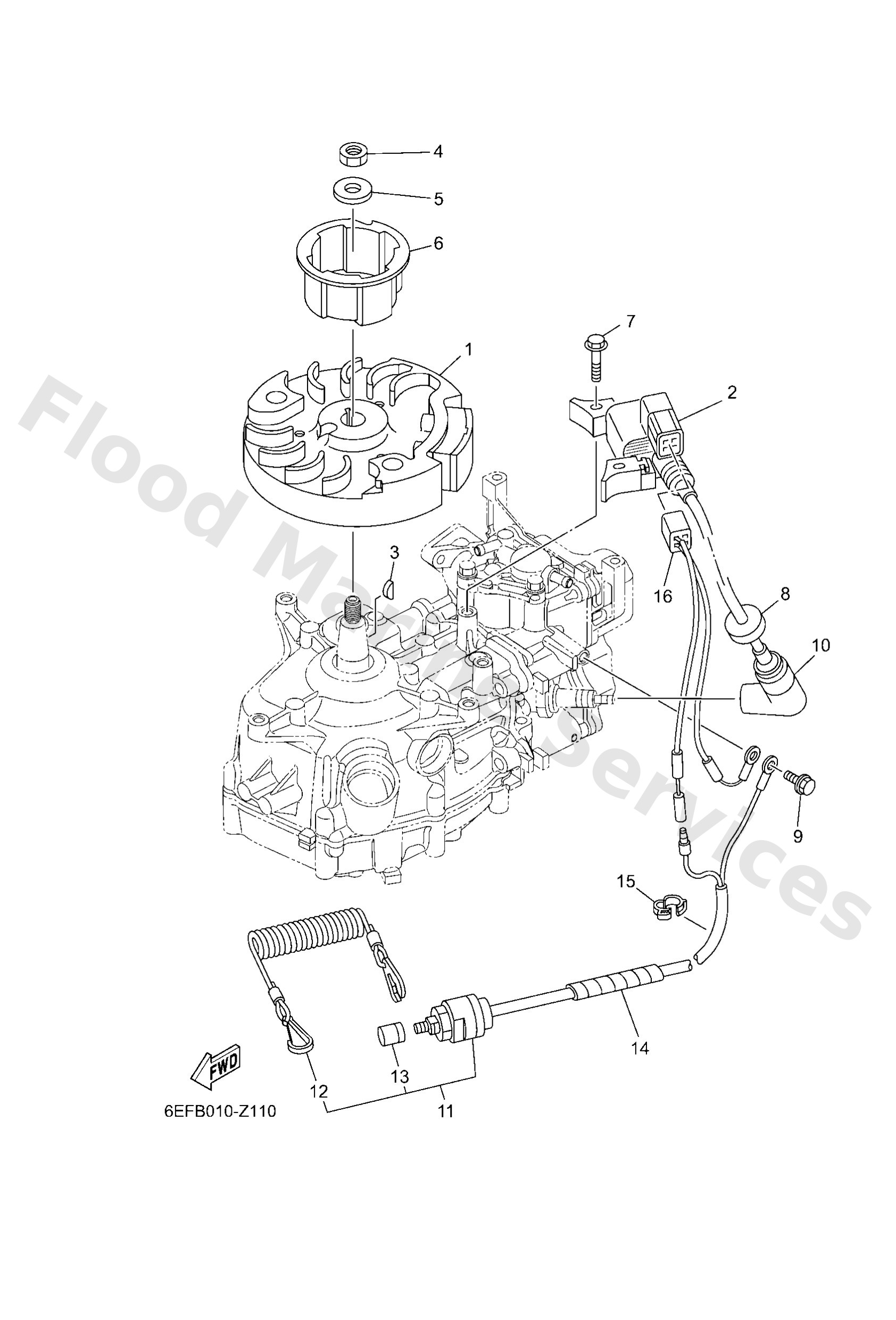

Parts List
Rotor assembly
Diagram Reference: 1
Ignition coil with cdi unit
Diagram Reference: 2
Key, woodruff(6a1)
Diagram Reference: 3
Nut(6a1)
Diagram Reference: 4
Washer, plate (4x7)
Diagram Reference: 5
Pulley, starter
Diagram Reference: 6
Bolt (6g1)
Diagram Reference: 7
Grommet(656)
Diagram Reference: 8
Bolt, hexagon w/w deep recess
Diagram Reference: 9
Plug cap assembly
Diagram Reference: 10
Engine stop switch assembly
Diagram Reference: 11
Lanyard, stop switch
Diagram Reference: 12
Cap
Diagram Reference: 13
Hose
Diagram Reference: 14
Clamp
Diagram Reference: 15
Wire, lead
Diagram Reference: 16
