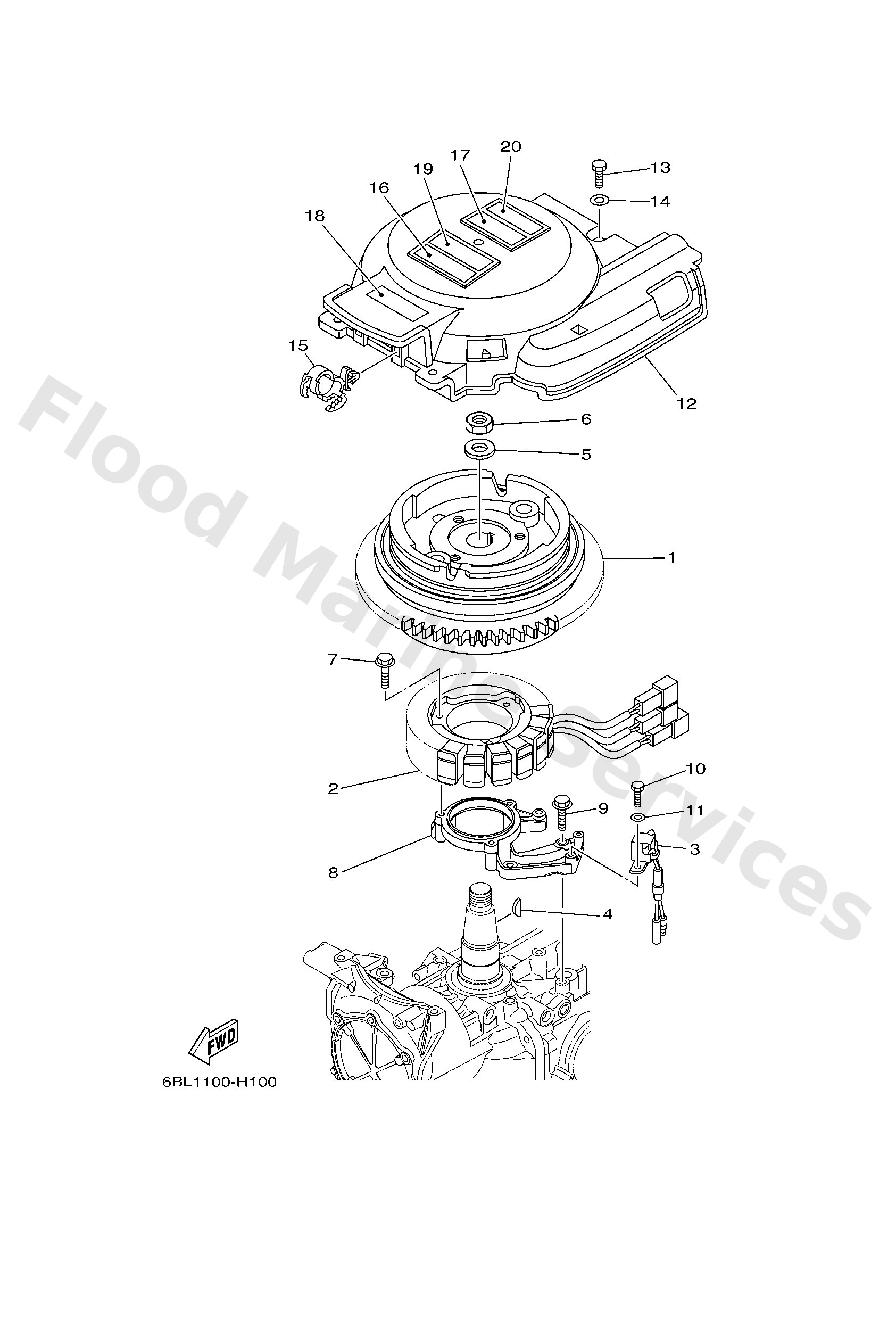

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Stator assembly
Diagram Reference: 2
Coil, pulser
Diagram Reference: 3
Key, woodruff
Diagram Reference: 4
Washer, plate (663)
Diagram Reference: 5
Nut, hexagon(663)
Diagram Reference: 6
Bolt, flange(4as)
Diagram Reference: 7
Base, magneto
Diagram Reference: 8
Bolt, flange(4kg)
Diagram Reference: 9
Bolt(6a1)
Diagram Reference: 10
Washer, plain (646)
Diagram Reference: 11
Cover, flywheel
Diagram Reference: 12
Bolt(7u8)
Diagram Reference: 13
Washer, plain (646)
Diagram Reference: 14
Clamp(jn2)
Diagram Reference: 15
Label, safety
Diagram Reference: 16
Label, warning
Diagram Reference: 17
Mark
Diagram Reference: 18
Label, safety
Diagram Reference: 19
Label, warning
Diagram Reference: 20
