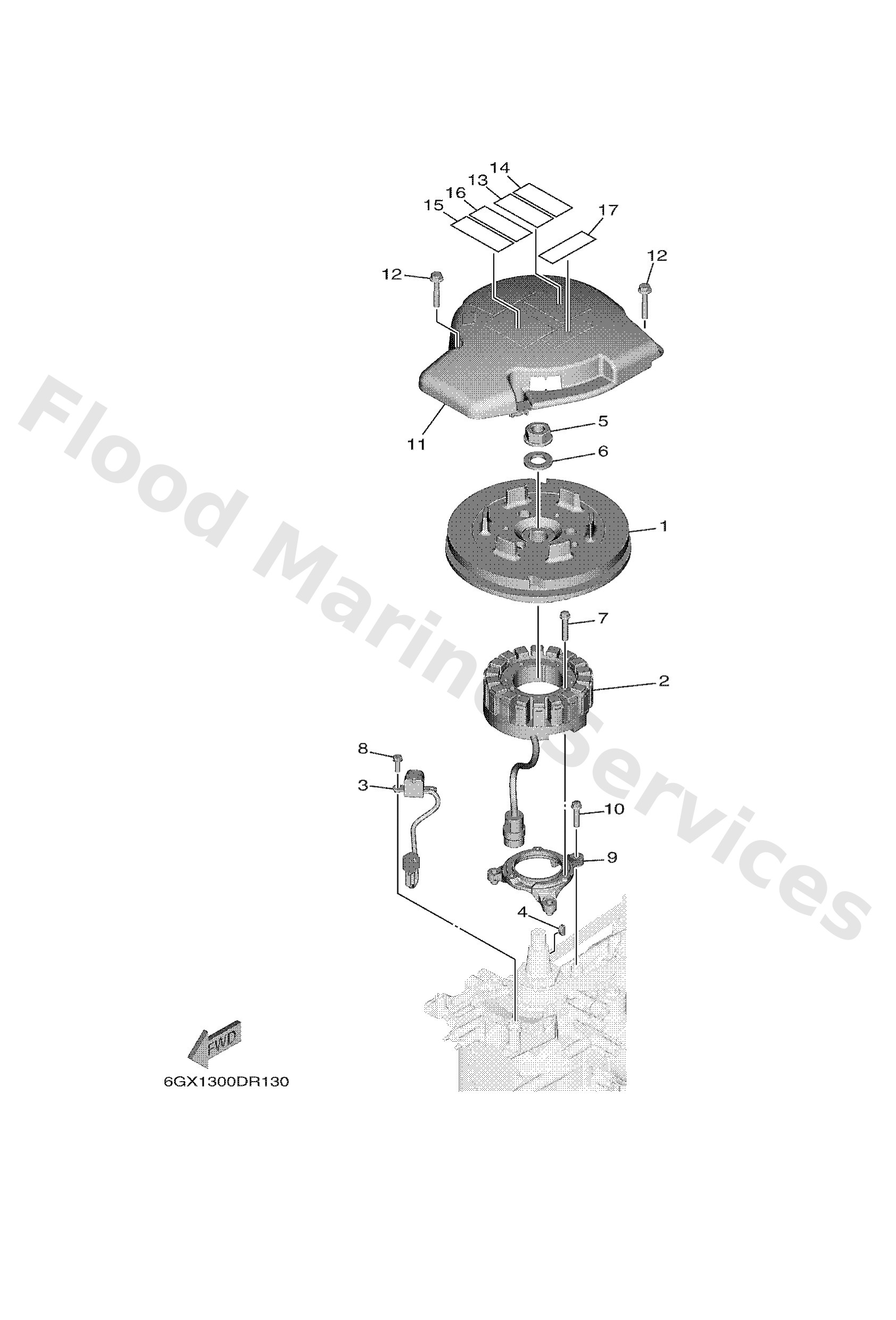

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Stator assembly
Diagram Reference: 2
Coil, pulser
Diagram Reference: 3
Key, woodruff
Diagram Reference: 4
Nut (689)
Diagram Reference: 5
Washer (689)
Diagram Reference: 6
Bolt, flange(4as)
Diagram Reference: 7
Bolt, with washer
Diagram Reference: 8
Base, magneto
Diagram Reference: 9
Bolt, flange(4kg)
Diagram Reference: 10
Cover, flywheel
Diagram Reference: 11
Bolt(7u8)
Diagram Reference: 12
Label, warning
Diagram Reference: 13
Label, warning
Diagram Reference: 14
Label, safety
Diagram Reference: 15
Label, safety
Diagram Reference: 16
Mark
Diagram Reference: 17
