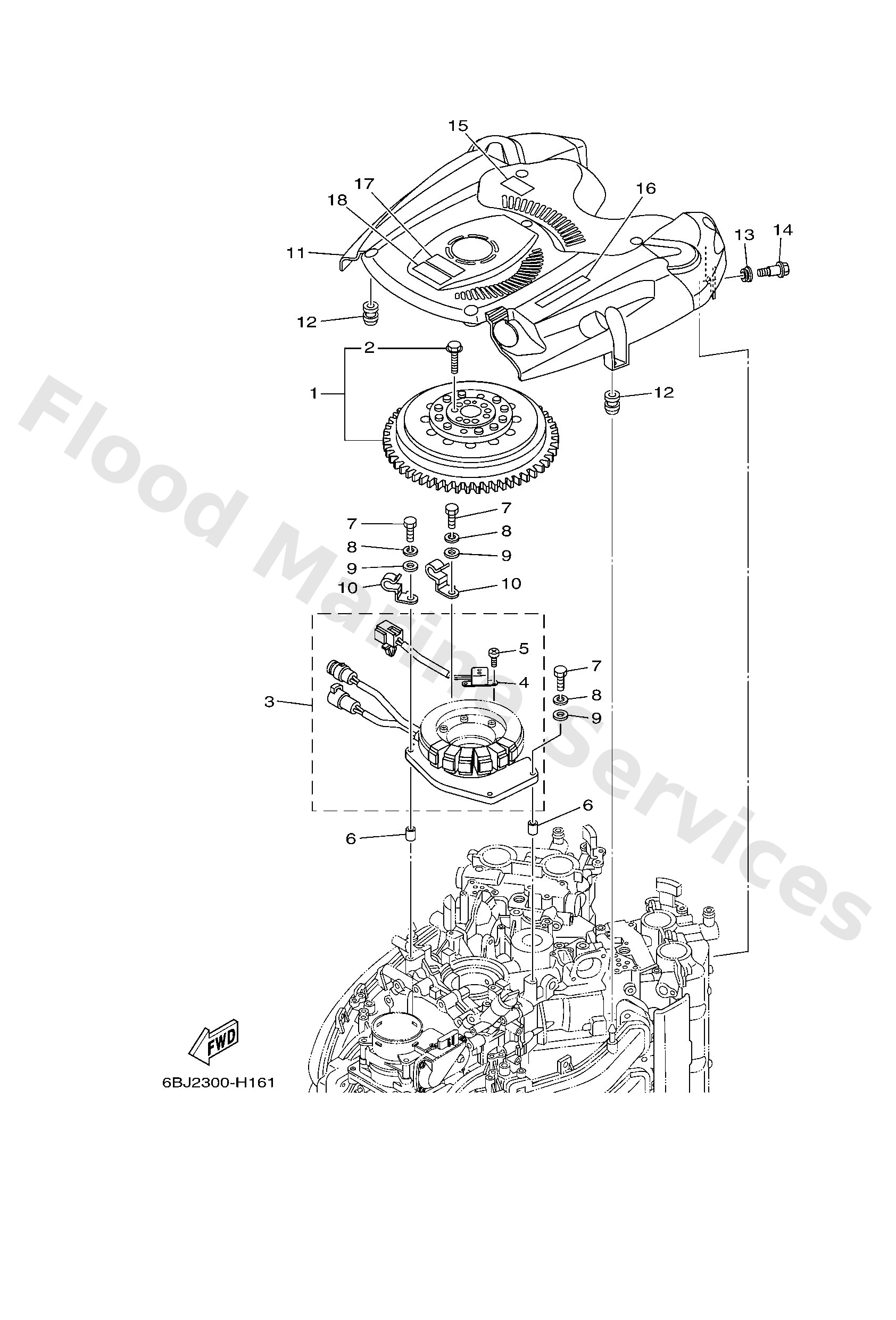

Diagram: GENERATOR
Parts List
F350 rotor kit
Diagram Reference: 1
Bolt set
Diagram Reference: 2
Base assembly
Diagram Reference: 3
Coil, pulser
Diagram Reference: 4
Screw, pan
Diagram Reference: 5
Pin, dowel(6g8)
Diagram Reference: 6
Bolt(jf7)
Diagram Reference: 7
Washer(6a1)
Diagram Reference: 8
Washer, plain (646)
Diagram Reference: 9
Clamp
Diagram Reference: 10
Cover, flywheel
Diagram Reference: 11
Damper, ignition coil
Diagram Reference: 12
Grommet(53y)
Diagram Reference: 13
Bolt
Diagram Reference: 14
Mark, Caution
Diagram Reference: 15
Mark, caution
Diagram Reference: 16
Label, safety
Diagram Reference: 17
Label, safety
Diagram Reference: 18
