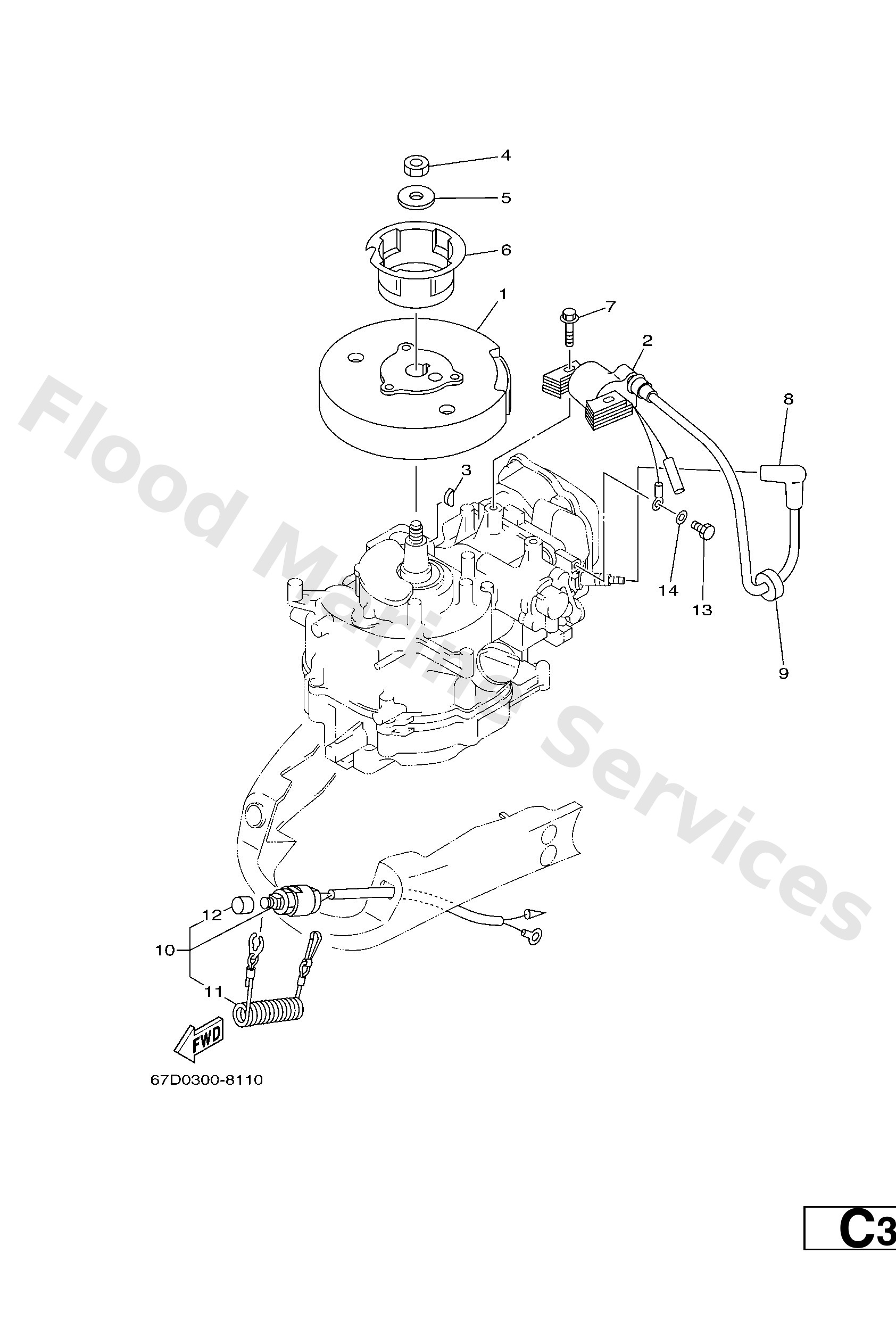

Diagram: GENERATOR

Diagram

Parts List

67D8565000
Rotor assembly
Diagram Reference: 1
Get Part
67D8564000
T.c.i. unit assembly
Diagram Reference: 2
Get Part
9028004M06
Key, woodruff(6a1)
Diagram Reference: 3
Get Part
9017010M33
Nut(6a1)
Diagram Reference: 4
Get Part
90201105A2
Washer, plate (4x7)
Diagram Reference: 5
Get Part
67D1572300
Pulley, Starter
Diagram Reference: 6
Get Part
9010506M24
Bolt (6g1)
Diagram Reference: 7
Get Part
6E38237021
Plug cap assembly
Diagram Reference: 8
Get Part
9048025161
Grommet(656)
Diagram Reference: 9
Get Part
67D8257500
Engine stop switch assembly
Diagram Reference: 10
Get Part
6828255600
Lanyard, stop switch
Diagram Reference: 11
Get Part
6898257Y00
Cap
Diagram Reference: 12
Get Part
9709506012
Bolt(gh1)
Diagram Reference: 13
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 14
