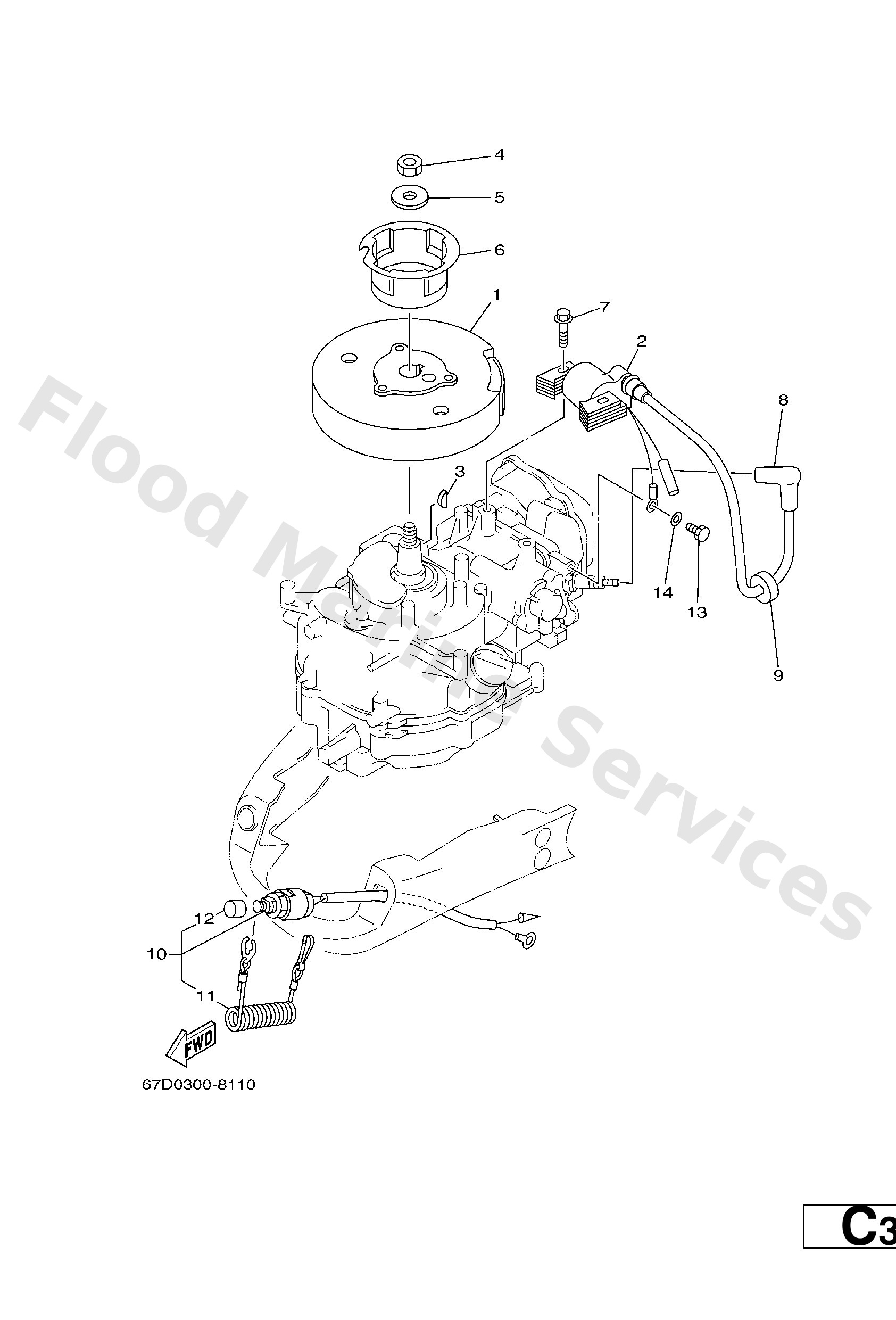

Diagram: GENERATOR

Diagram

Parts List

67D−85650−00
Rotor assembly
Diagram Reference: 1
Get Part
67D−85640−00
T.c.i. unit assembly
Diagram Reference: 2
Get Part
90280−04M06
Key, woodruff(6a1)
Diagram Reference: 3
Get Part
90170−10M33
Nut(6a1)
Diagram Reference: 4
Get Part
90201−105A2
Washer, plate (4x7)
Diagram Reference: 5
Get Part
67D−15723−00
Pulley, Starter
Diagram Reference: 6
Get Part
90105−06M24
Bolt (6g1)
Diagram Reference: 7
Get Part
6E3−82370−21
Plug cap assembly
Diagram Reference: 8
Get Part
90480−25161
Grommet(656)
Diagram Reference: 9
Get Part
67D−82575−00
Engine stop switch assembly
Diagram Reference: 10
Get Part
682−82556−00
Lanyard, stop switch
Diagram Reference: 11
Get Part
689−8257Y−00
Cap
Diagram Reference: 12
Get Part
97095−06012
Bolt(gh1)
Diagram Reference: 13
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 14
Get Part
