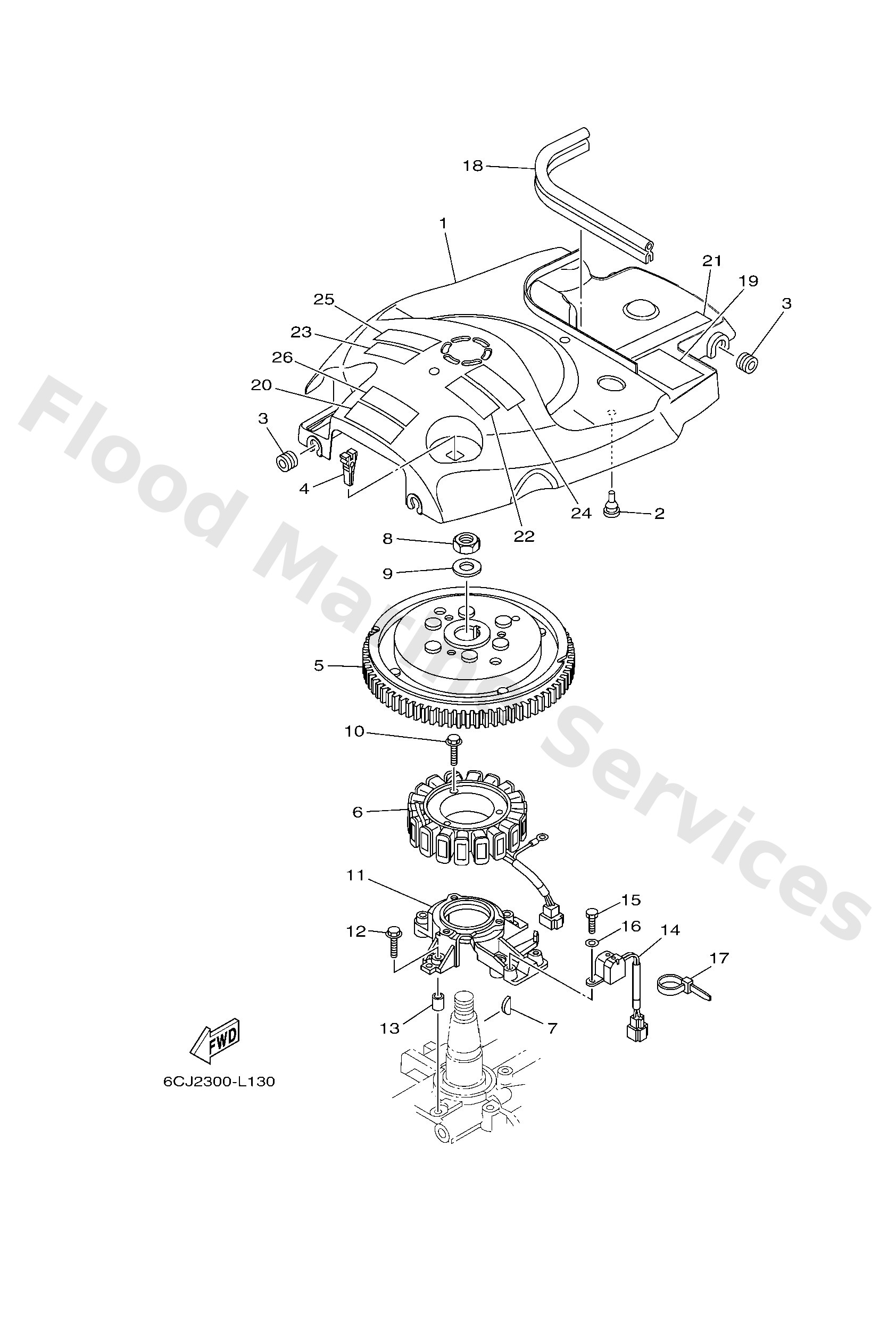

Diagram: GENERATOR

Diagram

Parts List

6CJ8133700
Cover, flywheel with plug
Diagram Reference: 1
Get Part
9048006M19
Grommet (6e3)
Diagram Reference: 2
Get Part
9048012314
Grommet(3aa)
Diagram Reference: 3
Get Part
67F2812A00
Puller, fuse
Diagram Reference: 4
Get Part
6C58145000
Rotor assembly
Diagram Reference: 5
Get Part
6C58141001
Stator assembly
Diagram Reference: 6
Get Part
6H41154500
Key, woodruff
Diagram Reference: 7
Get Part
9017020137
Nut, hexagon(663)
Diagram Reference: 8
Get Part
9020121M18
Washer, plate (663)
Diagram Reference: 9
Get Part
9502306030
Bolt, flange(4as)
Diagram Reference: 10
Get Part
6C58556100
Base, magneto
Diagram Reference: 11
Get Part
9953008012
Pin, dowel(6g8)
Diagram Reference: 13
Get Part
62Y8558000
Coil, pulser
Diagram Reference: 14
Get Part
9709505012
Bolt, hexagon
Diagram Reference: 15
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 16
Get Part
9046513M97
Clamp
Diagram Reference: 17
Get Part
6BG4261700
Damper, form
Diagram Reference: 18
Get Part
62Y8362600
Mark. 6
Diagram Reference: 19
Get Part
6CJ8191900
Graphic, regulator
Diagram Reference: 20
Get Part
6C51343762
Mark, caution
Diagram Reference: 21
Get Part
6AH8199540
Label, warning
Diagram Reference: 22
Get Part
6AH8199550
Label, warning
Diagram Reference: 23
Get Part
6AH8199440
Label, safety
Diagram Reference: 24
Get Part
6AH8199450
Label, safety
Diagram Reference: 25
Get Part
6AG8199600
Mark
Diagram Reference: 26
Get Part
