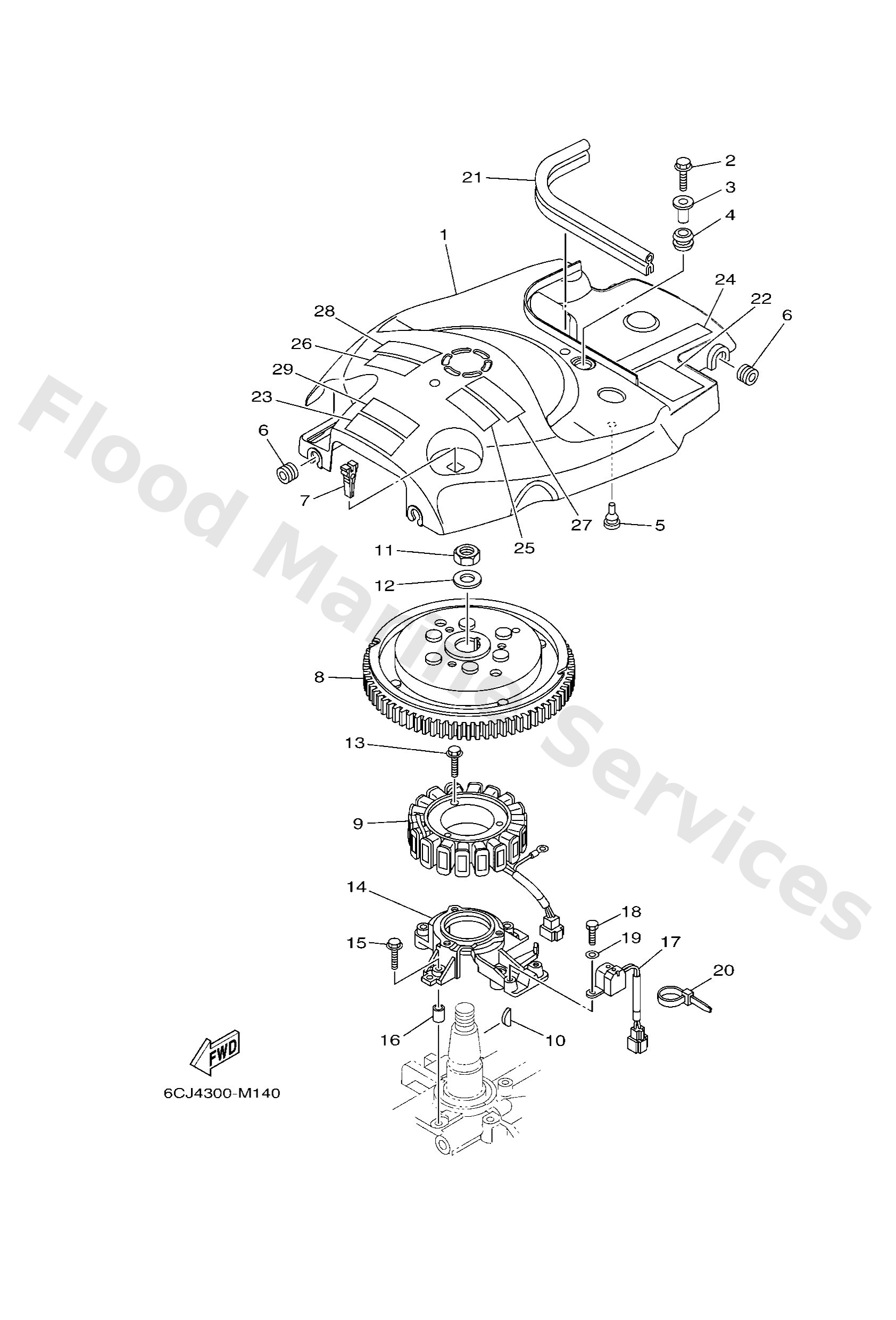

Diagram: GENERATOR
Parts List
Cover, flywheel
Diagram Reference: 1
Bolt, flange(jk3)
Diagram Reference: 2
Collar
Diagram Reference: 3
Grommet (6g1)
Diagram Reference: 4
Grommet (6e3)
Diagram Reference: 5
Grommet(3aa)
Diagram Reference: 6
Puller, fuse
Diagram Reference: 7
Rotor assembly
Diagram Reference: 8
Stator assembly
Diagram Reference: 9
Key, woodruff
Diagram Reference: 10
Nut, hexagon(663)
Diagram Reference: 11
Washer, plate (663)
Diagram Reference: 12
Bolt, flange(4as)
Diagram Reference: 13
Base, magneto
Diagram Reference: 14
Pin, dowel(6g8)
Diagram Reference: 16
Coil, pulser
Diagram Reference: 17
Bolt, hexagon
Diagram Reference: 18
Washer, plain (646)
Diagram Reference: 19
Clamp
Diagram Reference: 20
Damper, form
Diagram Reference: 21
Mark. 6
Diagram Reference: 22
Graphic, regulator
Diagram Reference: 23
Mark, caution
Diagram Reference: 24
Label, warning
Diagram Reference: 25
Label, warning
Diagram Reference: 26
Label, safety
Diagram Reference: 27
Label, safety
Diagram Reference: 28
Mark
Diagram Reference: 29
