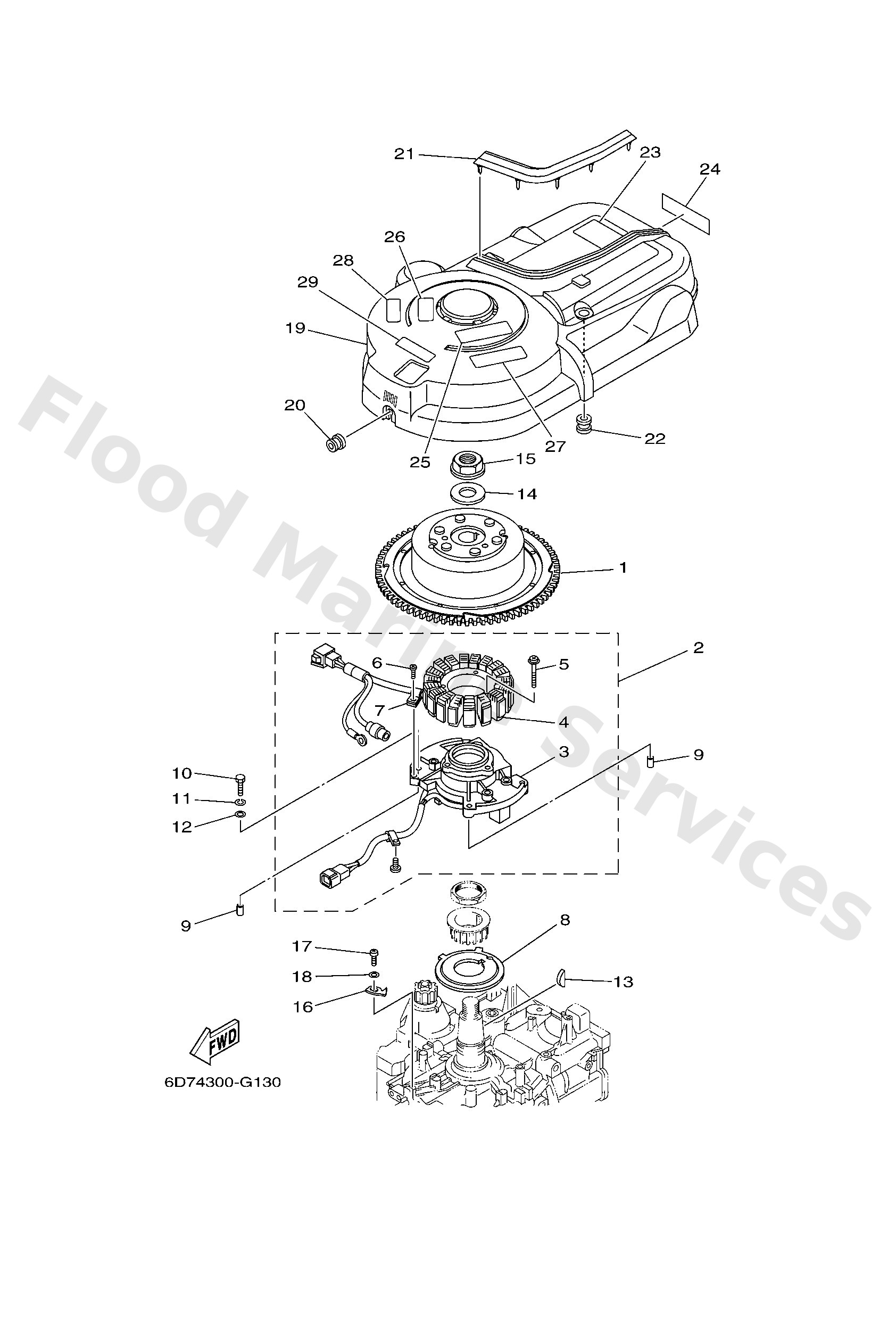

Diagram: GENERATOR

Diagram

Parts List

6D88145000
Rotor assembly
Diagram Reference: 1
Get Part
6D88146000
Base assembly
Diagram Reference: 2
Get Part
6D88558000
Coil, pulser
Diagram Reference: 3
Get Part
6D88141000
Stator assembly
Diagram Reference: 4
Get Part
63D8134520
Screw, pan
Diagram Reference: 5
Get Part
9760704110
Screw, pan head with washer (s
Diagram Reference: 6
Get Part
4458132820
Clamp, read
Diagram Reference: 7
Get Part
68V8167300
Rotor
Diagram Reference: 8
Get Part
9953008012
Pin, dowel(6g8)
Diagram Reference: 9
Get Part
9709506030
Bolt(jf7)
Diagram Reference: 10
Get Part
9299506100
Washer(6a1)
Diagram Reference: 11
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 12
Get Part
9028005015
Key, woodruff
Diagram Reference: 13
Get Part
9020124014
Washer, plate
Diagram Reference: 14
Get Part
9017924002
Nut
Diagram Reference: 15
Get Part
6D88133200
Plate, timing
Diagram Reference: 16
Get Part
9788506010
Screw pan head
Diagram Reference: 17
Get Part
6D88133700
Cover, flywheel
Diagram Reference: 19
Get Part
9048012072
Grommet(53y)
Diagram Reference: 20
Get Part
6D88554700
Damper
Diagram Reference: 21
Get Part
6638231701
Damper, ignition coil
Diagram Reference: 22
Get Part
67F1213860
Mark, Caution
Diagram Reference: 23
Get Part
68V1343762
Mark, caution
Diagram Reference: 24
Get Part
6AH8199540
Label, warning
Diagram Reference: 25
Get Part
6AH8199550
Label, warning
Diagram Reference: 26
Get Part
6AH8199440
Label, safety
Diagram Reference: 27
Get Part
6AH8199450
Label, safety
Diagram Reference: 28
Get Part
6AG8199600
Mark
Diagram Reference: 29
Get Part
