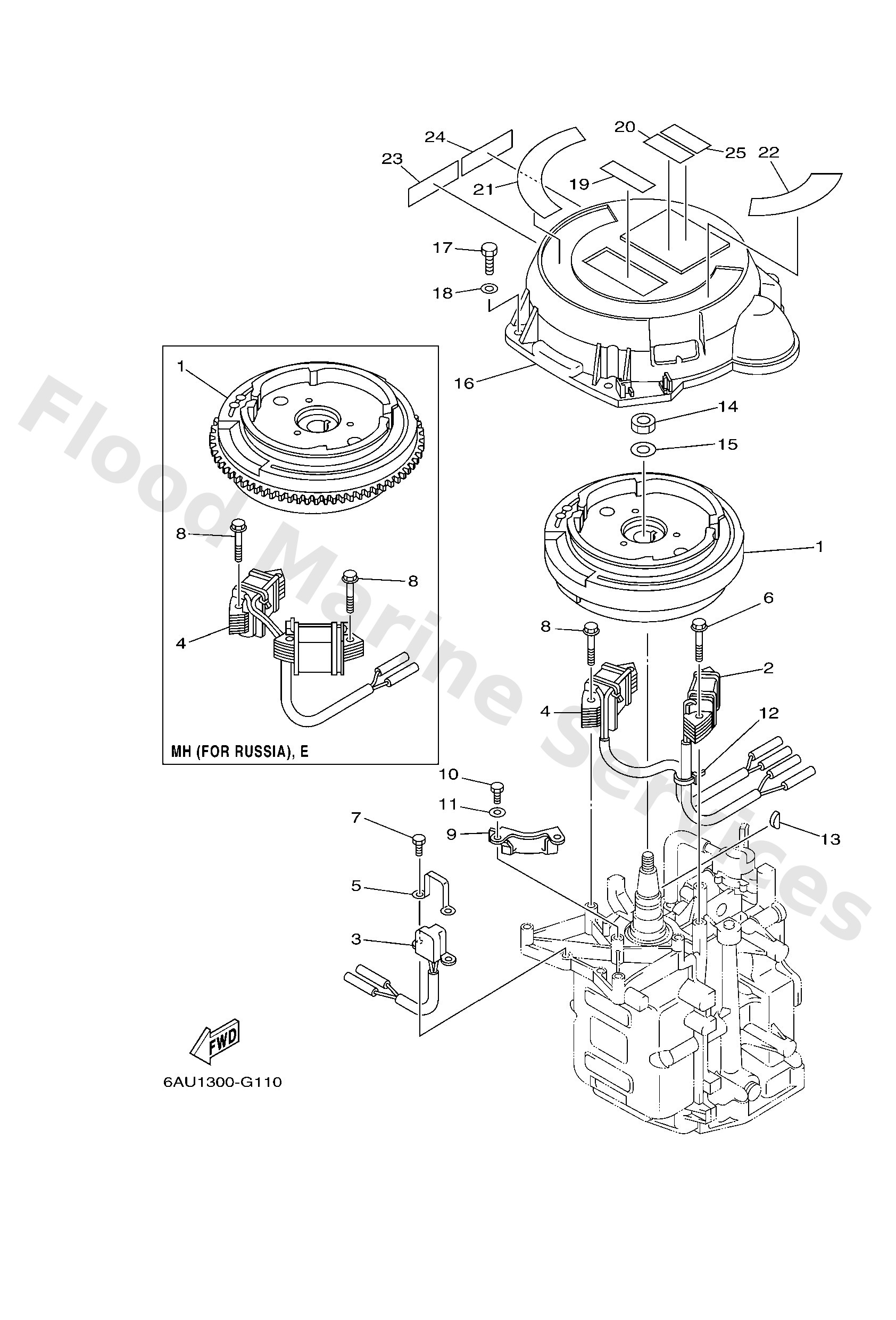

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Rotor assembly
Diagram Reference: 1
Coil, charge
Diagram Reference: 2
Coil, pulser
Diagram Reference: 3
Coil, lighting
Diagram Reference: 4
Coil, lighting
Diagram Reference: 4
Attachment, pulser
Diagram Reference: 5
Bolt, with washer(61b)
Diagram Reference: 6
Bolt (682)
Diagram Reference: 7
Bolt, with washer(63m)
Diagram Reference: 8
Clamp
Diagram Reference: 9
Bolt(gh1)
Diagram Reference: 10
Washer, plain (646)
Diagram Reference: 11
Clamp
Diagram Reference: 12
Key, woodruff(6a1)
Diagram Reference: 13
Nut, hexagon 6481155500
Diagram Reference: 14
Washer, plate (4n0)
Diagram Reference: 15
Cover, flywheel
Diagram Reference: 16
Bolt(7u8)
Diagram Reference: 17
Washer, plain (646)
Diagram Reference: 18
Label, warning
Diagram Reference: 19
Label, warning
Diagram Reference: 20
Mark, caution
Diagram Reference: 21
Mark, caution
Diagram Reference: 22
Label, safety
Diagram Reference: 23
Label, safety
Diagram Reference: 24
Mark
Diagram Reference: 25
