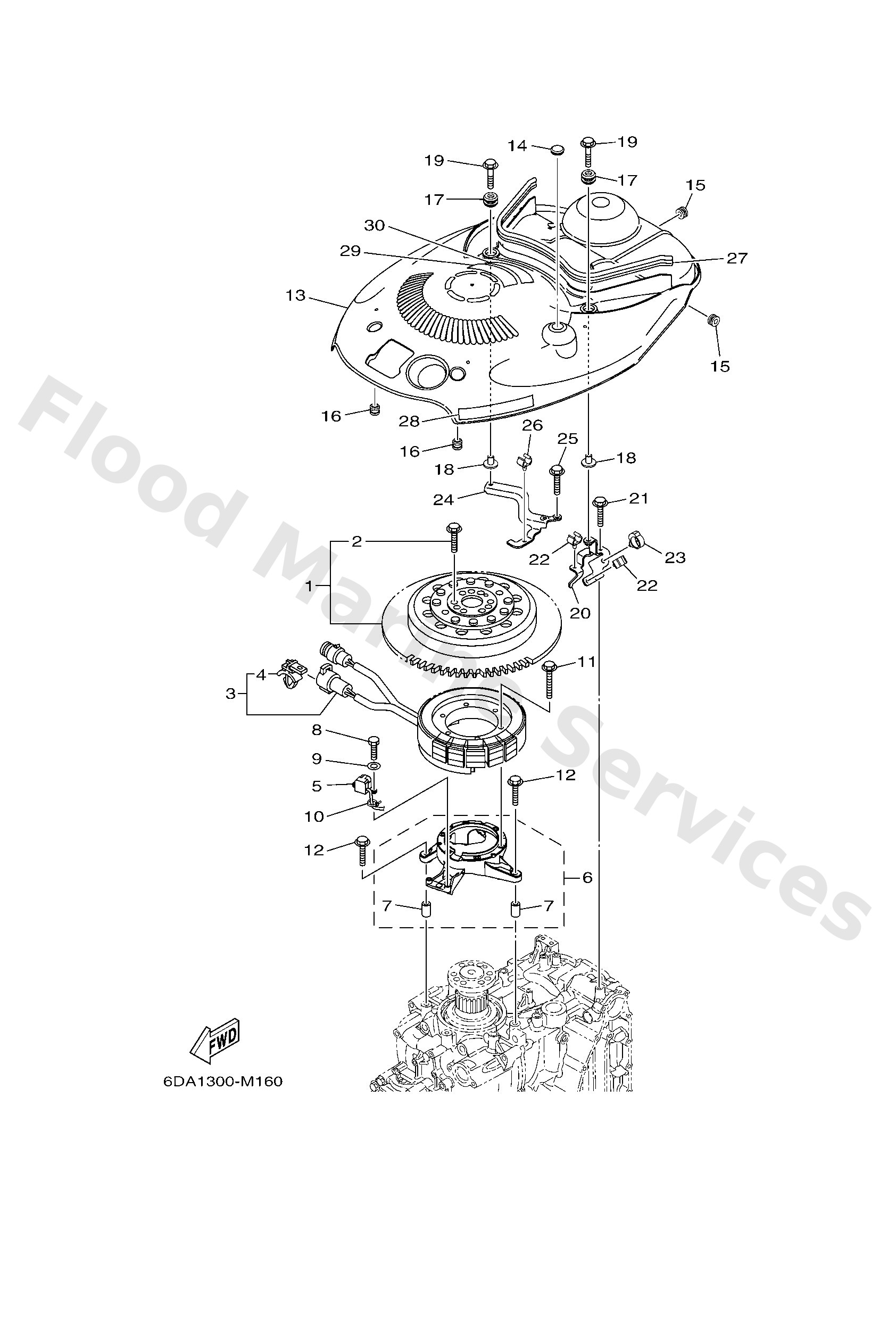

Diagram: GENERATOR

Diagram

Parts List

6DAW814500
Rotor assembly with bolts
Diagram Reference: 1
Get Part
6AWW901100
Bolt set
Diagram Reference: 2
Get Part
6DA8141000
Stator assembly
Diagram Reference: 3
Get Part
9046412002
Clamp
Diagram Reference: 4
Get Part
6CB8558000
Coil, pulser
Diagram Reference: 5
Get Part
6DA8556100
Base, magneto
Diagram Reference: 6
Get Part
9959008012
Pin, dowel
Diagram Reference: 7
Get Part
9709505020
Bolt, hexagon
Diagram Reference: 8
Get Part
9299505600
Washer, plain (646)
Diagram Reference: 9
Get Part
9046513M97
Clamp
Diagram Reference: 10
Get Part
9502206035
Bolt, flange
Diagram Reference: 11
Get Part
9589506030
Bolt, flange deep recess
Diagram Reference: 12
Get Part
6DA8133700
Cover, flywheel
Diagram Reference: 13
Get Part
9048016025
Grommet (715)
Diagram Reference: 14
Get Part
9048012314
Grommet(3aa)
Diagram Reference: 15
Get Part
6A08231700
Damper, ignition coil
Diagram Reference: 16
Get Part
6BG4274800
Grommet
Diagram Reference: 17
Get Part
9038706M69
Collar (688)
Diagram Reference: 18
Get Part
9011906M61
Bolt, with washer
Diagram Reference: 19
Get Part
6DA8132G00
Plate
Diagram Reference: 20
Get Part
9589506016
Bolt, flange deep recess
Diagram Reference: 21
Get Part
9046409130
Clamp(3ld)
Diagram Reference: 22
Get Part
9046420181
Clamp(4ap)
Diagram Reference: 23
Get Part
6DA8239800
Plate 3
Diagram Reference: 24
Get Part
6DA4261700
Damper, form
Diagram Reference: 27
Get Part
63P1343762
Mark, caution
Diagram Reference: 28
Get Part
6AH8199440
Label, safety
Diagram Reference: 29
Get Part
6AH8199450
Label, safety
Diagram Reference: 30
Get Part
