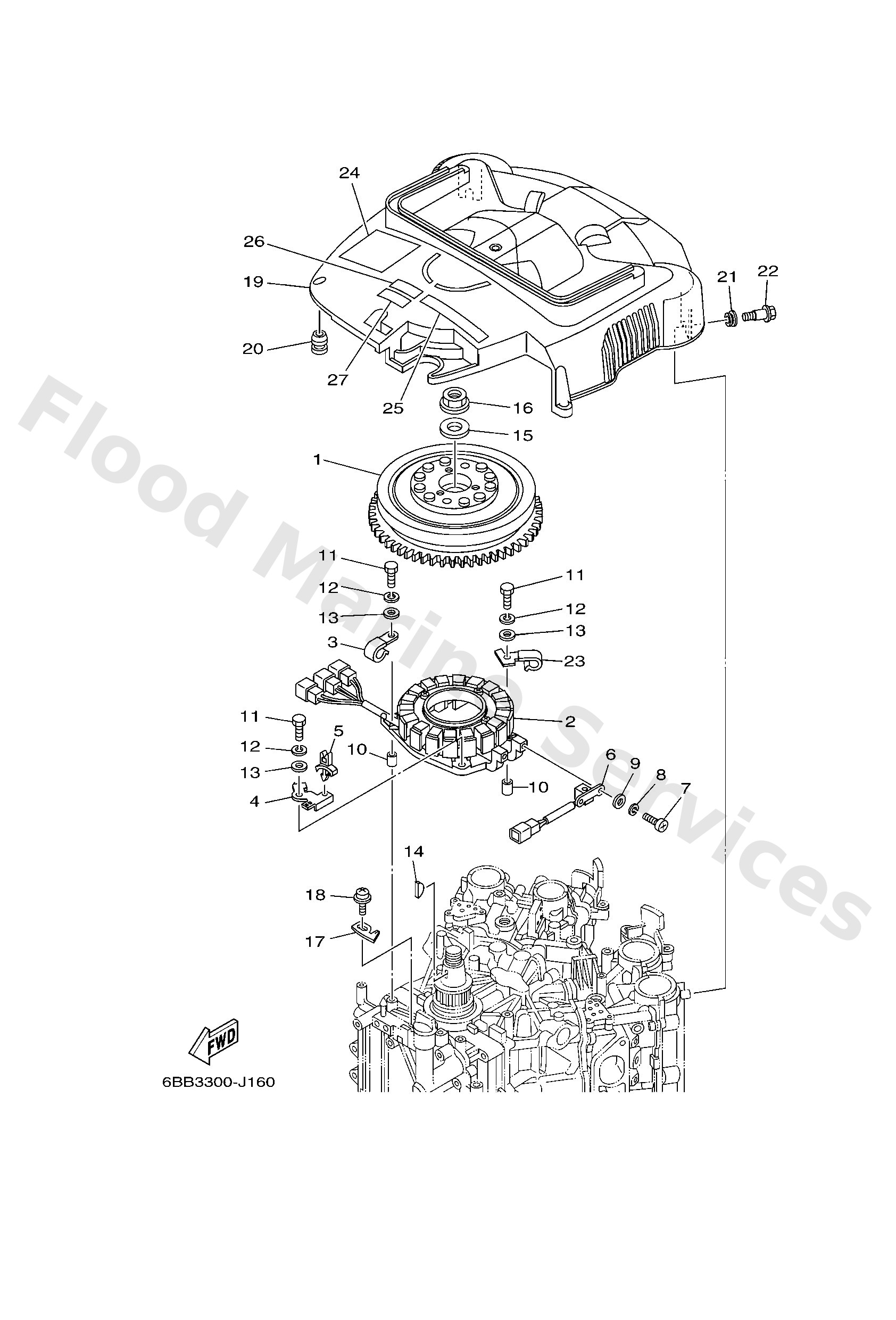

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Base assembly
Diagram Reference: 2
Clamp
Diagram Reference: 3
Plate, connector
Diagram Reference: 4
Clamp
Diagram Reference: 5
Coil, pulser
Diagram Reference: 6
Screw, Pan Head
Diagram Reference: 7
Washer, Spring
Diagram Reference: 8
Washer, Plate
Diagram Reference: 9
Pin, Dowel
Diagram Reference: 10
Bolt
Diagram Reference: 11
Washer, Spring
Diagram Reference: 12
Nut
Diagram Reference: 16
Screw, With Washer
Diagram Reference: 18
Cover, flywheel
Diagram Reference: 19
Damper, Ignition Coil
Diagram Reference: 20
Grommet
Diagram Reference: 21
Clamp
Diagram Reference: 23
Graphic, regulator
Diagram Reference: 24
Mark, caution
Diagram Reference: 25
Label, Safety
Diagram Reference: 26
Label, Safety
Diagram Reference: 27
