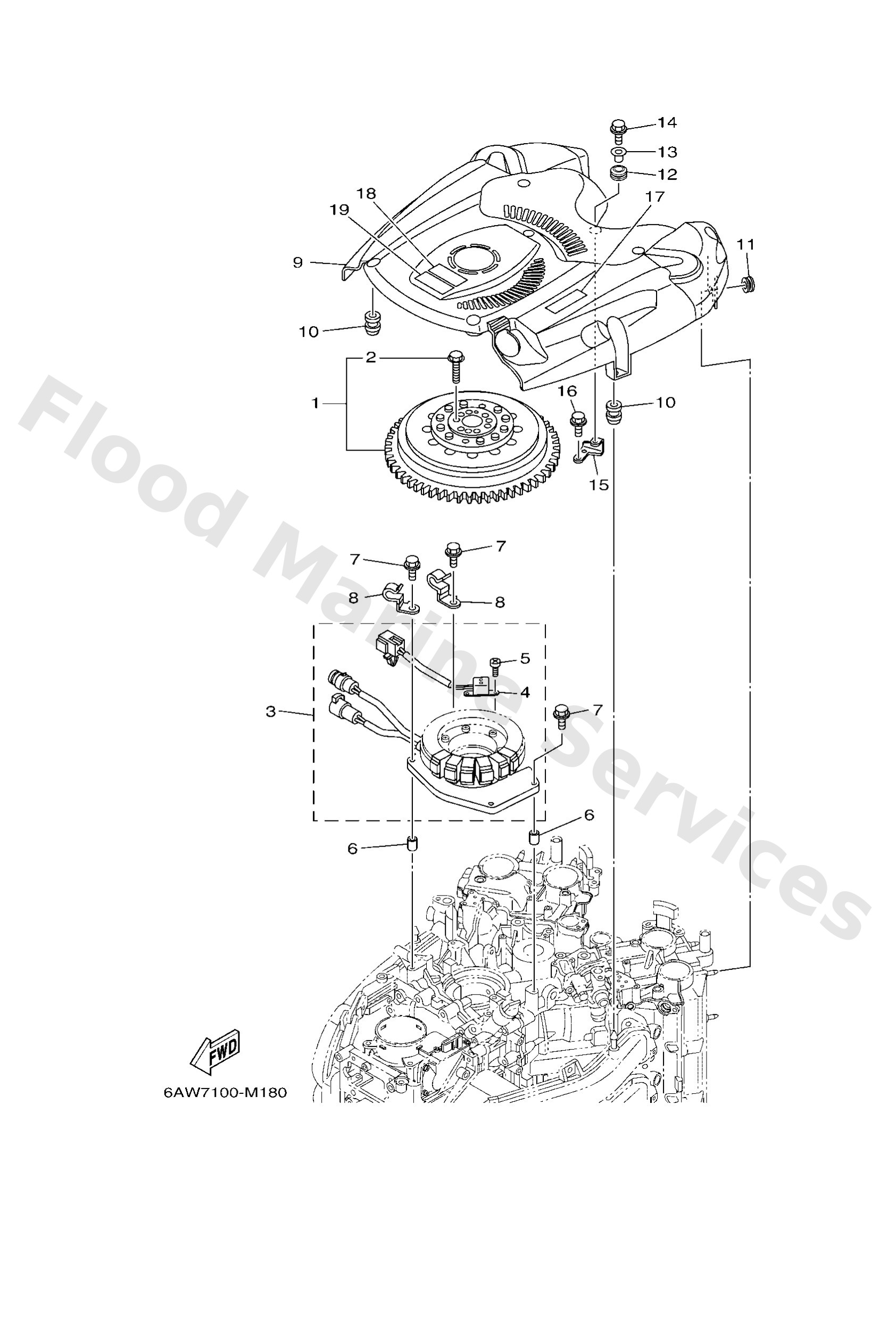

Diagram: GENERATOR

Diagram

Parts List

6AWW814501
F350 rotor kit
Diagram Reference: 1
Get Part
6AWW901100
Bolt set
Diagram Reference: 2
Get Part
6AW8146000
Base assembly
Diagram Reference: 3
Get Part
6AW8558000
Coil, pulser
Diagram Reference: 4
Get Part
63D8134500
Screw, pan
Diagram Reference: 5
Get Part
9953008012
Pin, dowel(6g8)
Diagram Reference: 6
Get Part
9759506630
Bolt, hexagon w/w deep recess
Diagram Reference: 7
Get Part
9046210042
Clamp
Diagram Reference: 8
Get Part
6AW8133702
Cover, flywheel
Diagram Reference: 9
Get Part
6638231701
Damper, ignition coil
Diagram Reference: 10
Get Part
9048012314
Grommet(3aa)
Diagram Reference: 11
Get Part
9048015M31
Grommet (6g1)
Diagram Reference: 12
Get Part
9038706285
Collar
Diagram Reference: 13
Get Part
9589506020
Bolt, flange(jk3)
Diagram Reference: 14
Get Part
6AW8132G00
Plate
Diagram Reference: 15
Get Part
9757506514
Bolt, hexagon w/w deep recess
Diagram Reference: 16
Get Part
6AW1343761
Mark, caution
Diagram Reference: 17
Get Part
6AH8199440
Label, safety
Diagram Reference: 18
Get Part
6AH8199450
Label, safety
Diagram Reference: 19
