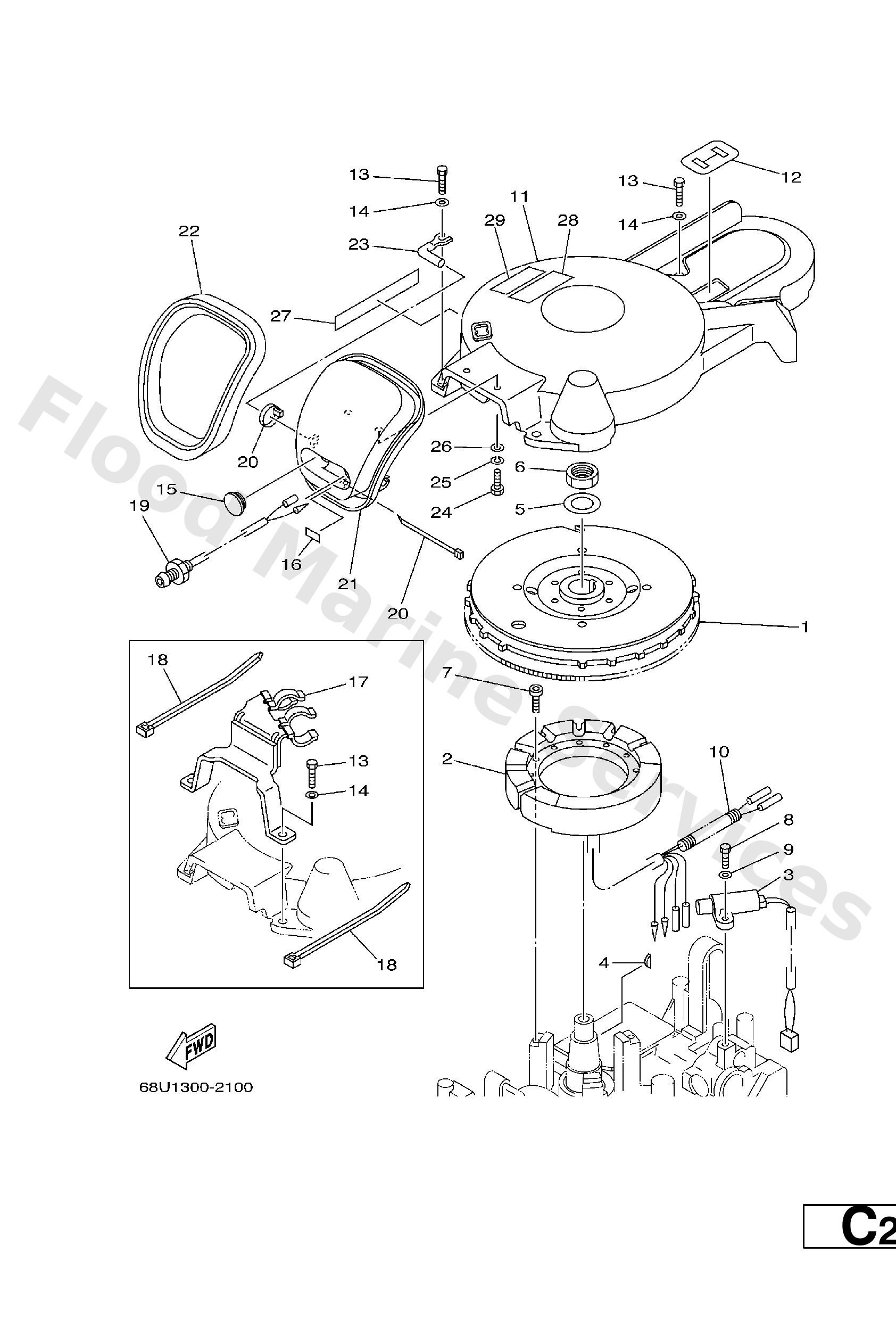

Diagram: GENERATOR

Diagram

Parts List

65W−85550−01
Rotor assembly
Diagram Reference: 1
Get Part
65W−85510−10
Stator assembly
Diagram Reference: 2
Get Part
65W−85580−00
Coil, pulser
Diagram Reference: 3
Get Part
65W−11545−00
Key, woodruff
Diagram Reference: 4
Get Part
90201−21M18
Washer, plate (663)
Diagram Reference: 5
Get Part
90170−20137
Nut, hexagon(663)
Diagram Reference: 6
Get Part
91380−05030
Bolt,socket
Diagram Reference: 7
Get Part
97095−05016
Bolt(6a1)
Diagram Reference: 8
Get Part
92995−05600
Washer, plain (646)
Diagram Reference: 9
Get Part
90446−10M82
Hose
Diagram Reference: 10
Get Part
65W−81337−00
Cover, Flywheel
Diagram Reference: 11
Get Part
65W−81639−00
Plate, Armature Fitting
Diagram Reference: 12
Get Part
97095−06025
Bolt
Diagram Reference: 13
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 14
Get Part
6G1−42725−00
Grommet
Diagram Reference: 15
Get Part
65W−84342−00
Seat, emblem
Diagram Reference: 16
Get Part
65W−82594−10
Clamp
Diagram Reference: 17
Get Part
90465−13M18
Clamp
Diagram Reference: 18
Get Part
65W−85410−01
Emergency signal light assembly
Diagram Reference: 19
Get Part
90465−11M10
Clamp
Diagram Reference: 20
Get Part
65W−15758−10
Guide, Rope
Diagram Reference: 21
Get Part
65W−15762−00
Seal, rubber 2
Diagram Reference: 22
Get Part
65W−15771−00
Stay 1
Diagram Reference: 23
Get Part
97095−06020
Bolt(7u8)
Diagram Reference: 24
Get Part
92995−06100
Washer(6a1)
Diagram Reference: 25
Get Part
65W−13437−61
Mark, Caution
Diagram Reference: 27
Get Part
6A1−83625−41
Mark 5
Diagram Reference: 28
Get Part
6A1−83625−51
Mark 5
Diagram Reference: 29
Get Part
