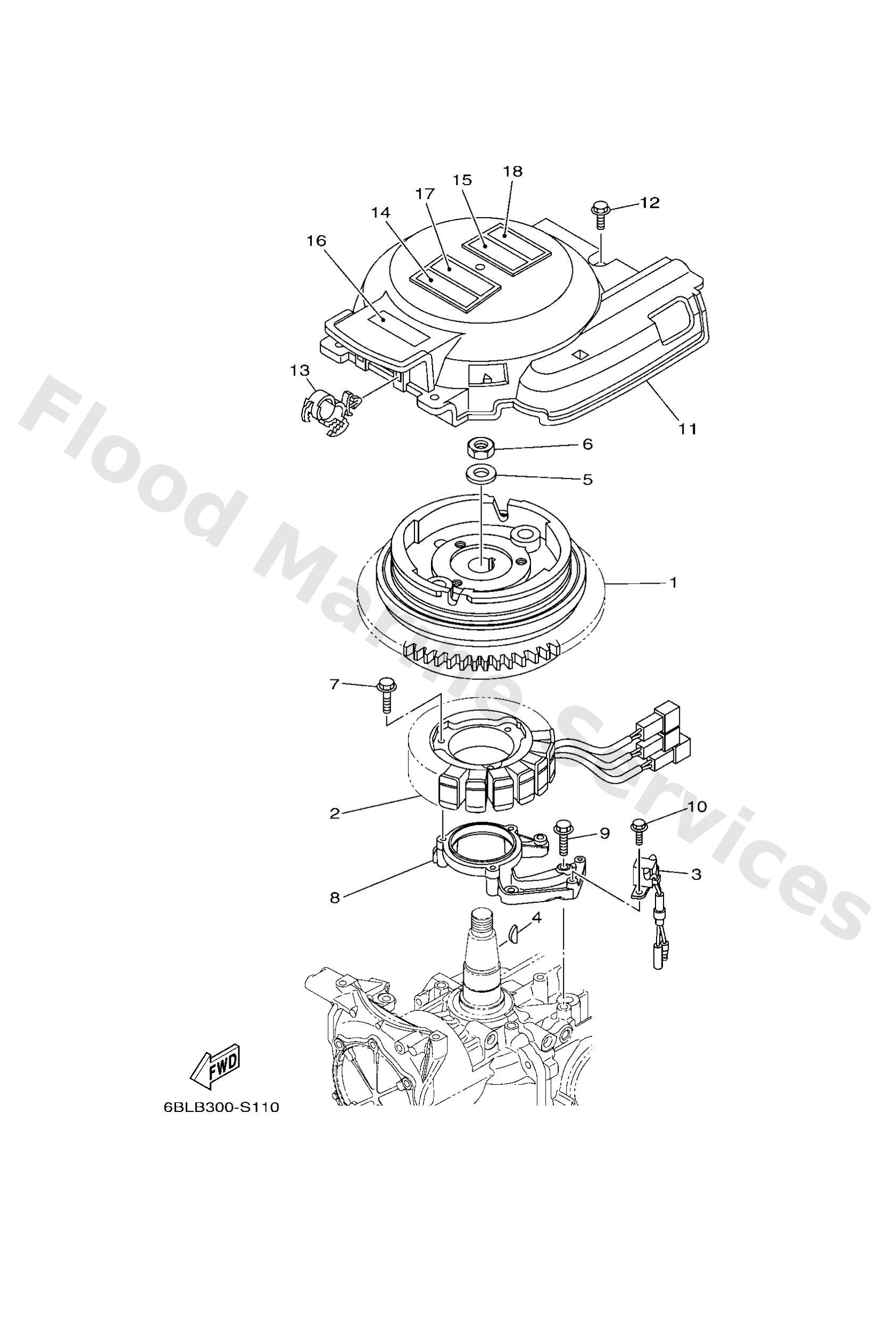

Diagram: GENERATOR

Diagram

Parts List

6BL8555000
Rotor assembly
Diagram Reference: 1
Get Part
6BL8551000
Stator assembly
Diagram Reference: 2
Get Part
6AH8558000
Coil, pulser
Diagram Reference: 3
Get Part
6H41154500
Key, woodruff
Diagram Reference: 4
Get Part
9020121M18
Washer, plate (663)
Diagram Reference: 5
Get Part
9017020137
Nut, hexagon(663)
Diagram Reference: 6
Get Part
9502306030
Bolt, flange(4as)
Diagram Reference: 7
Get Part
6BG8556100
Base, magneto
Diagram Reference: 8
Get Part
9502306025
Bolt, flange(4kg)
Diagram Reference: 9
Get Part
9759505516
Bolt, with washer
Diagram Reference: 10
Get Part
6BL8133700
Cover, flywheel
Diagram Reference: 11
Get Part
97E9506520
Bolt, hexagon w/w deep recess
Diagram Reference: 12
Get Part
9046412183
Clamp(jn2)
Diagram Reference: 13
Get Part
6EE8199440
Label, safety
Diagram Reference: 14
Get Part
6EE8199540
Label, warning
Diagram Reference: 15
Get Part
6AG8199600
Mark
Diagram Reference: 16
Get Part
6EE8199450
Label, safety
Diagram Reference: 17
Get Part
6EE8199550
Label, warning
Diagram Reference: 18
Get Part
