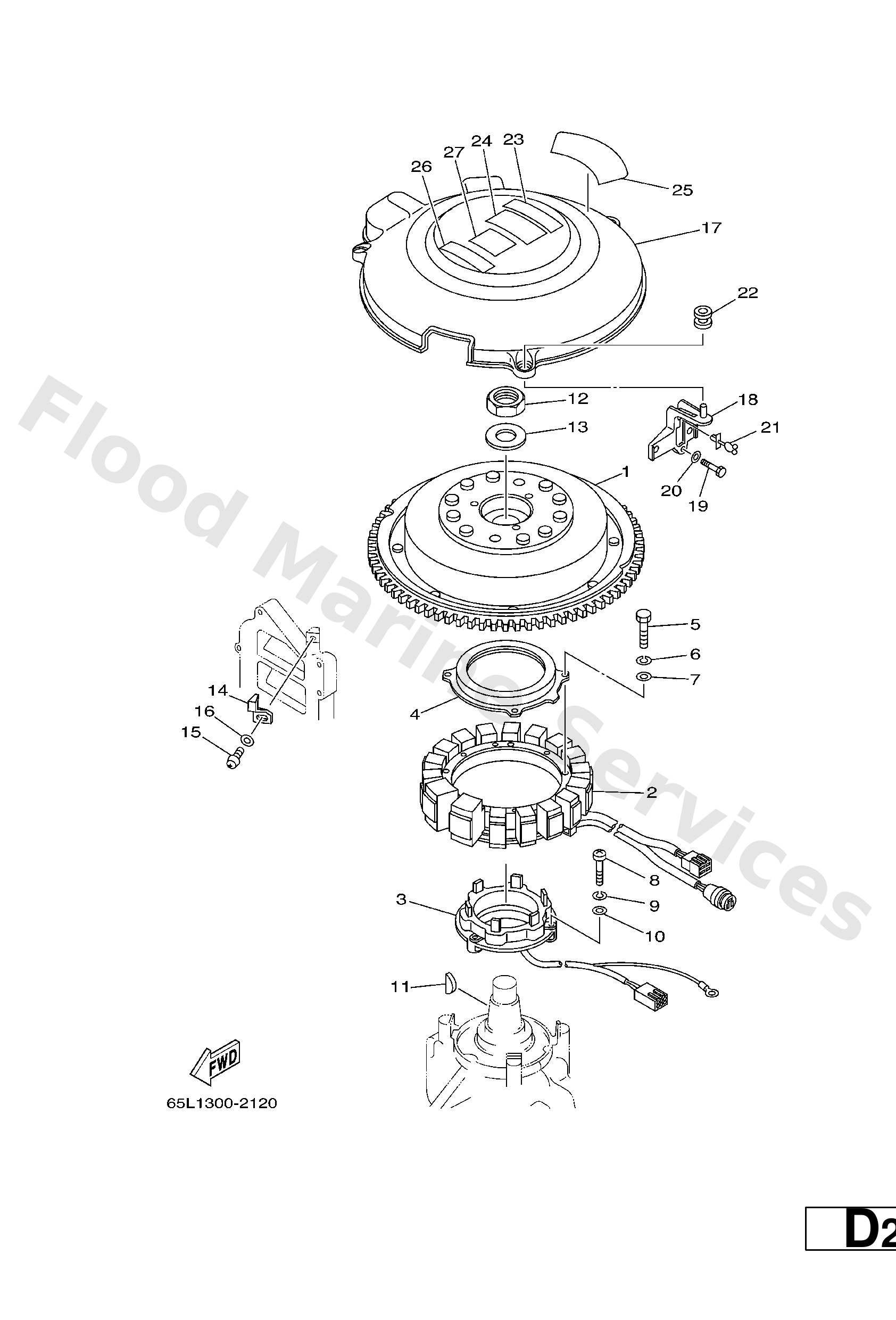

Diagram: GENERATOR
Parts List
Rotor assembly
Diagram Reference: 1
Stator assembly
Diagram Reference: 2
Coil, pulser
Diagram Reference: 3
Cover
Diagram Reference: 4
Bolt(3rv)
Diagram Reference: 5
Washer(6a1)
Diagram Reference: 6
Washer, plain (646)
Diagram Reference: 7
Ybs86-530 screw,panhead
Diagram Reference: 8
Ybs67-5 washer, spring
Diagram Reference: 9
Washer, plain (646)
Diagram Reference: 10
Key, woodruff
Diagram Reference: 11
Nut(61a)
Diagram Reference: 12
Washer, plate(61a)
Diagram Reference: 13
Plate, timing
Diagram Reference: 14
Screw pan head
Diagram Reference: 15
Washer, plain (646)
Diagram Reference: 16
Cover, flywheel
Diagram Reference: 17
Clamp, Lead
Diagram Reference: 18
Bolt(62y)
Diagram Reference: 19
Clamp(65j)
Diagram Reference: 21
Damper, ignition coil
Diagram Reference: 22
Mark 5
Diagram Reference: 23
Mark 5
Diagram Reference: 24
Label, Caution
Diagram Reference: 25
Mark 3
Diagram Reference: 26
Mark 3
