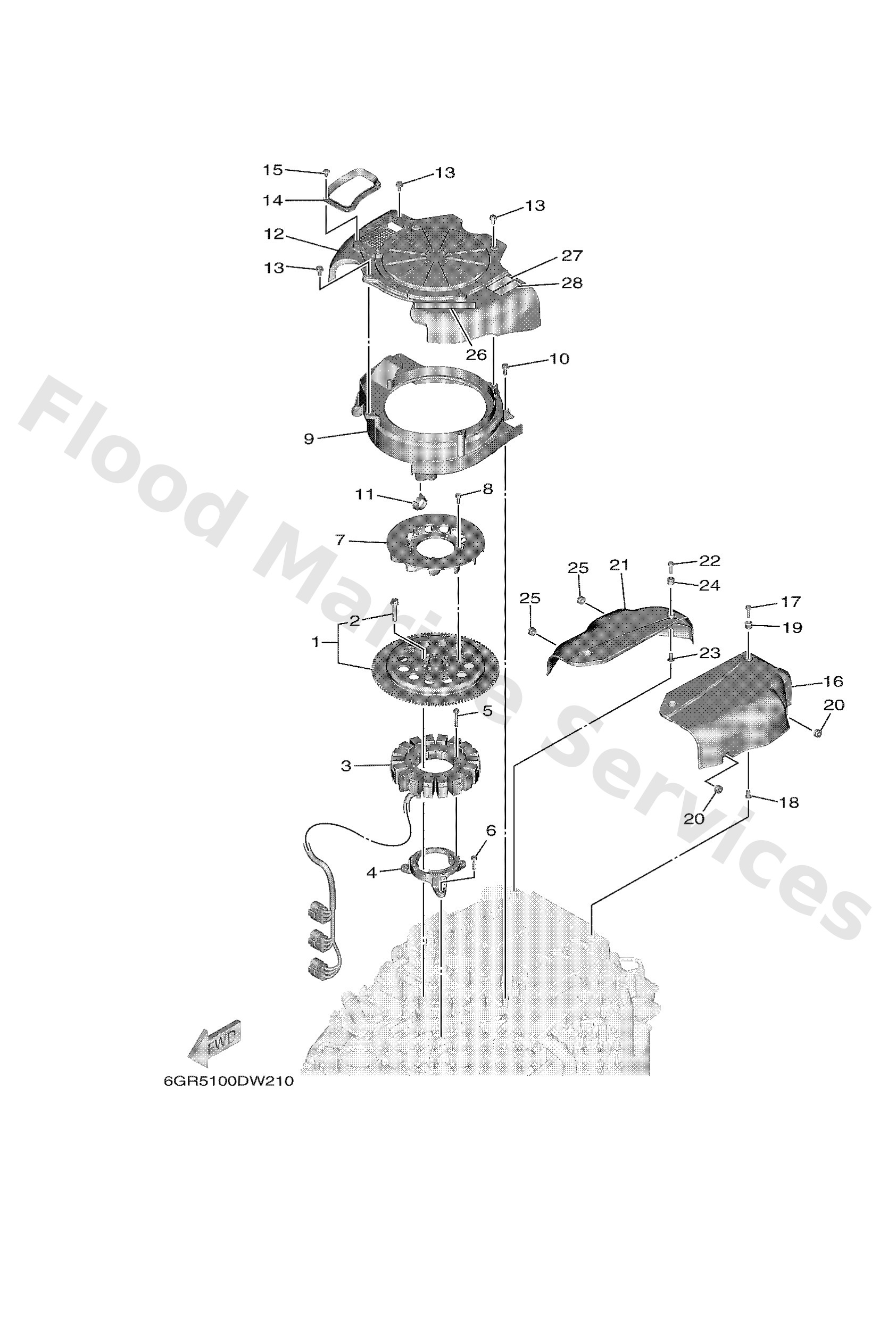

Diagram: GENERATOR

Diagram

Parts List

6KNW814500
Rotor assembly with bolts
Diagram Reference: 1
Get Part
6EKW901000
Bolt set
Diagram Reference: 2
Get Part
6GR8141000
Stator assembly
Diagram Reference: 3
Get Part
6GR8556101
Base, magneto
Diagram Reference: 4
Get Part
9502206035
Bolt, flange
Diagram Reference: 5
Get Part
95D9506030
Bolt, flange deep recess
Diagram Reference: 6
Get Part
6GR8558601
Fan
Diagram Reference: 7
Get Part
97E9506516
Bolt, hexagon w/w deep recess
Diagram Reference: 8
Get Part
6GR1265100
Air shroud, cylinder 1
Diagram Reference: 9
Get Part
95D9506016
Bolt, flange deep recess
Diagram Reference: 10
Get Part
9046412183
Clamp(jn2)
Diagram Reference: 11
Get Part
6GR1265301
Air shroud, cylinder 3
Diagram Reference: 12
Get Part
95D9506012
Bolt, flange deep recess
Diagram Reference: 13
Get Part
6GR1265900
Damper, air shroud 2
Diagram Reference: 14
Get Part
9033805M03
Plug (6h1)
Diagram Reference: 15
Get Part
6GR8194201
Cover
Diagram Reference: 16
Get Part
95D9506025
Bolt, flange deep recess
Diagram Reference: 17
Get Part
9038706119
Collar
Diagram Reference: 18
Get Part
6A08231701
Damper, ignition coil
Diagram Reference: 19
Get Part
9048012314
Grommet(3aa)
Diagram Reference: 20
Get Part
6GR8163901
Cover
Diagram Reference: 21
Get Part
6GR1343761
Mark, caution
Diagram Reference: 26
Get Part
6EE8199440
Label, safety
Diagram Reference: 27
Get Part
6EE8199450
Label, safety
Diagram Reference: 28
Get Part
