INTHDP/HDL (2014)
GIMBAL HOUSING 2

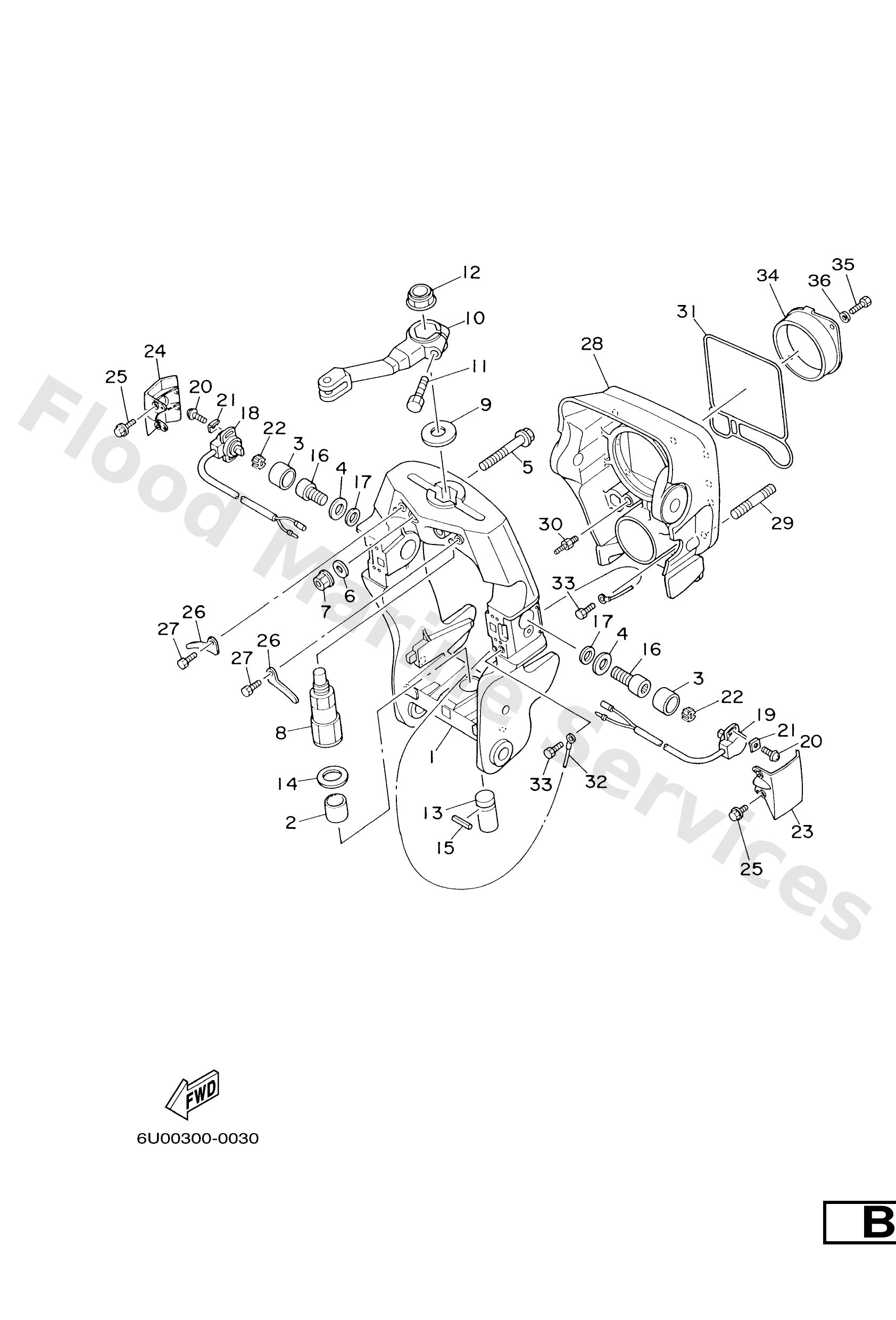

Diagram: GIMBAL HOUSING 2
Parts List
Reference
Description
Price
2
9038625M90
Bush(6u0)
Loading…
↗
3
9038625M91
Bush(6u0)
Loading…
↗
4
9020228M50
Washer, plate(6u0)
Loading…
↗
5
9011910M44
Bolt, with washer
Loading…
↗
6
9299010600
Washer, plate
Loading…
↗
7
9578010300
Nut, nylon (6e5)
Loading…
↗
8
6U04252100
Shaft, steering pivot
Loading…
↗
9
9020132M02
Washer, plate(6u0)
Loading…
↗
11
9010910M56
Bolt(6u0)
Loading…
↗
12
9018520M08
Nut, self-locking(6u0)
Loading…
↗
13
6U04252200
Shaft, steering pivot 2
Loading…
↗
14
9020126M01
Washer, plate(6t4)
Loading…
↗
15
9169040040
Pin, spring (663)
Loading…
↗
16
6U04314300
Bolt
Loading…
↗
16
6U04314301
Bolt
Loading…
↗
17
9020117M01
Washer, plate(6u0)
Loading…
↗
18
6U08367200
STANPED 6U0-00
Trim sender (std tilt)
Loading…
↗
19
6T48259G00
Switch, trim limit
Loading…
↗
20
9015905M13
Screw, with washer(6t4)
Loading…
↗
21
9020905M18
Washer(6t4)
Loading…
↗
22
6U08367402
Coupler, sender
Loading…
↗
25
9011906M97
Bolt, hexagon w/w deep recess
Loading…
↗
26
9046512M45
Clamp(6u0)
Loading…
↗
27
9010106M02
Bolt
Loading…
↗
29
9011612M47
Bolt, stud(6u0)
Loading…
↗
30
6E54537800
Nipple, hose
Loading…
↗
31
6U04511300
Gasket, upper casing
Loading…
↗
32
6T48212700
Wire, lead 5
Loading…
↗
33
9709506010
Bolt
Loading…
↗
34
6U04586800
Retainer, bellows
Loading…
↗
35
9709006010
Bolt
Loading…
↗
36
9299006600
Washer, plain (646)
Loading…
↗
