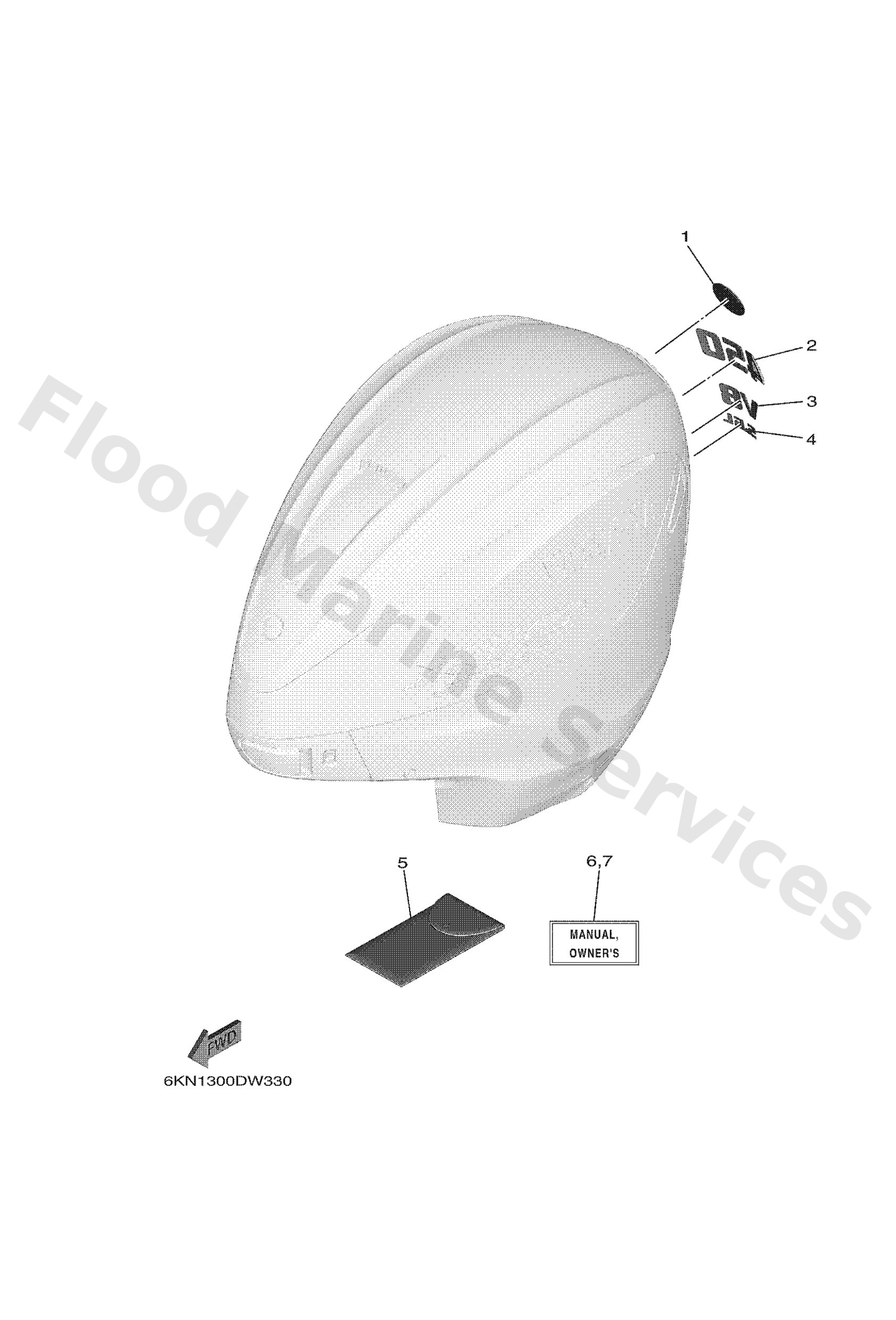

Diagram: GRAPHIC & TOOL

Diagram

Parts List

6KN4269700

Tuning fork mark

Diagram Reference: 1

6KN4267A00

Graphic, rear 2

Diagram Reference: 2

6LB4267A00

Graphic, rear 2

Diagram Reference: 2

6GR4267800

Graphic, rear

Diagram Reference: 3

6GR4268200

Mark, cowling

Diagram Reference: 4

6GR2810011

Tool kit

Diagram Reference: 5

6KN2819972G0 (UR (D))

-

Diagram Reference: 6

6KN2819972H0 (UR (I))

-

Diagram Reference: 6

6KN2819972D0 (UR (NL))

-

Diagram Reference: 6

6KN2819972S0 (UR (ES))

-

Diagram Reference: 6

6KN2819972F0 (UR (F))

-

Diagram Reference: 6

6KN2819972E0 (UR (E))

-

Diagram Reference: 6

6KN2819982K0 (UR (DK))

-

Diagram Reference: 7

6KN2819982R0 (UR (GR))

-

Diagram Reference: 7

6KN2819982P0 (UR (P))

-

Diagram Reference: 7

6KN2819982N0 (UR (N))

-

Diagram Reference: 7

6KN2819982M0 (UR (S))

-

Diagram Reference: 7

6KN2819982L0 (UR (SF))

-

Diagram Reference: 7
