E8DMH (1999)
Generator

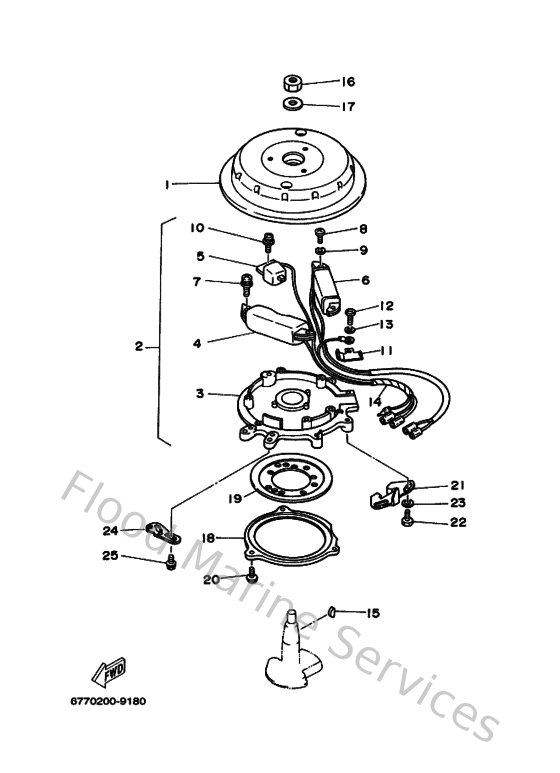

Diagram: Generator
Parts List
Reference
Description
Price
1
6G1855507100
Rotor assembly
Loading…
↗
2
6K3855604000
Base assembly
Loading…
↗
3
6K3855097000
Base, Magneto
Loading…
↗
4
6E7855207000
Coil assembly
Loading…
↗
5
6E7855807000
Pulser coil ass'y
Loading…
↗
6
6E7813034000
Lighting Coil Ass'y
Loading…
↗
7
985070502500
Screw, pan head(4my)
Loading…
↗
8
985110502000
Screw, pan head
Loading…
↗
9
929900510000
Ybs67-5 washer, spring
Loading…
↗
10
985070501600
Screw, pan head(jj6)
Loading…
↗
11
6G1855487000
Cord, clamp
Loading…
↗
12
985800400800
Screw, pan head (713)
Loading…
↗
13
929900410000
Ybs67-4 washer, spring
Loading…
↗
14
6G1855157000
Wire, lead
Loading…
↗
15
9028004M0600
Key, woodruff(6a1)
Loading…
↗
16
901701011300
Nut, crank shaft (650)
Loading…
↗
17
90201102G900
Washer, plate (26h)
Loading…
↗
18
677416110094
Retainer, magneto base 1
Loading…
↗
19
677416120000
Retainer, magneto base 2
Loading…
↗
20
979850521000
Screw, With Washer
Loading…
↗
21
677416151000
Stopper, Magneto Base
Loading…
↗
22
970950601600
Bolt, hexagon deep recess
Loading…
↗
23
929900660000
Washer, plain (646)
Loading…
↗
24
677412130094
Cam, Accel
Loading…
↗
25
975950521400
Bolt, With Washer
Loading…
↗
