115BETO (1997)
Generatrice

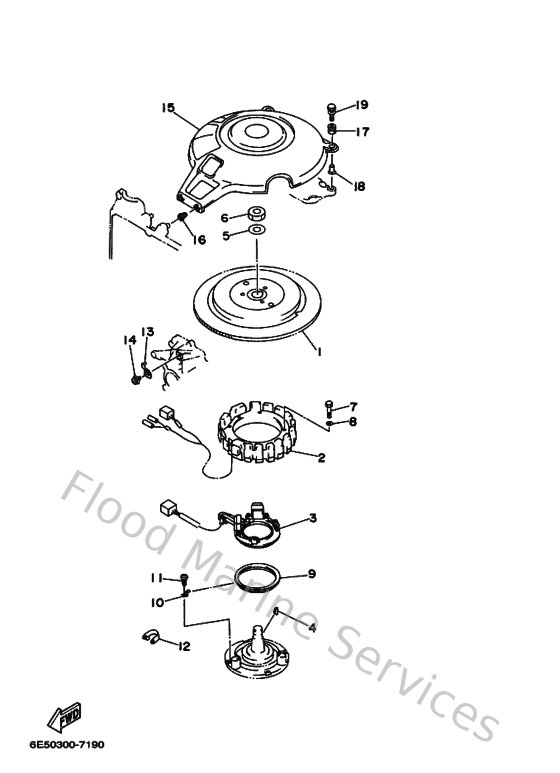

Diagram: Generatrice
Parts List
Reference
Description
Price
1
6E5855500000
Rotor assembly
Loading…
↗
2
6E5855100000
Stator assembly
Loading…
↗
3
6E5855800000
Coil, pulser
Loading…
↗
4
902800504900
Key, woodruff (12r)
Loading…
↗
5
9020121M1800
Washer, plate (663)
Loading…
↗
6
901702013700
Nut, hexagon(663)
Loading…
↗
7
970130606000
Bolt, hexagon
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
688416110000
Retainer, magneto base 1
Loading…
↗
10
688416120000
Retainer, magneto base 2
Loading…
↗
11
978800601800
Screw, pan head(6e5)
Loading…
↗
13
6E5813320000
Plate, timing
Loading…
↗
14
979850621000
Screw pan head
Loading…
↗
15
6E5813370100
Cover, flywheel
Loading…
↗
16
6G5823170000
Damper
Loading…
↗
17
6A0823170000
Damper, ignition coil
Loading…
↗
18
624425420000
Collar
Loading…
↗
19
9011906M5900
Bolt, with washer
Loading…
↗
