55BM (1995)
Generatrice

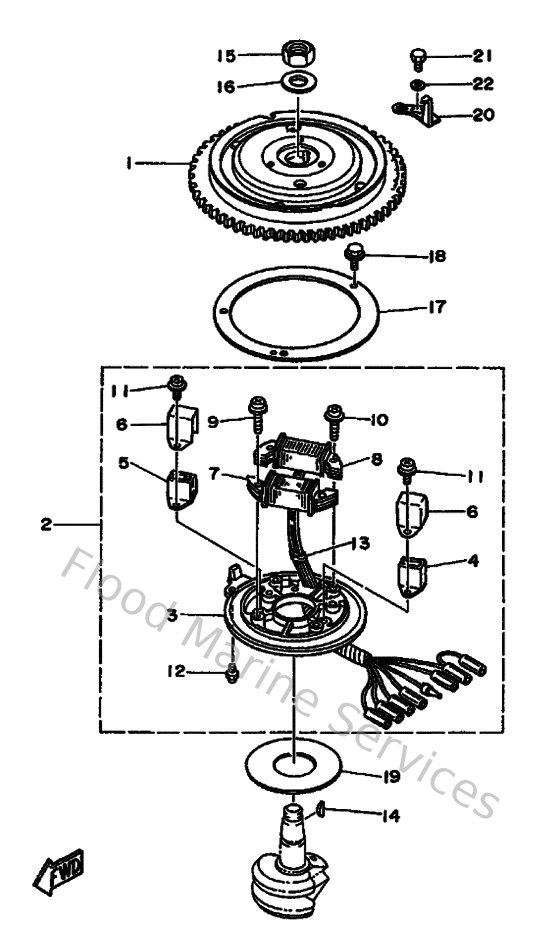

Diagram: Generatrice
Parts List
Reference
Description
Price
1
697855500000
Rotor assembly
Loading…
↗
2
697855600000
Base assembly
Loading…
↗
3
697855610000
Base, magneto
Loading…
↗
4
697855800000
Coil, pulser
Loading…
↗
7
697855200200
Coil, charge
Loading…
↗
8
697855330000
Coil, lighting
Loading…
↗
9
985070503000
Screw, pan head
Loading…
↗
11
976020511400
Screw, pan head with washer
Loading…
↗
12
663855180000
Joint, ball
Loading…
↗
13
904800615800
Grommet (663)
Loading…
↗
14
902800504900
Key, woodruff (12r)
Loading…
↗
15
901702013700
Nut, hexagon(663)
Loading…
↗
16
9020121M1800
Washer, plate (663)
Loading…
↗
17
663416120000
Retainer, magneto base 2
Loading…
↗
18
970800602000
Bolt(7u8)
Loading…
↗
19
663416190000
Washer, magneto 2
Loading…
↗
20
697813320000
Plate, timing
Loading…
↗
21
970950601600
Bolt, hexagon deep recess
Loading…
↗
22
929900660000
Washer, plain (646)
Loading…
↗
