Yamaha Outboard Parts - HARNESS (TRIPLE) - Helm Master Joystick Controller System (2014)

6ES8259020

Center Hcu Harness

Diagram Reference: 1

6ES8259000

Helm "T" Harness (Triple)

Diagram Reference: 2

6ES82590A0

Helm Adapter Harness (Triple)

Diagram Reference: 3

6ES8258A80 (*2)

T harness, 2nd station

Diagram Reference: 4

6ES8559030 (*1 ASK TO MARINE DIV)

Pcu for triple, port side

Diagram Reference: 5

6ES8559040 (*1 ASK TO MARINE DIV)

Pcu for triple, stbd side

Diagram Reference: 6

6ES8559050 (*1 ASK TO MARINE DIV)

Pcu (Triple/Center)

Diagram Reference: 7

6ES8258A00 (*1)

Pcu Harness

Diagram Reference: 8

6ES8258200

Cap 1

Diagram Reference: 9

6ES8258500

Cap 2

Diagram Reference: 10

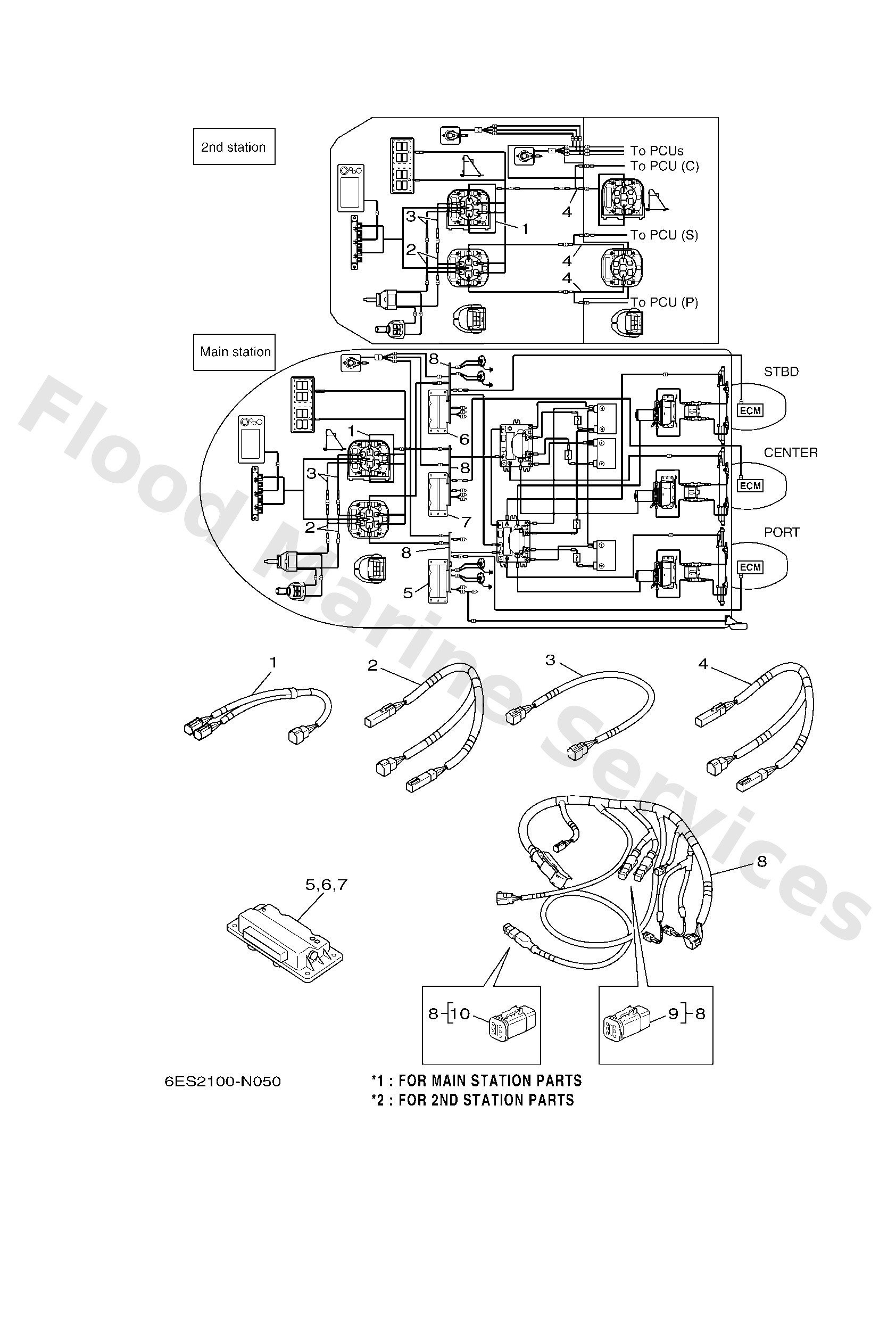

Diagram: HARNESS (TRIPLE)
