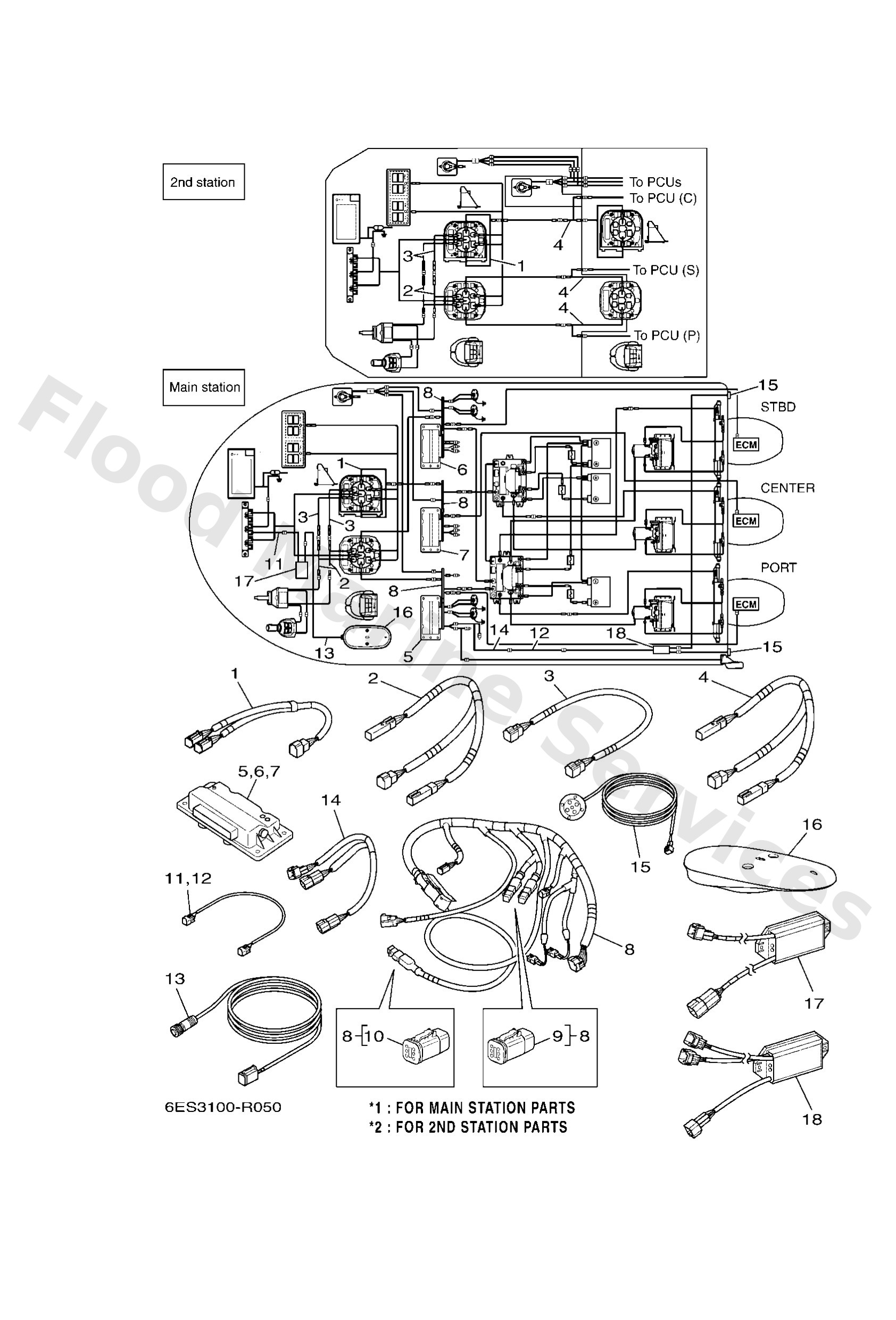

Diagram: HARNESS (TRIPLE)

Diagram

Parts List

6ES8259020

Center Hcu Harness

Diagram Reference: 1

6ES8259000

Helm "T" Harness (Triple)

Diagram Reference: 2

6ES82590A0

Helm Adapter Harness (Triple)

Diagram Reference: 3

6ES8258A80 (*2)

T harness, 2nd station

Diagram Reference: 4

6ES8559030 (*1 ASK TO MARINE DIV)

Pcu for triple, port side

Diagram Reference: 5

6ES8559040 (*1 ASK TO MARINE DIV)

Pcu for triple, stbd side

Diagram Reference: 6

6ES8559050 (*1 ASK TO MARINE DIV)

Pcu (Triple/Center)

Diagram Reference: 7

6ES8258A00 (*1 ASK TO MARINE DIV)

Pcu Harness

Diagram Reference: 8

6ES8258200

Cap 1

Diagram Reference: 9

6ES8258500

Cap 2

Diagram Reference: 10

6Y88252111 (*1)

Pigtail bus wire 0.6m-2ft

Diagram Reference: 11

6ES8271800 (*1)

Resistor harness

Diagram Reference: 13

6ES82590C0 (*1)

Prop. light interface harness

Diagram Reference: 14

6ES8372000 (*1)

L.e.d ass'y

Diagram Reference: 15

6ES8810700 (*1 ASK TO MARINE DIV)

Gps Antenna

Diagram Reference: 16

6ES8A2D010 (*1)

Gps gateway

Diagram Reference: 17

6ES8A2D000 (*1)

Prop. light interface

Diagram Reference: 18
