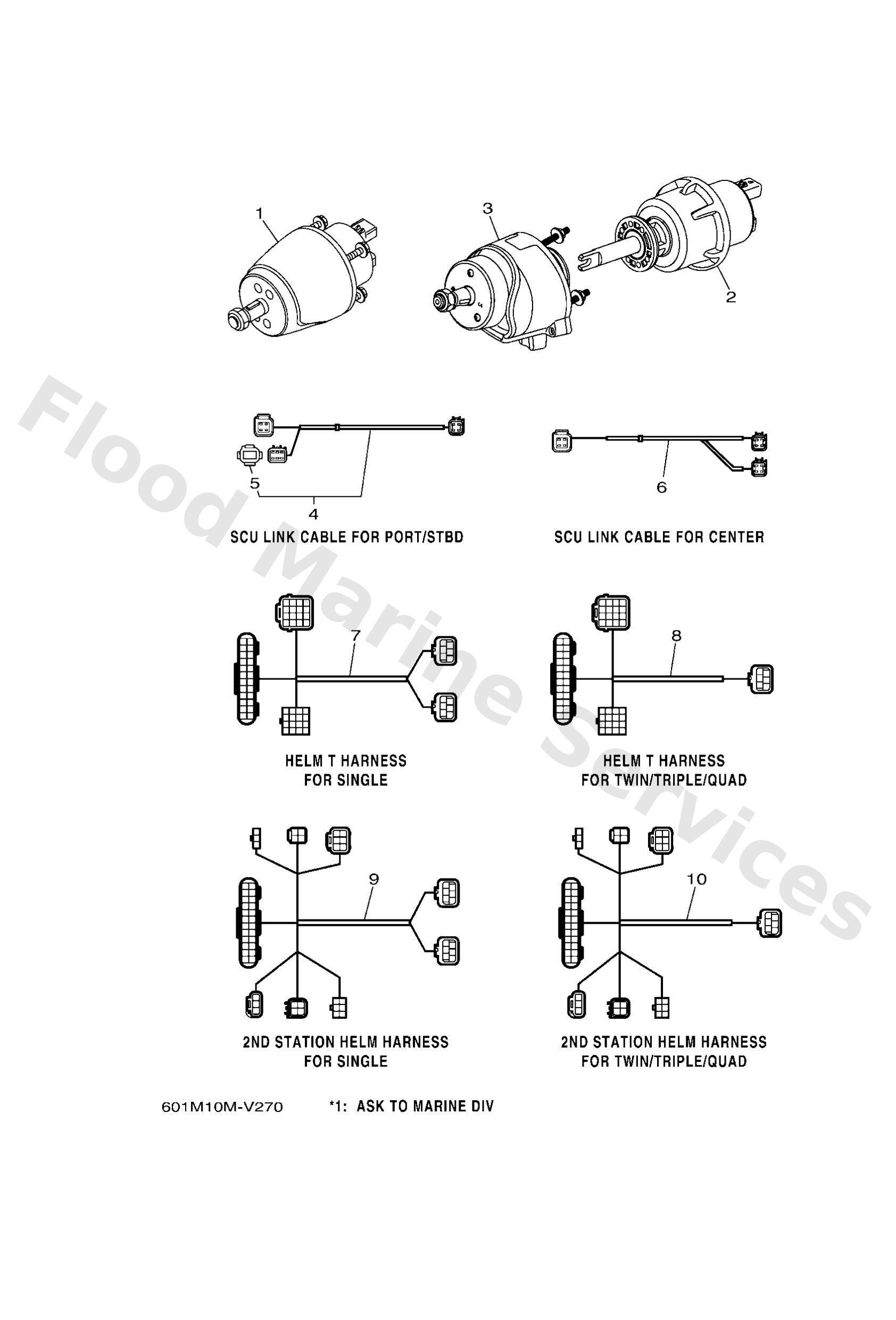

Diagram: HELM UNIT

Diagram

Parts List

6X9615A000

Compact helm kit

Diagram Reference: 1

6GR615A000 (ASK TO MARINE DIV)

Helm unit assembly tilt (2)

Diagram Reference: 2

6GR6154A00 (ASK TO MARINE DIV)

-

Diagram Reference: 3

6X98111500 (UR *1 PORT/STBD ENGINE)

Scu link harness 0.3m-1ft p/s

Diagram Reference: 4

6GR8111500 (UR *1 PORT/STBD ENGINE)

Scu link harness p/s 5ft

Diagram Reference: 4

6GR8111510 (UR *1 PORT/STBD ENGINE)

Scu link harness p/s 10ft

Diagram Reference: 4

6Y88537101

End of line resister

Diagram Reference: 5

6X98111510 (UR *1 CENTER ENGINE)

Scu link harness 0.3m-1ft (c)

Diagram Reference: 6

6GR8111520 (UR *1 CENTER ENGINE)

Scu link harness center 5ft

Diagram Reference: 6

6GR8111530 (UR *1 CENTER ENGINE)

Scu link harness center 10ft

Diagram Reference: 6

6GR8258A00 (UR *1 SINGLE ENGINE (MAIN ST))

Helm harness (main/single 0.9m

Diagram Reference: 7

6GR8258A40 (UR *1 SINGLE ENGINE (MAIN ST))

Helm harness (main/single)1.8m

Diagram Reference: 7

6GR8258A10

Helm harness multi engines 0.9

Diagram Reference: 8

6GR8258A50

Helm harness multi engines 1.8

Diagram Reference: 8

6GR8258A20 (*1 SINGLE ENGINE)

Helm harness 0.9m-3ft

Diagram Reference: 9

6GR8258A30 (*1 MULTIPLE ENGIN)

Helm harness 0.9m-3ft

Diagram Reference: 10
