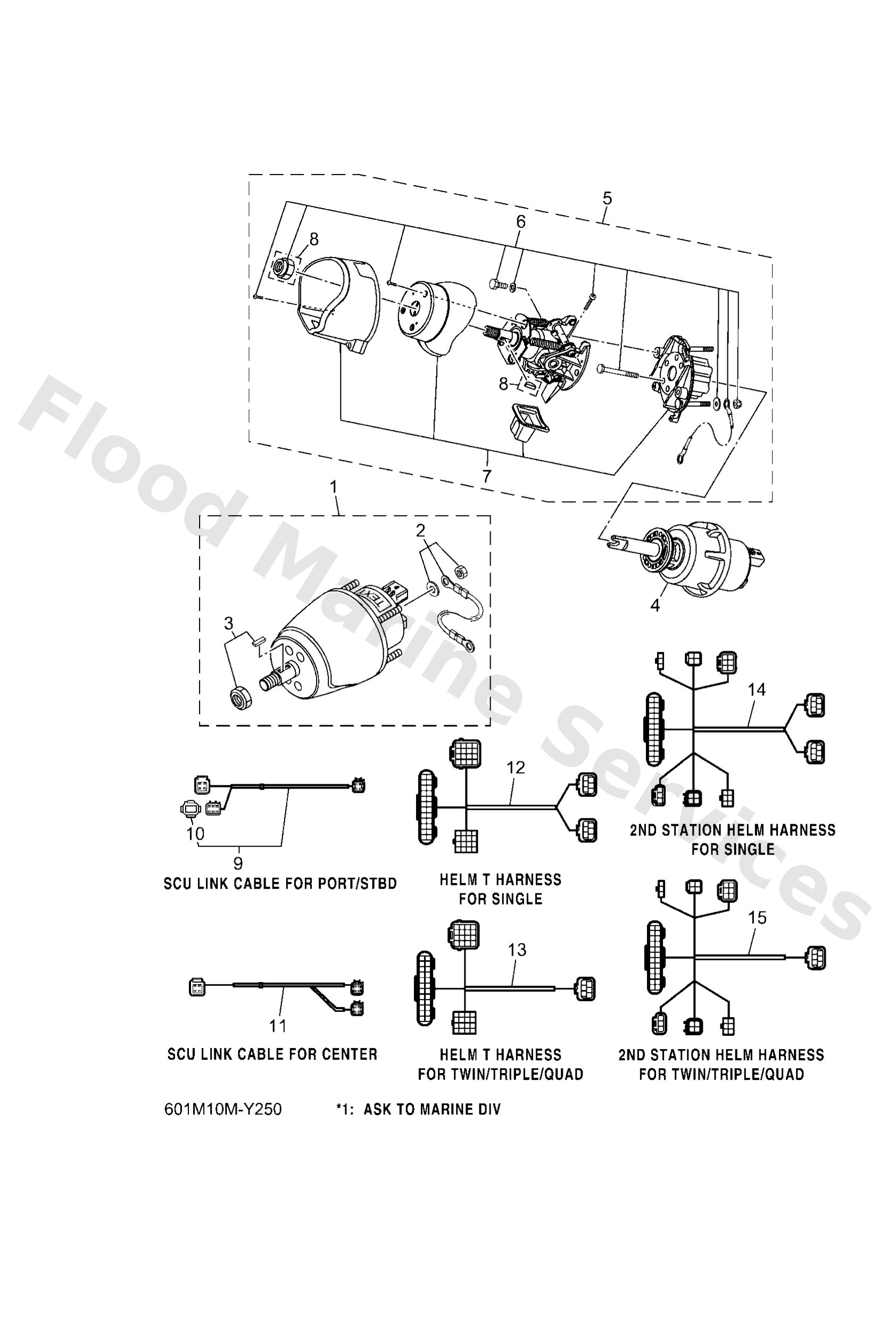

Diagram: HELM UNIT

Diagram

Parts List

6X9615A010

Compact helm kit

Diagram Reference: 1

6X94240900

-

Diagram Reference: 2

6X94240A00

-

Diagram Reference: 3

6GR615A010 (ASK TO MARINE DIV)

Helm unit assembly tilt (2)

Diagram Reference: 4

6GR6154A01 (ASK TO MARINE DIV)

-

Diagram Reference: 5

6GR4240201

-

Diagram Reference: 6

6GR4240300

-

Diagram Reference: 7

6GR8111500 (UR *1 PORT/STBD ENGINE)

Scu link harness p/s 5ft

Diagram Reference: 9

6X98111500 (UR *1 PORT/STBD ENGINE)

Scu link harness 0.3m-1ft p/s

Diagram Reference: 9

6GR8111510 (UR *1 PORT/STBD ENGINE)

Scu link harness p/s 10ft

Diagram Reference: 9

6Y88537101

End of line resister

Diagram Reference: 10

6X98111510 (UR *1 CENTER ENGINE)

Scu link harness 0.3m-1ft (c)

Diagram Reference: 11

6GR8111520 (UR *1 CENTER ENGINE)

Scu link harness center 5ft

Diagram Reference: 11

6GR8111530 (UR *1 CENTER ENGINE)

Scu link harness center 10ft

Diagram Reference: 11

6GR8258A01 (UR *1 SINGLE ENGINE (MAIN ST))

Helm harness (main/single 0.9m

Diagram Reference: 12

6GR8258A41 (UR *1 SINGLE ENGINE (MAIN ST))

Helm harness (main/single)1.8m

Diagram Reference: 12

6GR8258A51

Helm harness multi engines 1.8

Diagram Reference: 13

6GR8258A11

Helm harness multi engines 0.9

Diagram Reference: 13

6GR8258A21 (*1 SINGLE ENGINE)

Helm harness 0.9m-3ft

Diagram Reference: 14

6GR8258A31 (*1 MULTIPLE ENGINE)

Helm harness 0.9m-3ft

Diagram Reference: 15
