ME750TIL (2005)
HOUSING (MGNV123-6)

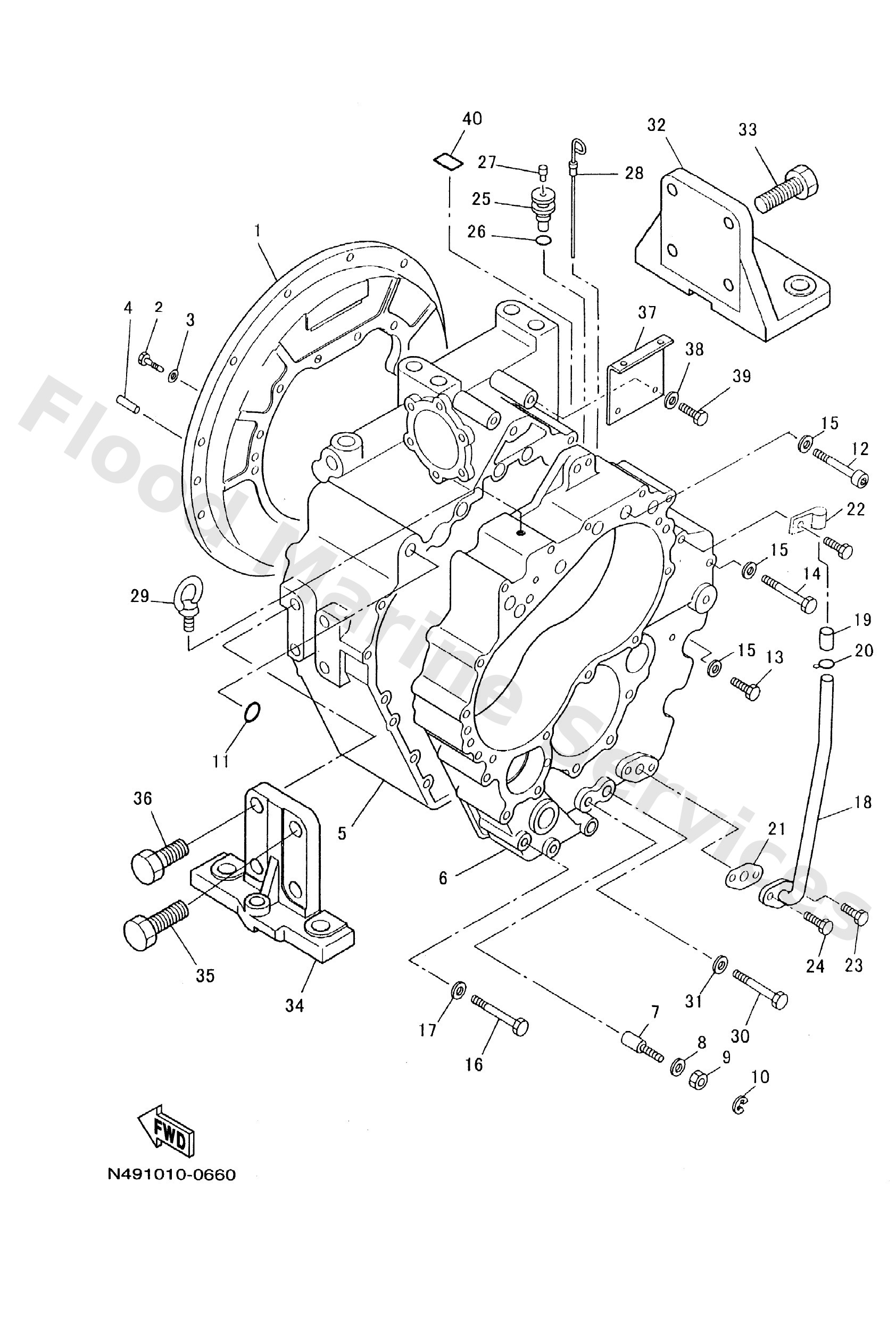

Diagram: HOUSING (MGNV123-6)
Parts List
Reference
Description
Price
1
N4917848B0
Adapter
Loading…
↗
2
N0214496N0
Bolt
Loading…
↗
3
9020110123
Washer, plain 2562171501
Loading…
↗
4
7121706900
Pin,Special
Loading…
↗
5
N4917911B0
Case, Transmission 1
Loading…
↗
6
N4917821B0
Cover, Housing
Loading…
↗
7
N4818553B0
51-
Loading…
↗
9
N4815157B0
51-
Loading…
↗
10
N4817414B0
Clip 1
Loading…
↗
11
N4813473B0
O-Ring
Loading…
↗
12
N0221738N0
Bolt
Loading…
↗
13
9010110430
Bolt, hexagon (713)
Loading…
↗
14
N4916777B0
Bolt
Loading…
↗
16
N4912615B0
Bolt
Loading…
↗
17
72X42378N0
Washer,Spring
Loading…
↗
18
N281343230
Pipe, oil drain 2
Loading…
↗
19
N281198400
Cap, rubber
Loading…
↗
20
9046016192
Hose clamp assembly(4jt)
Loading…
↗
21
N281795700
Gasket13
Loading…
↗
22
N401548500
Clamp
Loading…
↗
23
N0216777N0
Bolt
Loading…
↗
24
9988010025
Bolt
Loading…
↗
25
7052177101
Body, cap
Loading…
↗
26
9321022336
O-Ring
Loading…
↗
27
7051537100
Breather
Loading…
↗
28
72X15361N1
51-
Loading…
↗
29
N0217088N0
Bolt, eye
Loading…
↗
30
7051708500
Bolt, special 3
Loading…
↗
31
7051706700
Washer, seal 1
Loading…
↗
32
N401101300
Bracket, engine 3
Loading…
↗
33
N4941148B0
Bolt
Loading…
↗
34
N401101400
Bracket, engine 4
Loading…
↗
35
72X17647N0
Bolt
Loading…
↗
37
N491429110
48-
Loading…
↗
38
90201106F2
Washer, plate (17k)
Loading…
↗
39
71A1703100
Bolt, gear 1
Loading…
↗
40
7051252600
Label, Oil
Loading…
↗
