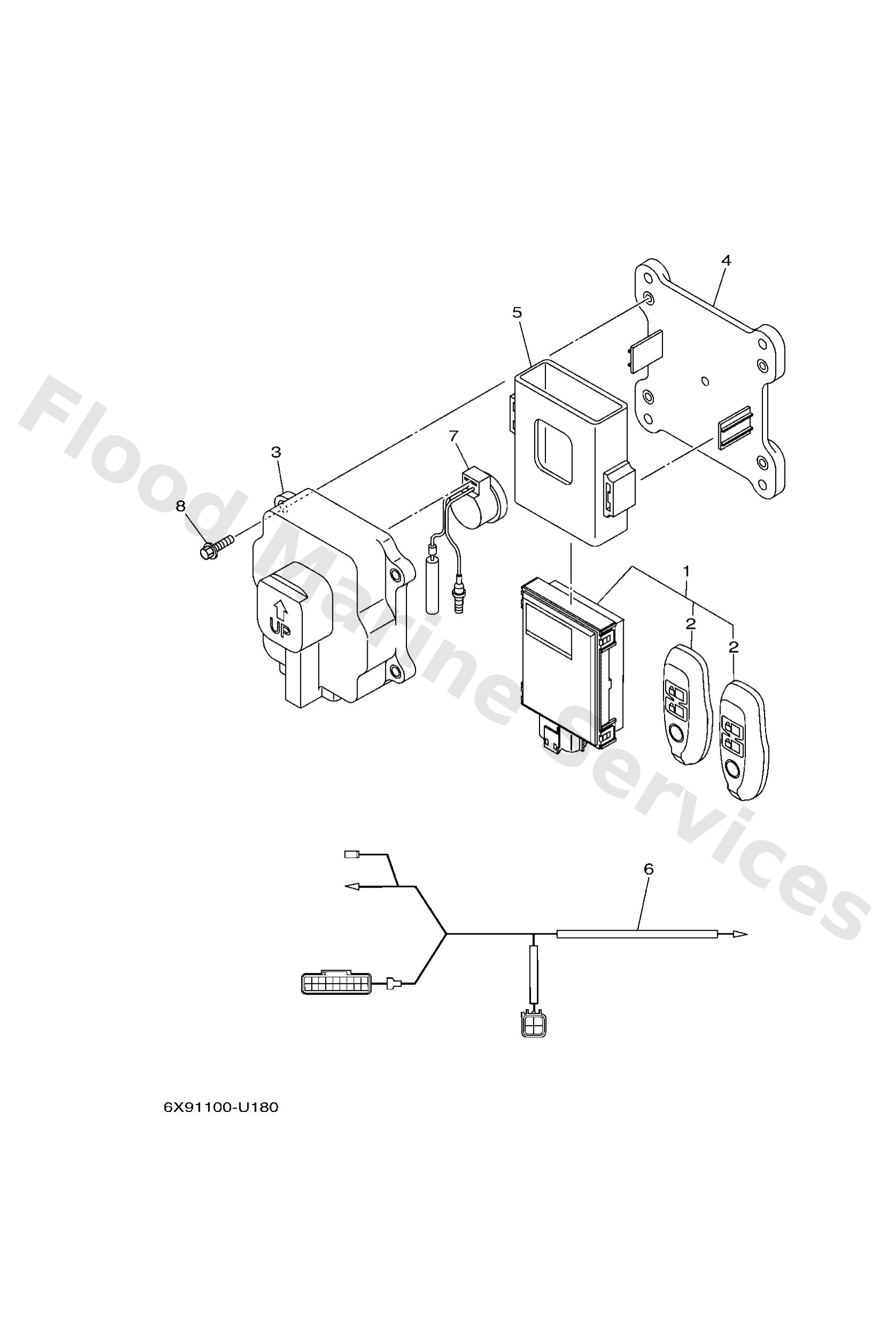

Diagram: IMMOBILIZER KIT

Diagram

Parts List

6X98626002 (UR RADIO FREQUENCY 433MHz)
Remote Control Unit assembly
Diagram Reference: 1
Get Part
6X98626012 (UR RADIO FREQUENCY 315MHz)
Remote control unit assembly
Diagram Reference: 1
Get Part
6X98626100 (FOR 6X9-86260-02)
Xmtr. comp.
Diagram Reference: 2
Get Part
6X98626110 (FOR 6X9-86260-12)
Xmtr. Comp.
Diagram Reference: 2
Get Part
6X98626700
Case complete 1
Diagram Reference: 3
Get Part
6X98194800
Bracket
Diagram Reference: 4
Get Part
6X98554601
Band
Diagram Reference: 5
Get Part
6X98250910
Wire, sub lead
Diagram Reference: 6
Get Part
7038338311
Buzzer
Diagram Reference: 7
Get Part
9588006016
Bolt, flange(jl8)
Diagram Reference: 8
