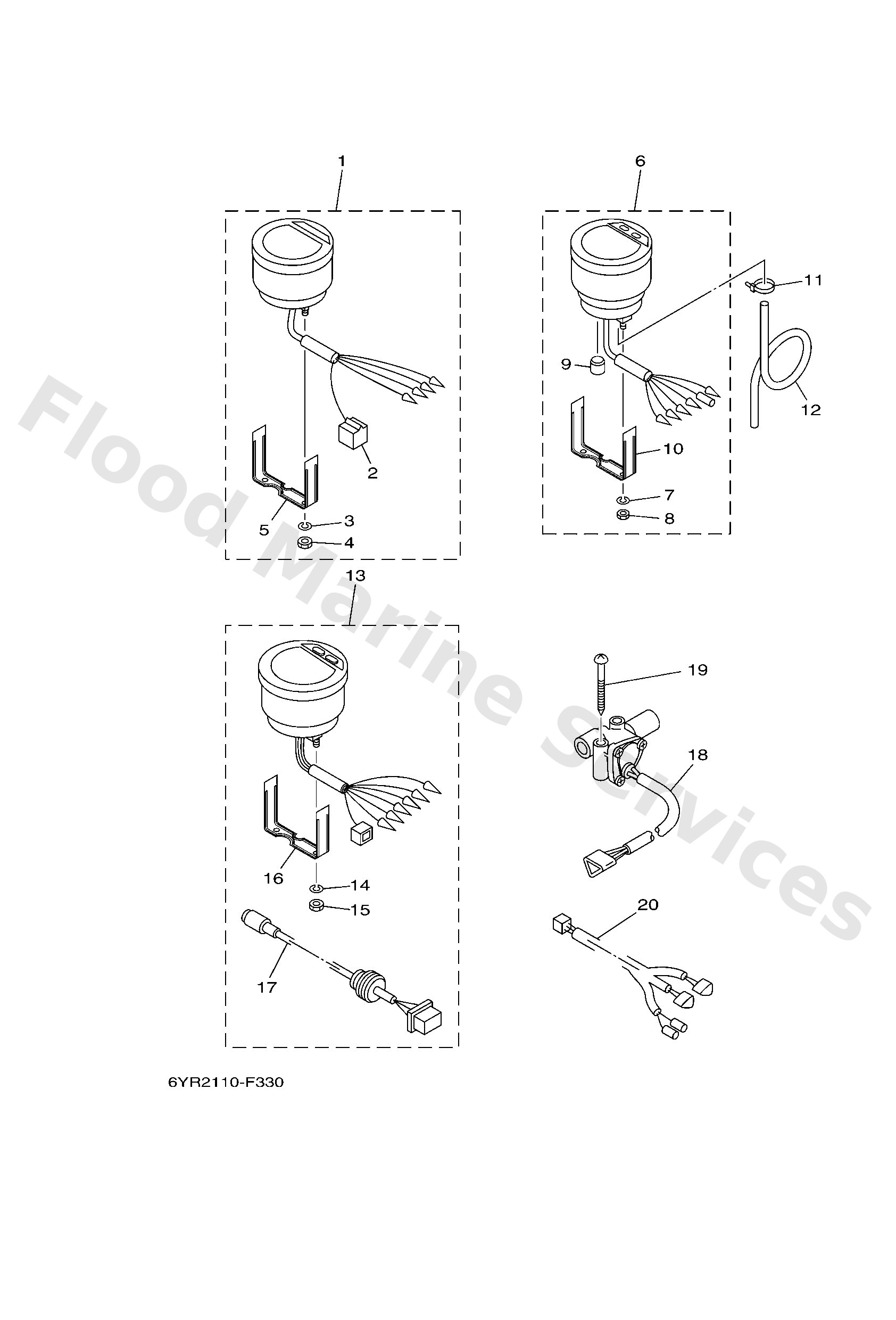

Diagram: INSTRUMENTS DIGITAL

Diagram

Parts List

6Y58350T90
Tachometer assembly
Diagram Reference: 1
Get Part
9E45004533 (F-4-W)
Housing, f-4-w(5pcs)
Diagram Reference: 2
Get Part
9299004100
Ybs67-4 washer, spring
Diagram Reference: 3
Get Part
9538004600
Nut,hex
Diagram Reference: 4
Get Part
6Y58355XT1
Bracket, meter 1
Diagram Reference: 5
Get Part
6Y583570S5
Speedometer assembly
Diagram Reference: 6
Get Part
6Y583533T2
Grommet
Diagram Reference: 9
Get Part
9046511M10
Clamp
Diagram Reference: 11
Get Part
6Y58355710
Tube (8m)
Diagram Reference: 12
Get Part
6Y583500F2
Fuel meter movement assembly
Diagram Reference: 13
Get Part
6Y587122S0 (FOR GPS CONNECTION)
Cord assembly 1
Diagram Reference: 17
Get Part
6Y58575201
Sender unit assembly, fuel meter
Diagram Reference: 18
Get Part
9015806002
Screw, Wood
Diagram Reference: 19
Get Part
6Y583553F1 (FOR FUEL SENDER)
Wire, lead
Diagram Reference: 20
Get Part
