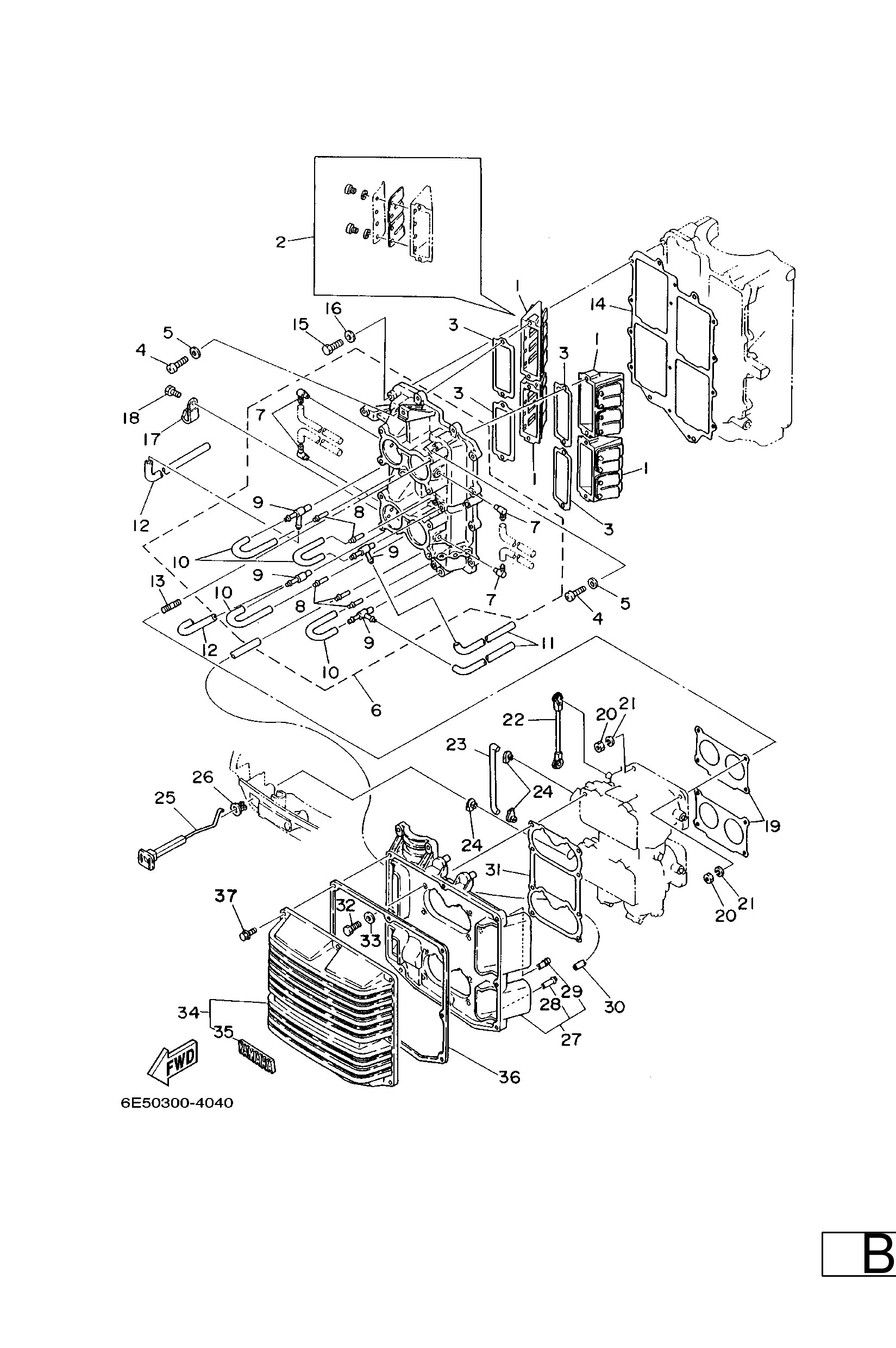

Diagram: INTAKE
Parts List
Reed valve assembly
Diagram Reference: 1
Reed set
Diagram Reference: 2
Gasket, valve seat
Diagram Reference: 3
Screw, panhead (a93)
Diagram Reference: 4
Washer, plain (646)
Diagram Reference: 5
Manifold 1
Diagram Reference: 6
Nozzle
Diagram Reference: 7
Pipe, joint
Diagram Reference: 8
Check valve assembly
Diagram Reference: 9
Hose (l200)
Diagram Reference: 10
Hose (l390)
Diagram Reference: 11
Hose (l390)
Diagram Reference: 12
Bolt, stud(6e5)
Diagram Reference: 13
Gasket, manifold 1
Diagram Reference: 14
Bolt
Diagram Reference: 15
Washer, plain (646)
Diagram Reference: 16
Clamp (1e6)
Diagram Reference: 17
Bolt(gh1)
Diagram Reference: 18
Gasket
Diagram Reference: 19
Nut(661)
Diagram Reference: 20
Washer(6a1)
Diagram Reference: 21
Rod, accel. lever
Diagram Reference: 22
Rod, choke 1
Diagram Reference: 23
Joint, choke lever
Diagram Reference: 24
Knob, choke
Diagram Reference: 25
Grommet
Diagram Reference: 26
Cover 1
Diagram Reference: 27
Pipe, joint
Diagram Reference: 29
Hose (l570)
Diagram Reference: 30
Gasket
Diagram Reference: 31
Bolt(7u8)
Diagram Reference: 32
Cover 2
Diagram Reference: 34
Emblem 1
Diagram Reference: 35
Gasket, air cleaner
Diagram Reference: 36
Bolt, with washer(680)
Diagram Reference: 37
