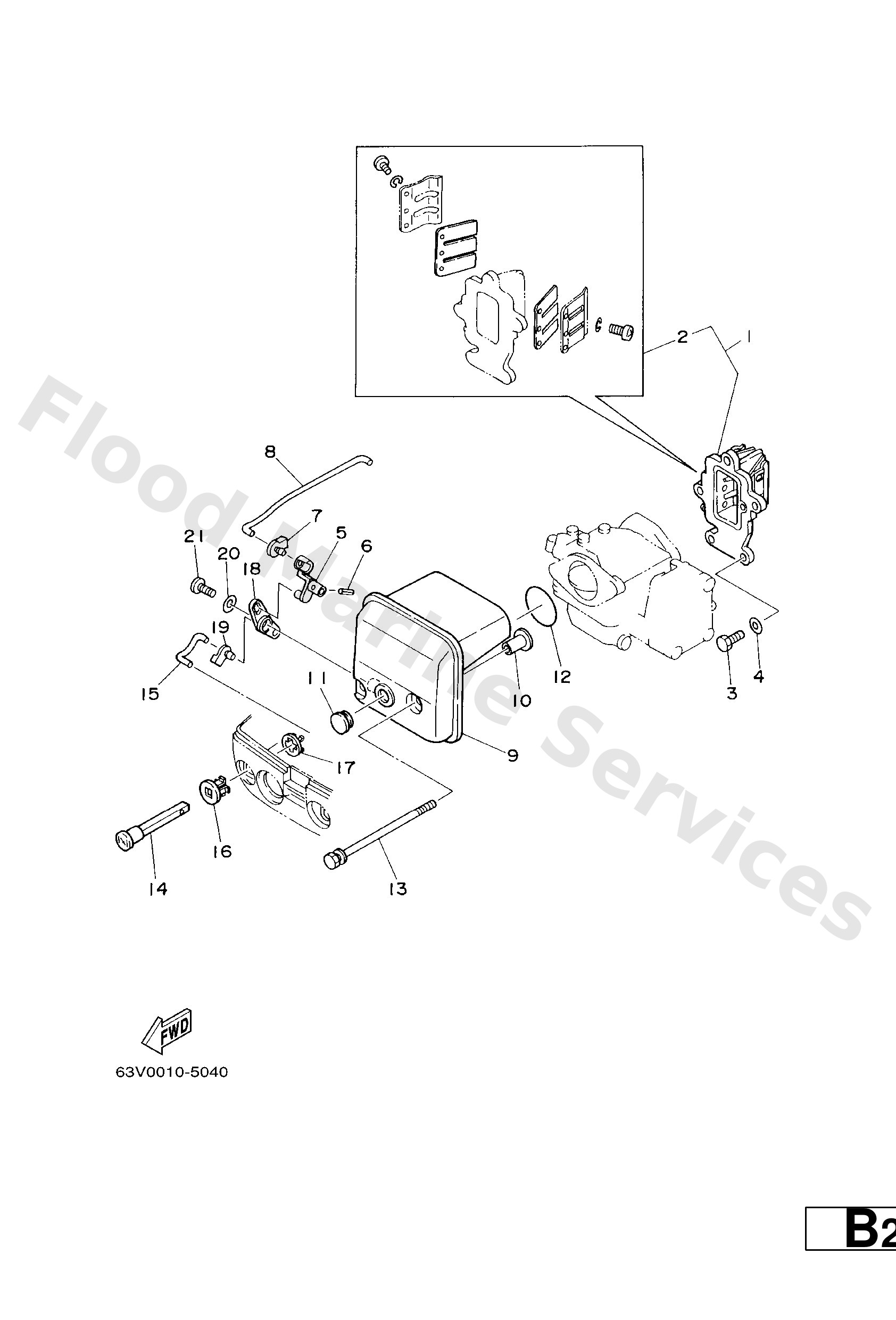

Diagram: INTAKE

Diagram

Parts List

63V1361000 (9.9F−FOR NORWAY)
Reed valve assembly
Diagram Reference: 1
Get Part
63W--13610--00
Reed valve assembly
Diagram Reference: 1
Get Part
63V--13610--10
Reed valve assembly
Diagram Reference: 1
Get Part
682--W0004--00
Reed set
Diagram Reference: 2
Get Part
97095--06020
Bolt(7u8)
Diagram Reference: 3
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 4
Get Part
63V--41253--00
Lever, choke
Diagram Reference: 5
Get Part
91690--20010
Pin, spring
Diagram Reference: 6
Get Part
63V--41262--00
Joint, choke lever
Diagram Reference: 7
Get Part
63V--41257--00
Rod, choke 2
Diagram Reference: 8
Get Part
63V--14440--00
Silencer assembly, intake
Diagram Reference: 9
Get Part
90387--06M15
Collar(6g8)
Diagram Reference: 10
Get Part
90480--12M25
Grommet (6e9)
Diagram Reference: 11
Get Part
93210--35M86
O-ring(6l2)
Diagram Reference: 12
Get Part
90119--06M94
Bolt, with washer
Diagram Reference: 13
Get Part
6H4--41271--01
Knob, choke
Diagram Reference: 14
Get Part
63V--41256--00
Rod, choke 1
Diagram Reference: 15
Get Part
689--41273--00
Grommet
Diagram Reference: 16
Get Part
6J8--41274--00
Grommet 2
Diagram Reference: 17
Get Part
63V--41252--00
Lever, choke 1
Diagram Reference: 18
Get Part
661--41262--02
Joint, choke lever
Diagram Reference: 19
Get Part
90201--05M09
Washer, plate(63v)
Diagram Reference: 20
Get Part
90164--05M03
Screw, tapping(6g8)
Diagram Reference: 21
