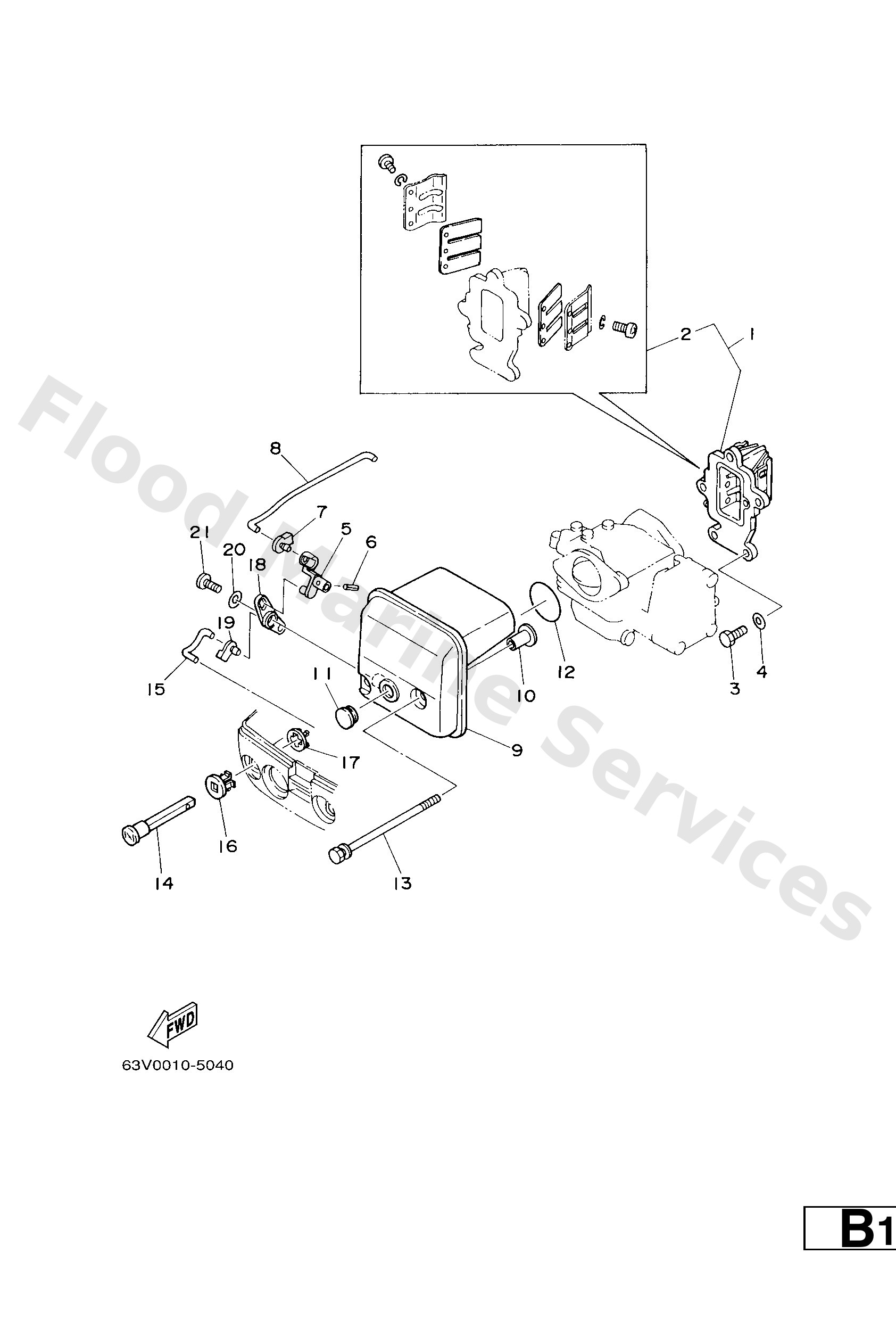

Diagram: INTAKE

Diagram

Parts List

63V1361000 (9.9F(NORWAY))
Reed valve assembly
Diagram Reference: 1
Get Part
63W1361000 (15F,9.9F(NORWAY))
Reed valve assembly
Diagram Reference: 1
Get Part
63V1361010 (9.9F,13.5A)
Reed valve assembly
Diagram Reference: 1
Get Part
682W000400
Reed set
Diagram Reference: 2
Get Part
9709506020
Bolt(7u8)
Diagram Reference: 3
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 4
Get Part
63V4125300
Lever, choke
Diagram Reference: 5
Get Part
9169020010
Pin, spring
Diagram Reference: 6
Get Part
63V4126200
Joint, choke lever
Diagram Reference: 7
Get Part
63V4125700
Rod, choke 2
Diagram Reference: 8
Get Part
63V1444000
Silencer assembly, intake
Diagram Reference: 9
Get Part
9038706M15
Collar(6g8)
Diagram Reference: 10
Get Part
9048012M25
Grommet (6e9)
Diagram Reference: 11
Get Part
9321035M86
O-ring(6l2)
Diagram Reference: 12
Get Part
9011906M94
Bolt, with washer
Diagram Reference: 13
Get Part
6H44127101
Knob, choke
Diagram Reference: 14
Get Part
63V4125600
Rod, choke 1
Diagram Reference: 15
Get Part
6894127300
Grommet
Diagram Reference: 16
Get Part
6J84127400
Grommet 2
Diagram Reference: 17
Get Part
63V4125200
Lever, choke 1
Diagram Reference: 18
Get Part
6614126202
Joint, choke lever
Diagram Reference: 19
Get Part
9020105M09
Washer, plate(63v)
Diagram Reference: 20
Get Part
9016405M03
Screw, tapping(6g8)
Diagram Reference: 21
