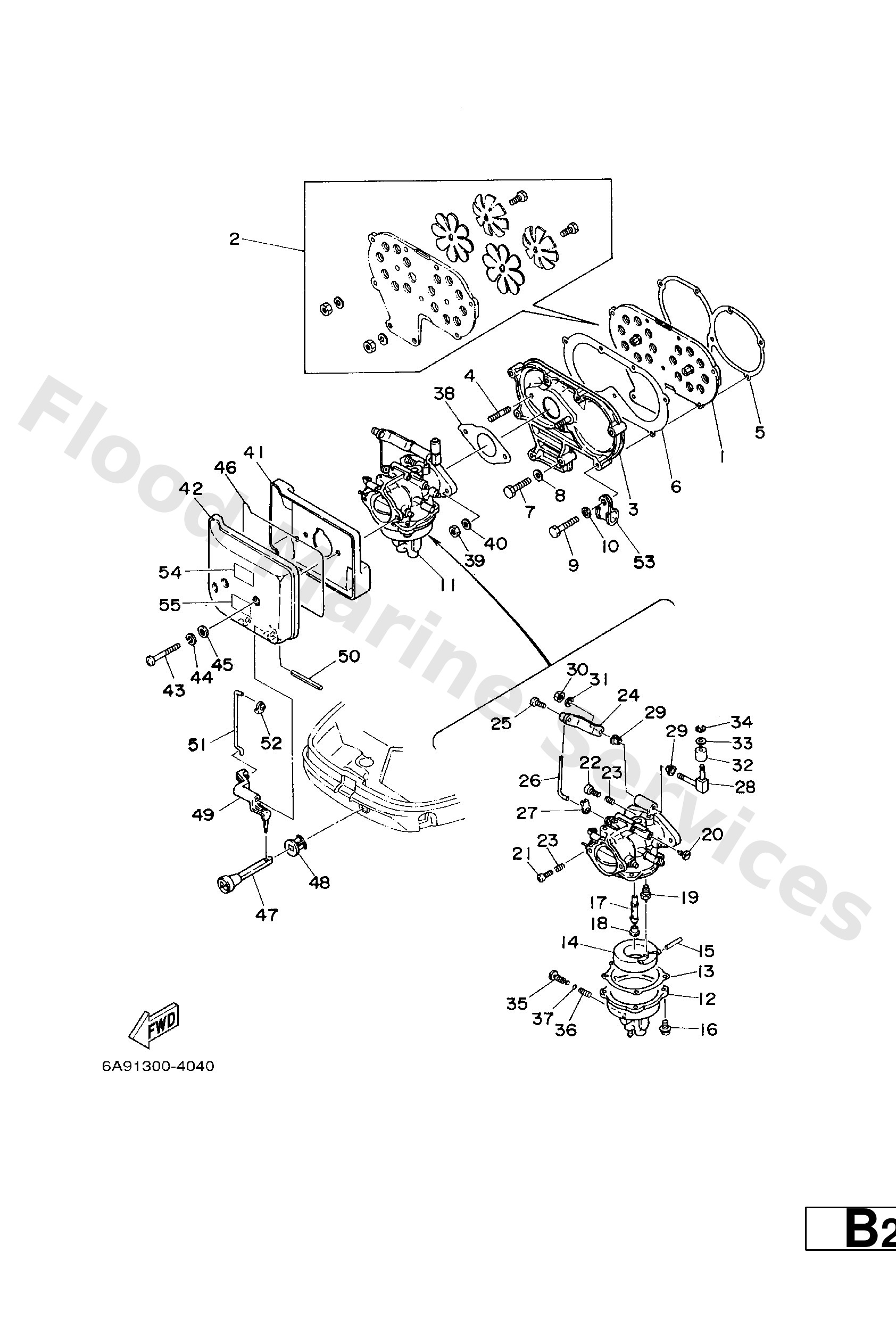

Diagram: INTAKE

Diagram

Parts List

689--13610--01
Reed valve assembly
Diagram Reference: 1
Get Part
689--W0004--00
Reed set
Diagram Reference: 2
Get Part
64813641021S
Manifold 1
Diagram Reference: 3
Get Part
90116--06M30
Bolt, stud(6e5)
Diagram Reference: 4
Get Part
648--13621--A1
Gasket, valve seat
Diagram Reference: 5
Get Part
648--13645--A0
Gasket, manifold 1
Diagram Reference: 6
Get Part
97013--06025
Bolt(62y)
Diagram Reference: 7
Get Part
92903--06600
Washer, plain (646)
Diagram Reference: 8
Get Part
97013--06035
Bolt(3rv)
Diagram Reference: 9
Get Part
6A91430101
Carburetor assembly 1
Diagram Reference: 11
Get Part
6641438102
Body, Float Chamber
Diagram Reference: 12
Get Part
6481438401
Gasket,float chamber
Diagram Reference: 13
Get Part
6481438500
Float
Diagram Reference: 14
Get Part
6891438600
Pin, float
Diagram Reference: 15
Get Part
97980--04112
Screw, pan head (686)
Diagram Reference: 16
Get Part
6A91434100
Nozzle, Main
Diagram Reference: 17
Get Part
6891434366
Jet, main (#133)
Diagram Reference: 18
Get Part
6J01439014
Valve seat assembly
Diagram Reference: 19
Get Part
6481434231
Jet, Pilot (# 62)
Diagram Reference: 20
Get Part
664--14321--01
Screw, throttle
Diagram Reference: 21
Get Part
647--14323--00
Screw, air adjusting
Diagram Reference: 22
Get Part
646--14212--01
Spring, pilot adjusting
Diagram Reference: 23
Get Part
6484121001
Accel. Arm assembly
Diagram Reference: 24
Get Part
6501432701
Screw
Diagram Reference: 25
Get Part
6564124100
Rod, Link
Diagram Reference: 26
Get Part
661--41262--02
Joint, choke lever
Diagram Reference: 27
Get Part
6894121600
Sheave Shaft, Accel. Link
Diagram Reference: 28
Get Part
9038605002
Bush 626412910000
Diagram Reference: 29
Get Part
95380--05700
Nut (656)
Diagram Reference: 30
Get Part
92990--05100
Ybs67-5 washer, spring
Diagram Reference: 31
Get Part
6644123100
Collar, Guide Pin
Diagram Reference: 32
Get Part
92990--05200
Ybs66-5 washer, plain
Diagram Reference: 33
Get Part
9343004031
Circlip(655 carb)
Diagram Reference: 34
Get Part
6461439400
Valve, Drain
Diagram Reference: 35
Get Part
6461422301
Spring, Drain Valve
Diagram Reference: 36
Get Part
6461439700
O−Ring
Diagram Reference: 37
Get Part
64814198A0
Gasket
Diagram Reference: 38
Get Part
95380--06600
Nut(661)
Diagram Reference: 39
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 40
Get Part
6951441700
Cover 1
Diagram Reference: 41
Get Part
6951441801
Cover 2
Diagram Reference: 42
Get Part
9788005030
Ybs86-530 screw,panhead
Diagram Reference: 43
Get Part
92990--05600
Washer, plain (646)
Diagram Reference: 45
Get Part
6951447600
Seal
Diagram Reference: 46
Get Part
682--41271--00
Knob, choke
Diagram Reference: 47
Get Part
689--41273--00
Grommet
Diagram Reference: 48
Get Part
689--41252--01
Lever, choke 1
Diagram Reference: 49
Get Part
91690--40048
Pin, spring (689)
Diagram Reference: 50
Get Part
6954125600
Rod, Choke 1
Diagram Reference: 51
Get Part
9046106002
Clamp
Diagram Reference: 53
Get Part
6A1--83625--41
Mark 5
Diagram Reference: 54
Get Part
6A1--83625--51
Mark 5
Diagram Reference: 55
Get Part
