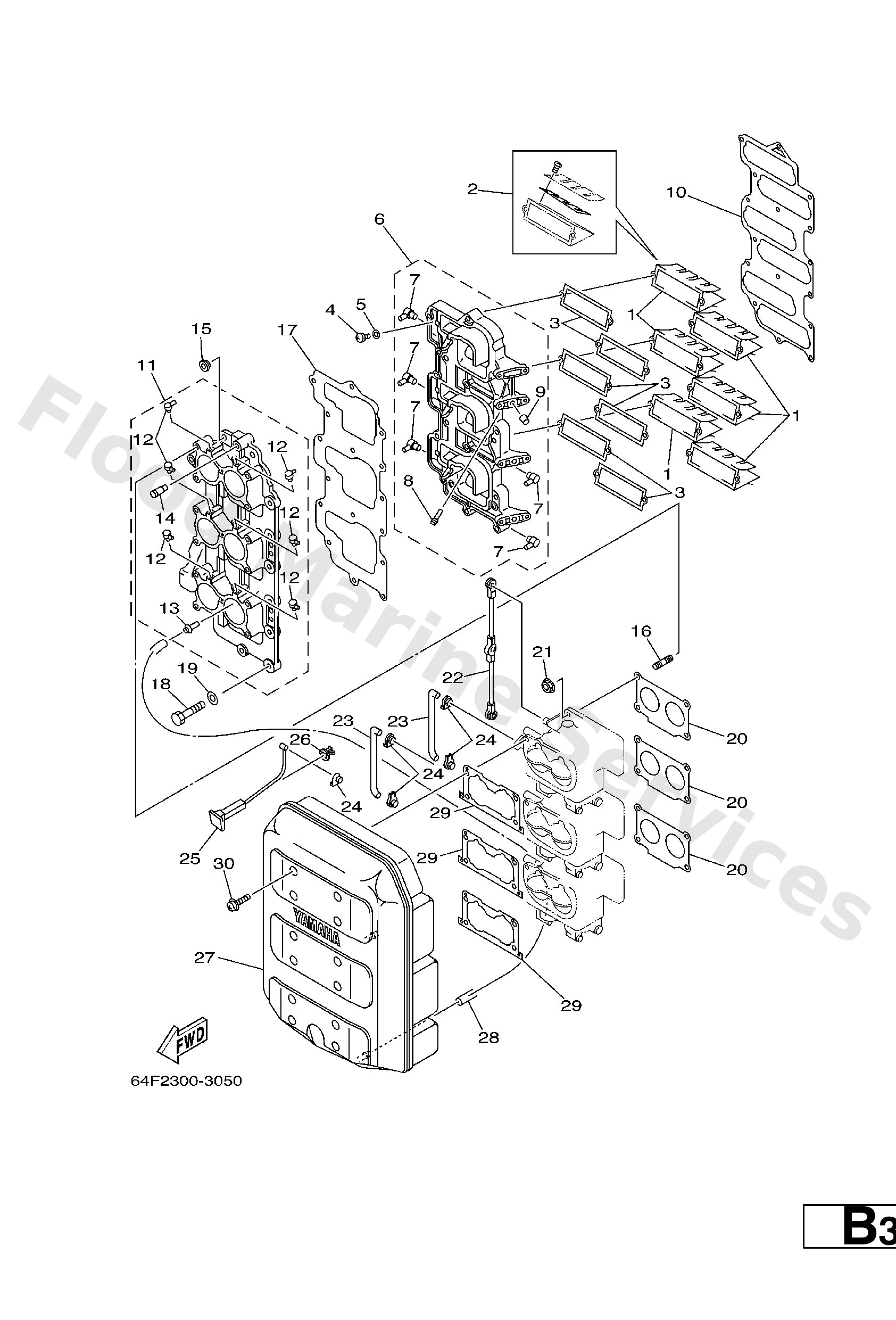

Diagram: INTAKE

Diagram

Parts List

6K7−13610−00

Reed valve assembly

Diagram Reference: 1

6E5−W0004−00

Reed set

Diagram Reference: 2

6K7−13621−A1

Gasket, valve seat

Diagram Reference: 3

97880−05016

Screw, pan head(6b0)

Diagram Reference: 4

92990−05600

Washer, plain (646)

Diagram Reference: 5

64E−13624−00−1S

Plate,reed valve

Diagram Reference: 6

688−11372−01

Nipple, hose

Diagram Reference: 7

6R5−14485−00

Pipe, joint

Diagram Reference: 8

90336−08M06

Plug, Taper

Diagram Reference: 9

6K7−13646−A2

Gasket, manifold 2

Diagram Reference: 10

64E−13641−00−1S

Manifold 1

Diagram Reference: 11

6E5−13552−01

Nozzle

Diagram Reference: 12

624−14485−00

Pipe, joint

Diagram Reference: 13

6K7−81338−01

Stay

Diagram Reference: 14

90480−10M28

Grommet(6k7)

Diagram Reference: 15

90116−06M30

Bolt, stud(6e5)

Diagram Reference: 16

64E−13645−A0

Gasket, manifold 1

Diagram Reference: 17

97013−06050

Bolt, hexagon

Diagram Reference: 18

92903−06600

Washer, plain (646)

Diagram Reference: 19

6E5−14198−A2

Gasket

Diagram Reference: 20

90179−06M28

Nut(63v)

Diagram Reference: 21

6G5−41217−01

Rod, accel. lever

Diagram Reference: 22

6E5−41256−01

Rod, choke 1

Diagram Reference: 23

661−41262−02

Joint, choke lever

Diagram Reference: 24

61H−41271−10

Knob, choke

Diagram Reference: 25

689−41273−00

Grommet

Diagram Reference: 26

64D−14440−00

Silencer assembly, Intake

Diagram Reference: 27

90445−07MA3

Hose (l200)

Diagram Reference: 28

6K7−14483−00

Gasket

Diagram Reference: 29

90159−06M08

Screw, with washer(6k7)

Diagram Reference: 30
