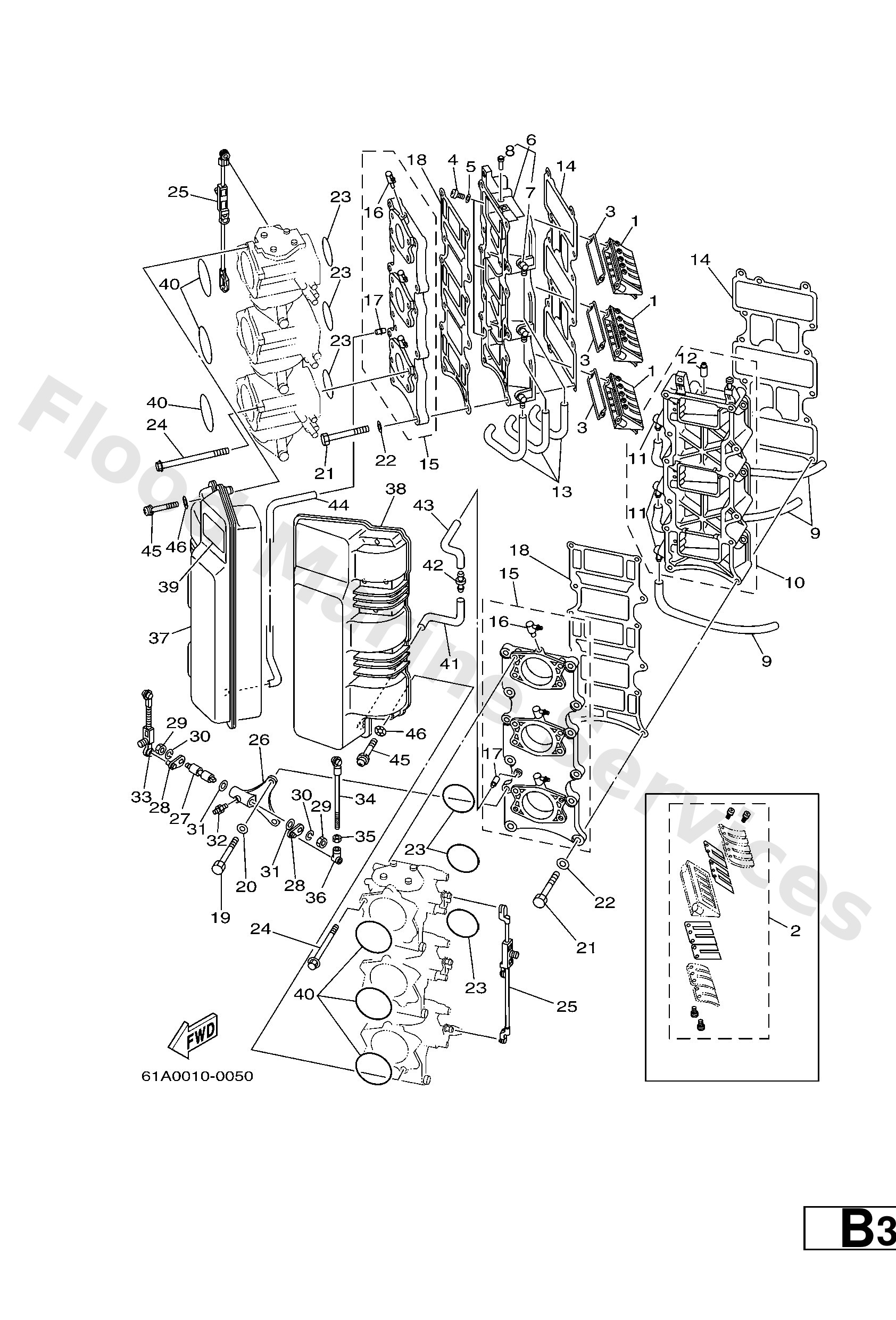

Diagram: INTAKE

Diagram

Parts List

65L1361001
Reed valve assembly
Diagram Reference: 1
Get Part
65JW000401
Reed set
Diagram Reference: 2
Get Part
61A13621A0
Gasket, valve seat
Diagram Reference: 3
Get Part
9788005016
Screw, pan head(6b0)
Diagram Reference: 4
Get Part
9299005600
Washer, plain (646)
Diagram Reference: 5
Get Part
61A13624201S
Plate,Reed Valve
Diagram Reference: 6
Get Part
6E51137201
Nipple, hose
Diagram Reference: 7
Get Part
6502437800
Pipe, joint 2
Diagram Reference: 8
Get Part
9044507M20
Hose (l770)
Diagram Reference: 9
Get Part
61A13624301S
Plate,Reed Valve
Diagram Reference: 10
Get Part
9044507M45
Hose (l390)
Diagram Reference: 13
Get Part
61A1364600
Gasket, manifold 2
Diagram Reference: 14
Get Part
61A13641001S
Manifold 1
Diagram Reference: 15
Get Part
61A1355200
Nozzle
Diagram Reference: 16
Get Part
6241448500
Pipe, joint
Diagram Reference: 17
Get Part
61A1364500
Gasket, Manifold 1
Diagram Reference: 18
Get Part
9701306070
Bolt(62j)
Diagram Reference: 19
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 20
Get Part
9701306065
Bolt(62j)
Diagram Reference: 21
Get Part
9321050MA8
O-ring(61a)
Diagram Reference: 23
Get Part
9010506M55
Bolt, Flange
Diagram Reference: 24
Get Part
61A4121701
Rod, accel. lever
Diagram Reference: 25
Get Part
61A41663001S
Bracket 3
Diagram Reference: 26
Get Part
61A4124200
Rod 2
Diagram Reference: 27
Get Part
61A4128000
Accel. Lever assembly
Diagram Reference: 28
Get Part
9538006600
Nut(661)
Diagram Reference: 29
Get Part
9299006100
Washer(6a1)
Diagram Reference: 30
Get Part
9020208M41
Washer, plate(6t4)
Diagram Reference: 31
Get Part
9370006M03
Nipple, grease(6a1)
Diagram Reference: 32
Get Part
61A4121101
Link, Accel.
Diagram Reference: 33
Get Part
6J84123700
Joint, link
Diagram Reference: 34
Get Part
9538005600
Nut, hexagon (663)
Diagram Reference: 35
Get Part
6H44123700
Joint, link
Diagram Reference: 36
Get Part
61A1444003
Silencer assembly, Intake
Diagram Reference: 37
Get Part
61A1444010
Silencer assembly, Intake
Diagram Reference: 38
Get Part
61A1441K01
Emblem
Diagram Reference: 39
Get Part
9321060ME8
O-ring(61a)
Diagram Reference: 40
Get Part
9044507254
Hose (l200)
Diagram Reference: 41
Get Part
6E51313200
Joint
Diagram Reference: 42
Get Part
9044507258
Hose (l390)
Diagram Reference: 43
Get Part
9044507M44
Hose (l390)
Diagram Reference: 44
Get Part
9015906M16
Screw, with washer(61a)
Diagram Reference: 45
Get Part
9020906M05
Washer (688)
Diagram Reference: 46
