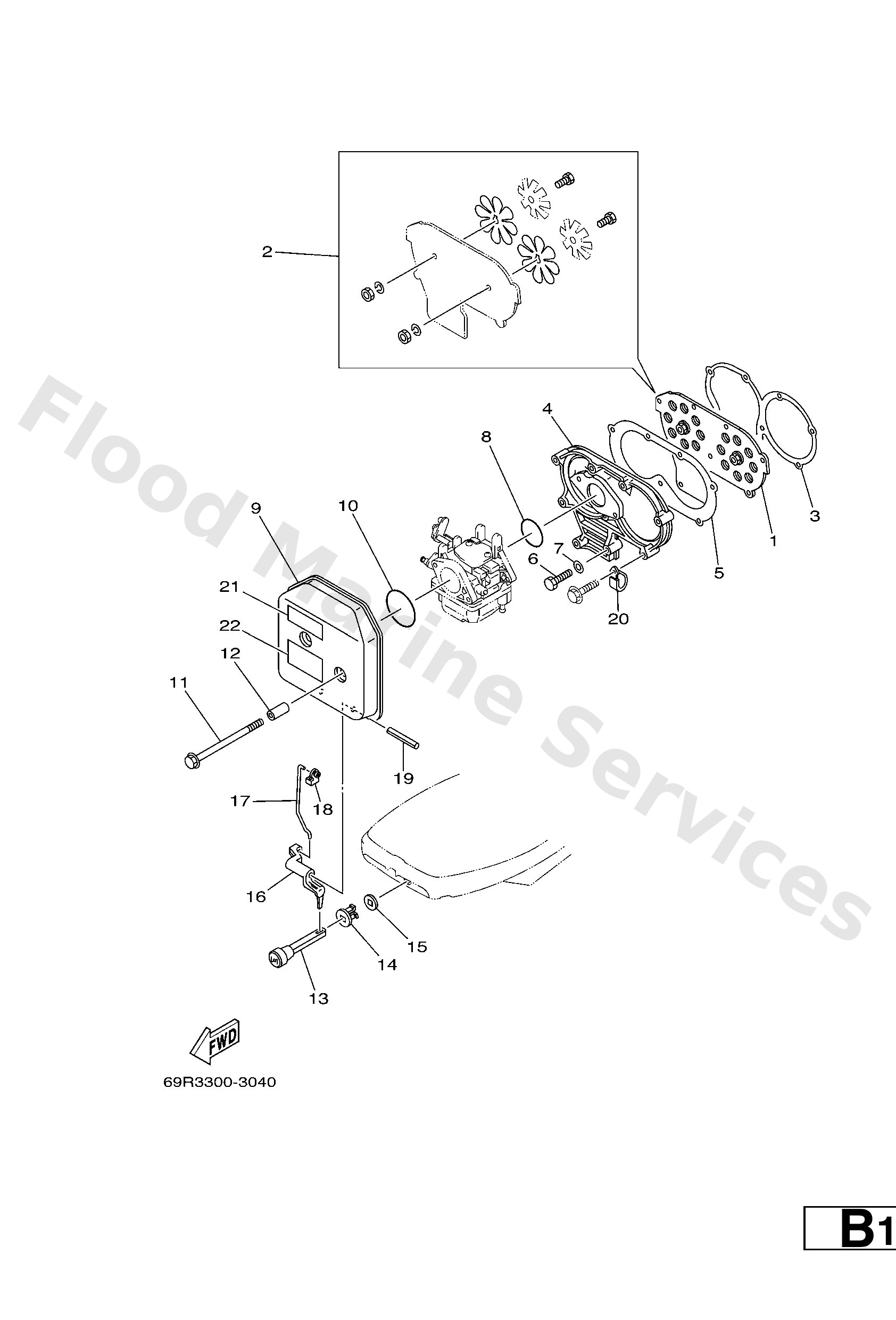

Diagram: INTAKE

Diagram

Parts List

61N1361000
Reed valve assembly
Diagram Reference: 1
Get Part
689W000400
Reed set
Diagram Reference: 2
Get Part
64813621A1
Gasket, valve seat
Diagram Reference: 3
Get Part
61N13641011S
Manifold, intake 1
Diagram Reference: 4
Get Part
64813645A0
Gasket, manifold 1
Diagram Reference: 5
Get Part
9701306035
Bolt(3rv)
Diagram Reference: 6
Get Part
9290306600
Washer, plain (646)
Diagram Reference: 7
Get Part
61N1419800
Gasket
Diagram Reference: 8
Get Part
61N1444000
Silencer assembly, intake
Diagram Reference: 9
Get Part
9321040659
O-ring(36y)
Diagram Reference: 10
Get Part
9011906M94
Bolt, with washer
Diagram Reference: 11
Get Part
9038706M26
Collar(61n)
Diagram Reference: 12
Get Part
6824127100
Knob, choke
Diagram Reference: 13
Get Part
6894127300
Grommet
Diagram Reference: 14
Get Part
6J84127400
Grommet 2
Diagram Reference: 15
Get Part
6894125201
Lever, choke 1
Diagram Reference: 16
Get Part
61N4125600
Rod, choke 1
Diagram Reference: 17
Get Part
6614126202
Joint, choke lever
Diagram Reference: 18
Get Part
9169040048
Pin, spring (689)
Diagram Reference: 19
Get Part
9046506M88
Clamp
Diagram Reference: 20
Get Part
6A18362541
Mark 5
Diagram Reference: 21
Get Part
6A18362551
Mark 5
Diagram Reference: 22
Get Part
