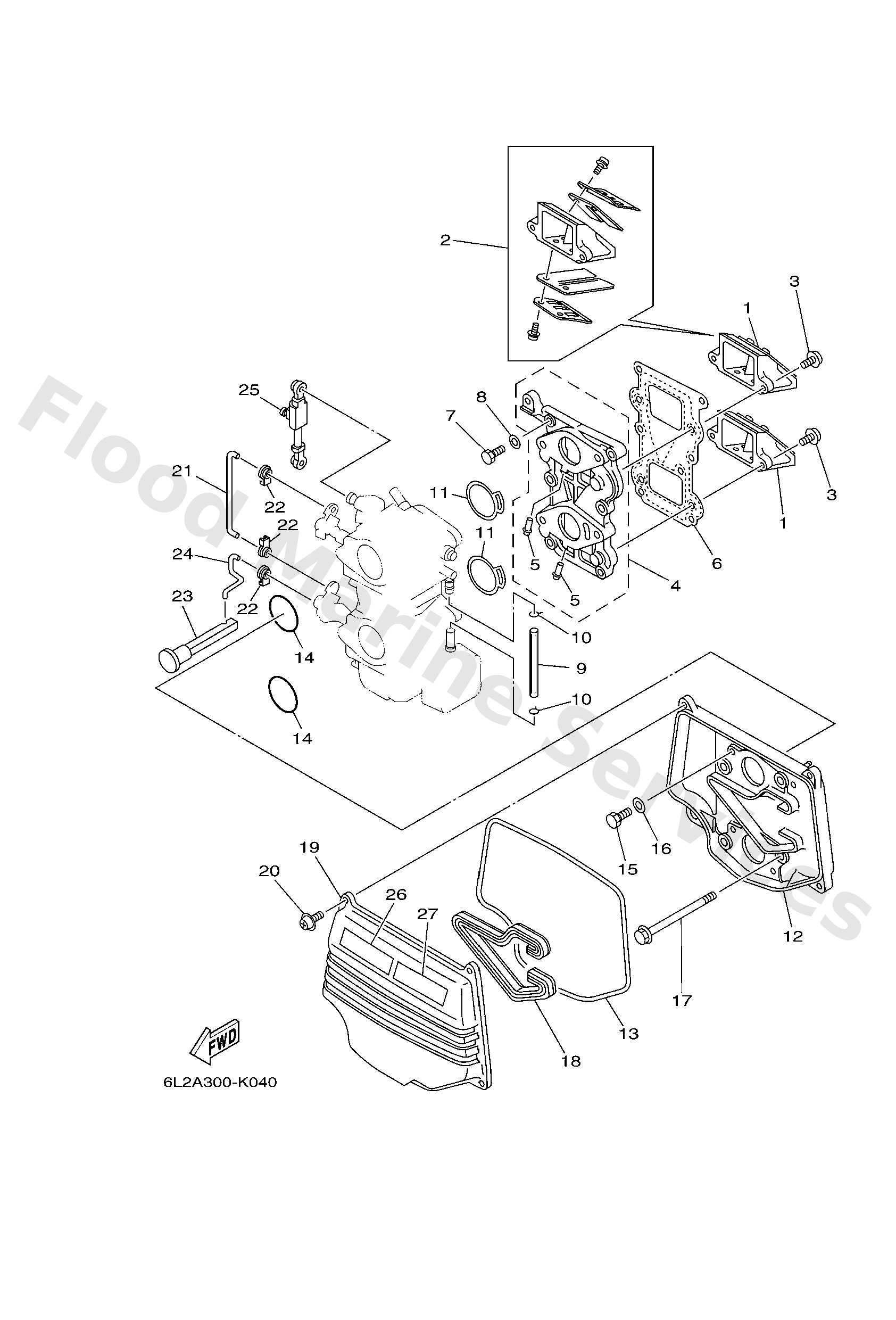

Diagram: INTAKE
Parts List
Reed valve assembly
Diagram Reference: 1
Reed set
Diagram Reference: 2
Screw, pan w/ plain
Diagram Reference: 3
Manifold 1
Diagram Reference: 4
Pipe, joint
Diagram Reference: 5
Gasket, valve seat
Diagram Reference: 6
Bolt(62y)
Diagram Reference: 7
Washer, plain (646)
Diagram Reference: 8
Hose (l1500)
Diagram Reference: 9
Clip, pipe 6162435600
Diagram Reference: 10
Gasket
Diagram Reference: 11
Cover 1
Diagram Reference: 12
Seal
Diagram Reference: 13
O-ring(6l2)
Diagram Reference: 14
Bolt, hexagon
Diagram Reference: 15
Washer, plain (646)
Diagram Reference: 16
Bolt, with washer
Diagram Reference: 17
Seal
Diagram Reference: 18
Cover 2
Diagram Reference: 19
Rod, choke 3
Diagram Reference: 21
Joint, choke lever
Diagram Reference: 22
Knob, choke
Diagram Reference: 23
Rod, choke 2
Diagram Reference: 24
Rod, accel. lever
Diagram Reference: 25
Label, safety
Diagram Reference: 26
Label, safety
Diagram Reference: 27
