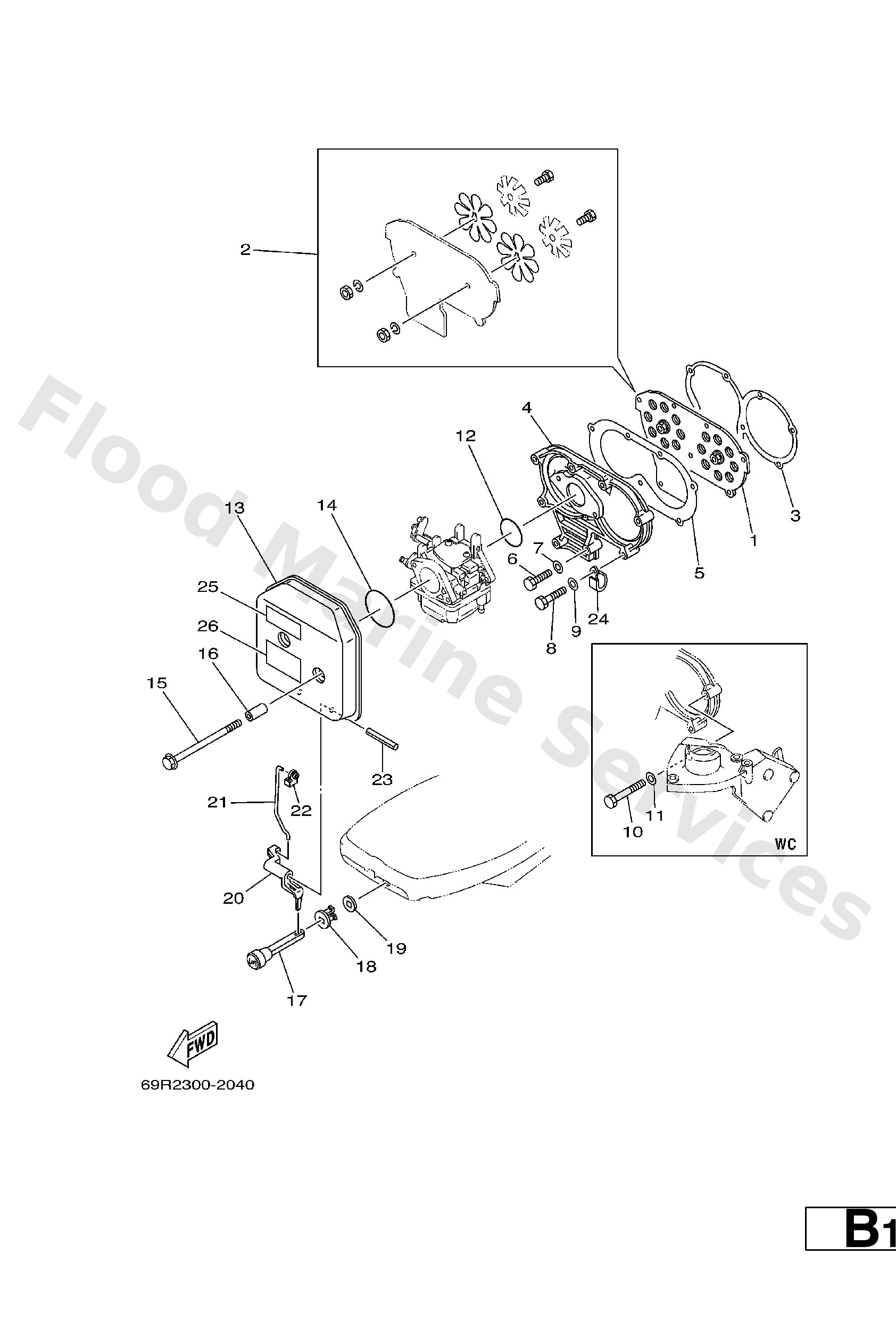

Diagram: INTAKE

Diagram

Parts List

689--13610--01
Reed valve assembly
Diagram Reference: 1
Get Part
61N--13610--00
Reed valve assembly
Diagram Reference: 1
Get Part
689--W0004--00
Reed set
Diagram Reference: 2
Get Part
648--13621--A1
Gasket, valve seat
Diagram Reference: 3
Get Part
61N--13641--01--1S
Manifold, intake 1
Diagram Reference: 4
Get Part
648--13645--A0
Gasket, manifold 1
Diagram Reference: 5
Get Part
97013--06025 (FOR VOLGA)
Bolt(62y)
Diagram Reference: 6
Get Part
92903--06600 (FOR VOLGA)
Washer, plain (646)
Diagram Reference: 7
Get Part
97013--06035 (FOR VOLGA)
Bolt(3rv)
Diagram Reference: 8
Get Part
97013--06050
Bolt, hexagon
Diagram Reference: 10
Get Part
61N--14198--00
Gasket
Diagram Reference: 12
Get Part
61N--14440--00
Silencer assembly, intake
Diagram Reference: 13
Get Part
93210--40659
O-ring(36y)
Diagram Reference: 14
Get Part
90119--06M94
Bolt, with washer
Diagram Reference: 15
Get Part
90387--06M26
Collar(61n)
Diagram Reference: 16
Get Part
682--41271--00
Knob, choke
Diagram Reference: 17
Get Part
689--41273--00
Grommet
Diagram Reference: 18
Get Part
6J8--41274--00
Grommet 2
Diagram Reference: 19
Get Part
689--41252--01
Lever, choke 1
Diagram Reference: 20
Get Part
61N--41256--00
Rod, choke 1
Diagram Reference: 21
Get Part
661--41262--02
Joint, choke lever
Diagram Reference: 22
Get Part
91690--40048
Pin, spring (689)
Diagram Reference: 23
Get Part
90465--06M88
Clamp
Diagram Reference: 24
Get Part
6A1--83625--41
Mark 5
Diagram Reference: 25
Get Part
6A1--83625--51
Mark 5
Diagram Reference: 26
Get Part
61T8362580 (FOR VOLGA)
Mark 5
Diagram Reference: 26
Get Part
