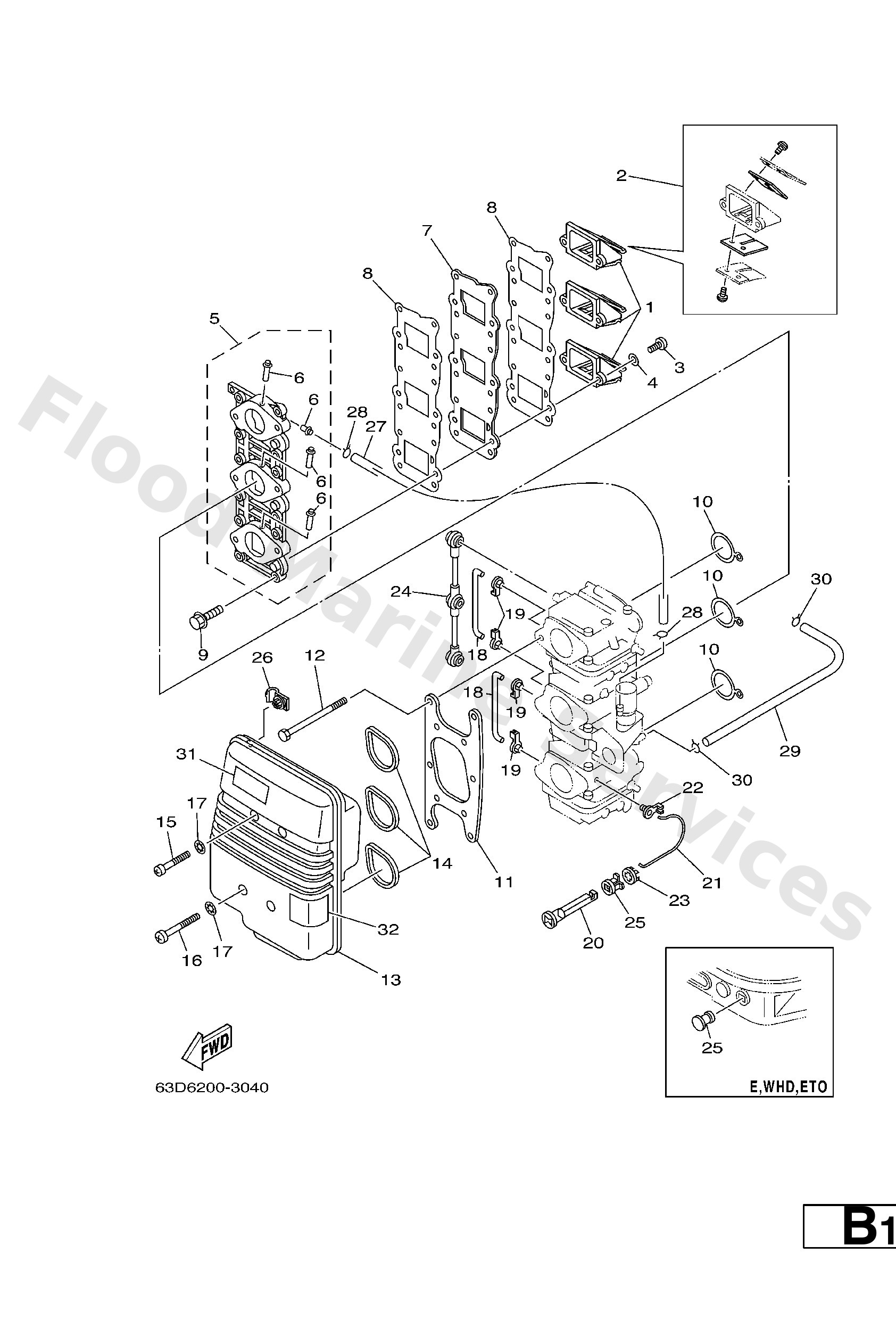

Diagram: INTAKE

Diagram

Parts List

6H5−13610−00

Reed valve assembly

Diagram Reference: 1

6H4−W0004−00

Reed set

Diagram Reference: 2

97880−05014

Screw, pan head(3yl)

Diagram Reference: 3

92990−05600

Washer, plain (646)

Diagram Reference: 4

6H4−13641−12−94 (E−O/I)

Manifold 1

Diagram Reference: 5

6H4−13641−02−94 (E−N.O/I)

Manifold 1

Diagram Reference: 5

6H4−13641−20−94 (M−N.O/I)

Manifold 1

Diagram Reference: 5

6H1−14485−00 (FOR 6H4−13641−12−94)

Pipe, joint

Diagram Reference: 6

6H4−13624−01−94

Plate, reed valve

Diagram Reference: 7

6H4−13621−A1

Gasket, valve seat

Diagram Reference: 8

90119−06MA2

Bolt, with washer

Diagram Reference: 9

6H4−14198−01

Gasket

Diagram Reference: 10

6H4−14406−00

Hinge

Diagram Reference: 11

97095−06095

Bolt, hexagon deep recess

Diagram Reference: 12

6H4−14431−02

Silencer, intake 1

Diagram Reference: 13

6H4−14431−13

Silencer, intake 1

Diagram Reference: 13

6H3−14457−01

Seal

Diagram Reference: 14

97885−06040

Screw pan head

Diagram Reference: 15

97885−06055

Screw, panhed (gc2)

Diagram Reference: 16

90209−06M05

Washer (688)

Diagram Reference: 17

6H4−41257−00

Rod, choke link 2

Diagram Reference: 18

661−41262−02

Joint, choke lever

Diagram Reference: 19

6H4−41271−01

Knob, choke

Diagram Reference: 20

6H4−41259−01

Rod, choke 3

Diagram Reference: 21

6J8−41262−00

Joint, choke lever

Diagram Reference: 22

6J8−41274−00

Grommet 2

Diagram Reference: 23

6H4−41217−01

Rod, accel. lever

Diagram Reference: 24

6G1−42748−00

Grommet

Diagram Reference: 25

689−41273−00

Grommet

Diagram Reference: 25

90464−06M19

Clamp(6h4)

Diagram Reference: 26

90445−07MA5

Hose (l200)

Diagram Reference: 27

90467−06016

Clip (655)

Diagram Reference: 28

6H3−14349−00

Pipe

Diagram Reference: 29

90467−08004

Clip, pipe 6162435600

Diagram Reference: 30

6A1−83625−41 (FOR CARIB)

Mark 5

Diagram Reference: 31

6H1−85711−60

Mark, caution

Diagram Reference: 32
