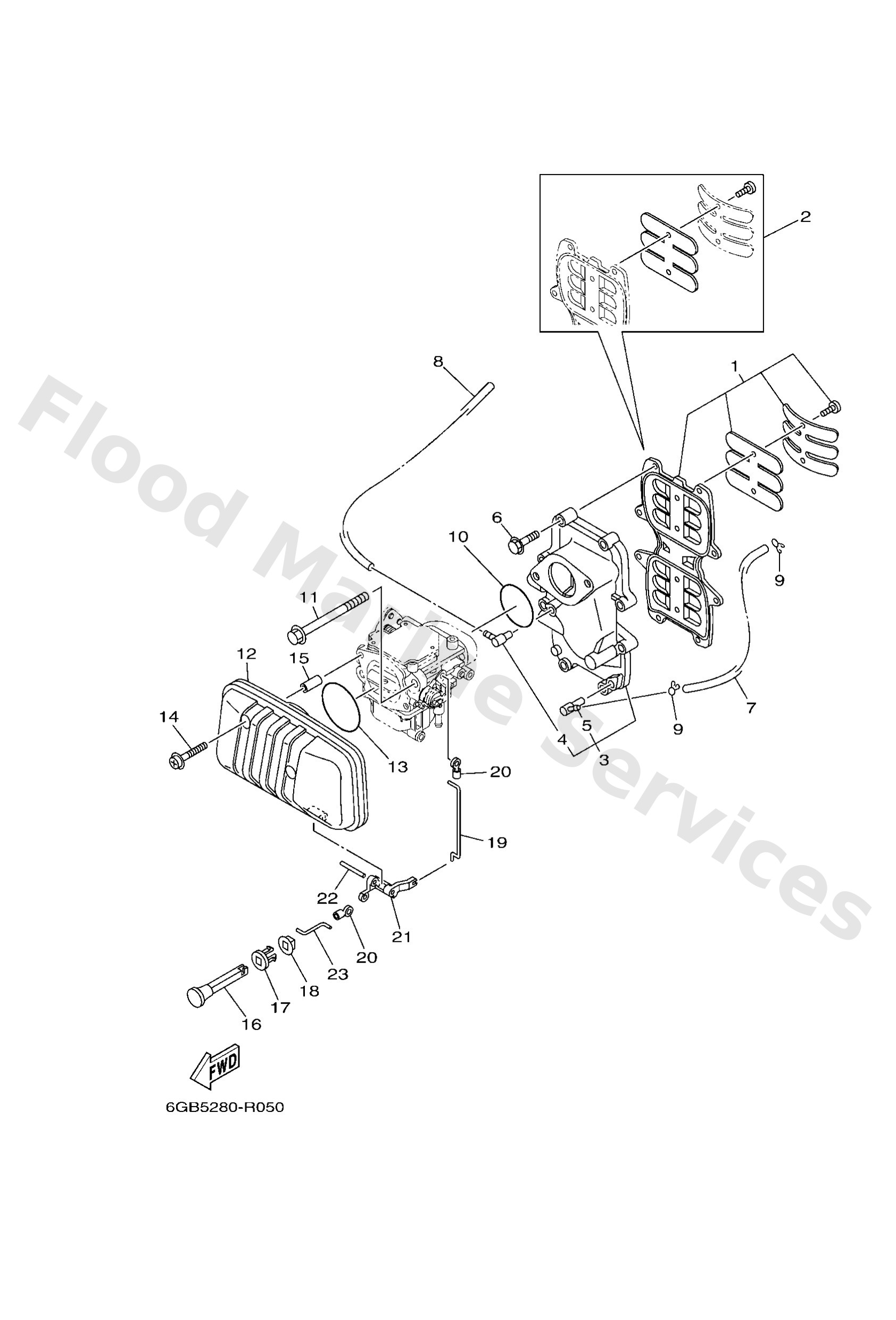

Diagram: INTAKE

Diagram

Parts List

66T1361000
Reed valve assembly
Diagram Reference: 1
Get Part
66TW000400
Reed set
Diagram Reference: 2
Get Part
66T13641021S
Manifold 1
Diagram Reference: 3
Get Part
6E51355201
Nozzle
Diagram Reference: 4
Get Part
6501137201
Nipple, hose
Diagram Reference: 5
Get Part
9751306535
Bolt(3rv)
Diagram Reference: 6
Get Part
9044507M24
Hose (l390)
Diagram Reference: 7
Get Part
9044507MA4
Hose (l390)
Diagram Reference: 8
Get Part
9046706016
Clip (655)
Diagram Reference: 9
Get Part
9321046M16
O-ring (688)
Diagram Reference: 10
Get Part
9011908M03
Bolt (689)
Diagram Reference: 11
Get Part
66T1444010
Silencer assembly, intake
Diagram Reference: 12
Get Part
9321054M54
O-ring (6g1)
Diagram Reference: 13
Get Part
9798506240
Screw, with washer
Diagram Reference: 14
Get Part
9038706M80
Collar
Diagram Reference: 15
Get Part
6H44127102
Knob, choke
Diagram Reference: 16
Get Part
6894127300
Grommet
Diagram Reference: 17
Get Part
6J84127400
Grommet 2
Diagram Reference: 18
Get Part
66T4125600
Rod, choke 1
Diagram Reference: 19
Get Part
6614126202
Joint, choke lever
Diagram Reference: 20
Get Part
66T4125200
Lever, choke 1
Diagram Reference: 21
Get Part
9169040032
Pin, spring (6f5)
Diagram Reference: 22
Get Part
66T4125700
Rod, choke 2
Diagram Reference: 23
