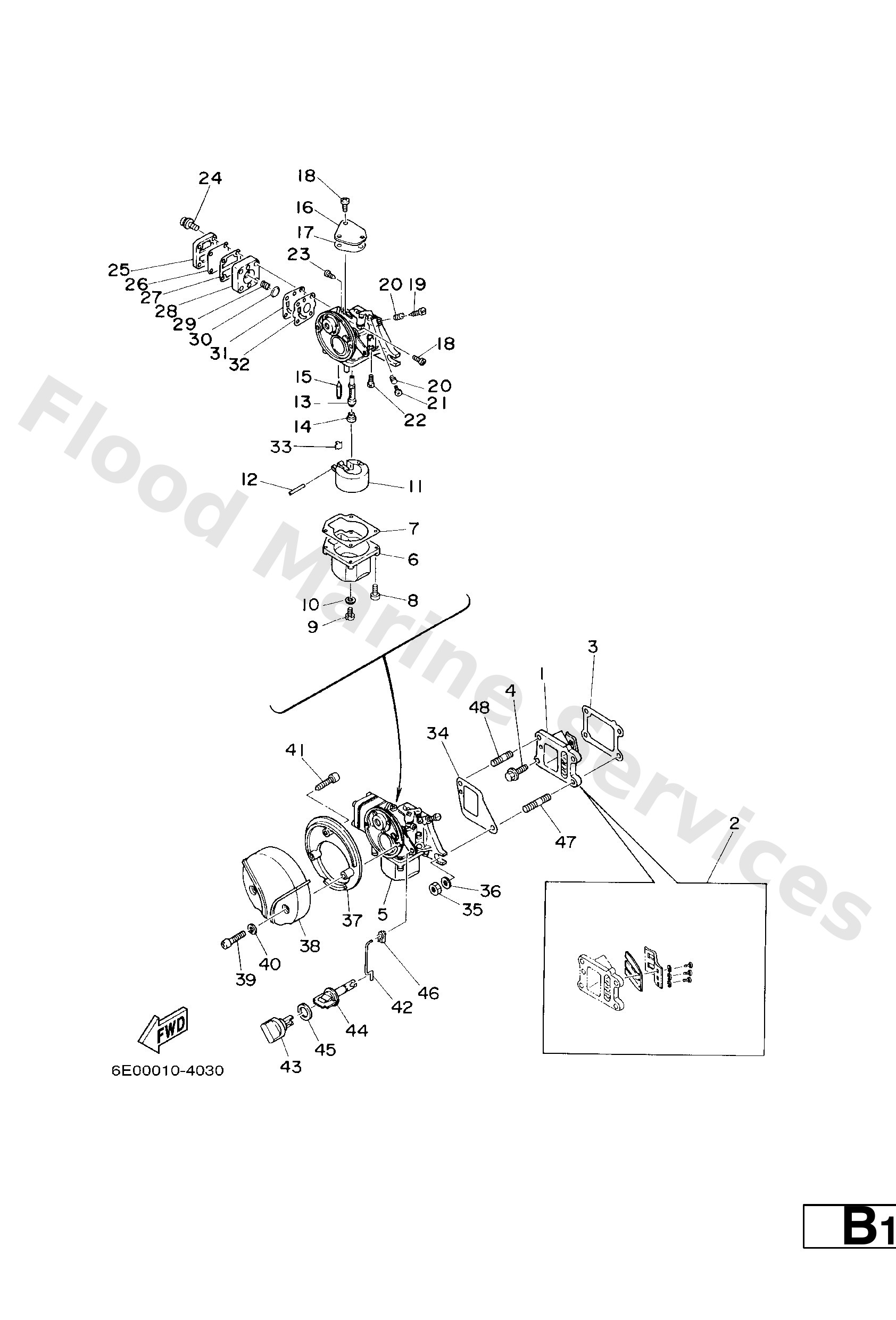

Diagram: INTAKE

Diagram

Parts List

6E0−13610−00
Reed valve assembly
Diagram Reference: 1
Get Part
6E0−W0004−00
Reed set
Diagram Reference: 2
Get Part
6E0−13621−A2
Gasket, valve seat
Diagram Reference: 3
Get Part
95895−06016
Bolt, flange deep recess
Diagram Reference: 4
Get Part
6E0−14301−05
Carburetor assembly 1
Diagram Reference: 5
Get Part
6E3−14301−05
Carburetor assembly 1
Diagram Reference: 5
Get Part
6E0−14381−02
Body, float chamber
Diagram Reference: 6
Get Part
6E0−14384−00
Gasket, float chamber
Diagram Reference: 7
Get Part
97980−04116
Screw, with washer(61b)
Diagram Reference: 8
Get Part
97890−05006
Screw,panhead (eg9)
Diagram Reference: 9
Get Part
646−14198−01
Gasket
Diagram Reference: 10
Get Part
6E7−14385−01
Float
Diagram Reference: 11
Get Part
647−14386−00
Pin, float
Diagram Reference: 12
Get Part
6E3−14341−02
Nozzle, main
Diagram Reference: 13
Get Part
6E0−14341−01
Nozzle, main
Diagram Reference: 13
Get Part
648−14343−40
Jet, main (#80)
Diagram Reference: 14
Get Part
6F5−14392−00
Valve, needle
Diagram Reference: 15
Get Part
6E0−14157−00
Cover, plate
Diagram Reference: 16
Get Part
6E0−14227−00
Gasket
Diagram Reference: 17
Get Part
97890−04007
Screw, pan head (7h3)
Diagram Reference: 18
Get Part
647−14323−00
Screw, air adjusting
Diagram Reference: 19
Get Part
646−14212−01
Spring, pilot adjusting
Diagram Reference: 20
Get Part
664−14321−01
Screw, throttle
Diagram Reference: 21
Get Part
648−14342−23
Jet, pilot (#46)
Diagram Reference: 22
Get Part
648−14342−26
Jet, pilot (#52)
Diagram Reference: 22
Get Part
647−14326−00
Screw, guide
Diagram Reference: 23
Get Part
97980−04120
Screw, pan head (7h3)
Diagram Reference: 24
Get Part
6E0−24413−00
Cover, pump
Diagram Reference: 25
Get Part
6E0−24471−00
Diaphragm
Diagram Reference: 26
Get Part
6E0−24435−00
Gasket, cover pump
Diagram Reference: 27
Get Part
6E0−24412−00
Body, pump
Diagram Reference: 28
Get Part
6E0−24423−00
Spring
Diagram Reference: 29
Get Part
6E0−14346−00
Plate
Diagram Reference: 30
Get Part
6E0−24411−00
Diaphragm
Diagram Reference: 31
Get Part
6E0−24434−00
Gasket, body pump
Diagram Reference: 32
Get Part
6E0−14159−00
Clip
Diagram Reference: 33
Get Part
6E0−14198−A0
Gasket
Diagram Reference: 34
Get Part
95380−06700
Nut
Diagram Reference: 35
Get Part
92995−06600
Washer, plain (646)
Diagram Reference: 36
Get Part
6E0−14417−00
Cover 1
Diagram Reference: 37
Get Part
6E0−14418−00
Cover 2
Diagram Reference: 38
Get Part
97880−05025
Screw, panhead (a93)
Diagram Reference: 39
Get Part
92990−05600
Washer, plain (646)
Diagram Reference: 40
Get Part
97780−40720
Ybs81-420 screw,0.head tapping
Diagram Reference: 41
Get Part
6E0−41256−00
Rod, choke link
Diagram Reference: 42
Get Part
6E0−41271−00
Knob, choke
Diagram Reference: 43
Get Part
6E0−41272−00
Knob, choke 2
Diagram Reference: 44
Get Part
90202−12M16
Washer, plate (6e0)
Diagram Reference: 45
Get Part
661−41262−02
Joint, choke lever
Diagram Reference: 46
Get Part
95627−06325
Bolt, stud(6e0)
Diagram Reference: 47
Get Part
90116−06M08
Bolt, stud (689)
Diagram Reference: 48
Get Part
