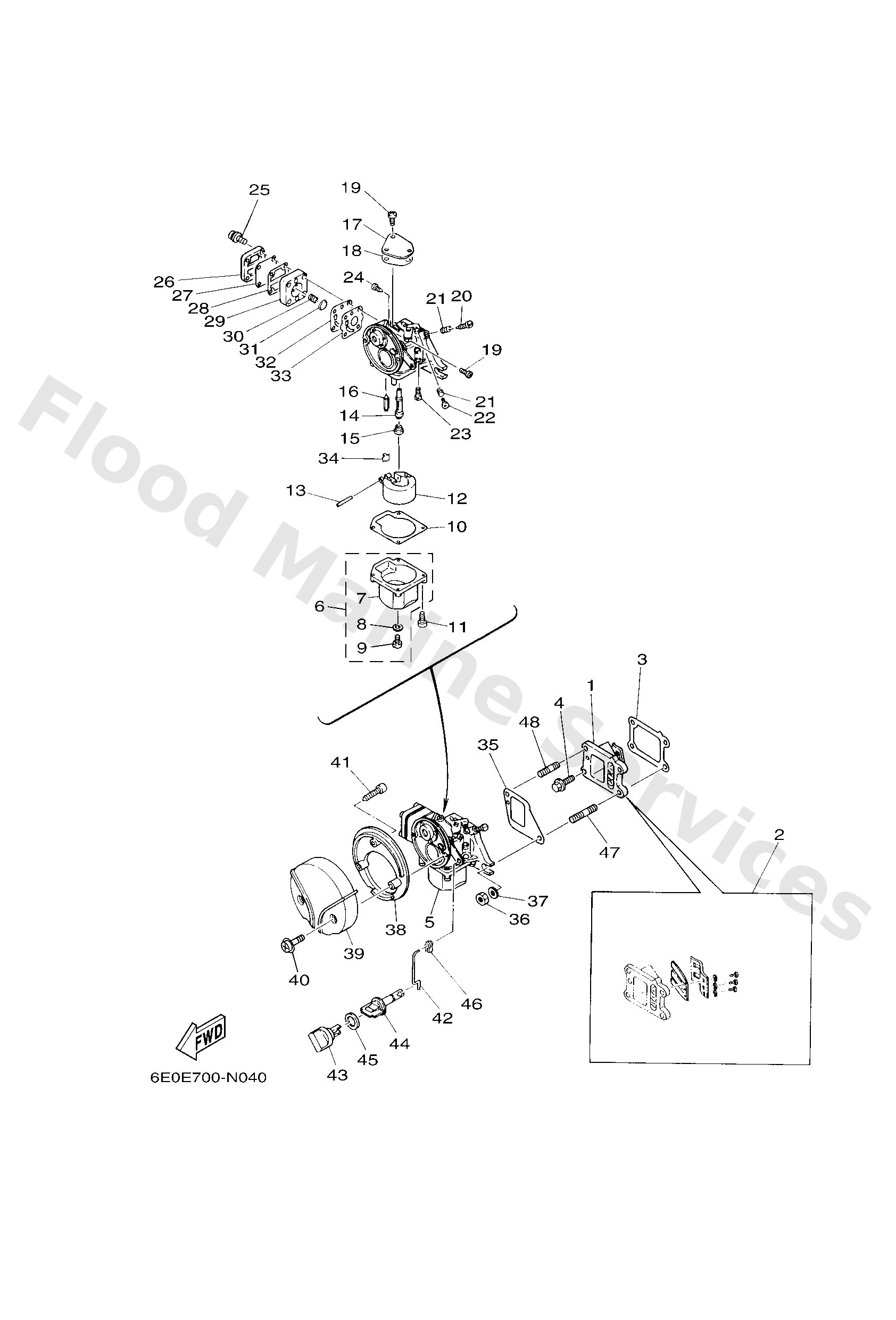

Diagram: INTAKE

Diagram

Parts List

6E01361000
Reed valve assembly
Diagram Reference: 1
Get Part
6J11361000
Reed valve assembly
Diagram Reference: 1
Get Part
6E0W000400
Reed set
Diagram Reference: 2
Get Part
6J1W000400
Reed set
Diagram Reference: 2
Get Part
6E013621A2
Gasket, valve seat
Diagram Reference: 3
Get Part
9589506016
Bolt, flange deep recess
Diagram Reference: 4
Get Part
6E01430105
Carburetor assembly 1
Diagram Reference: 5
Get Part
6E31430105
Carburetor assembly 1
Diagram Reference: 5
Get Part
6E01418000
Float chamber assembly
Diagram Reference: 6
Get Part
6E01438102
Body, float chamber
Diagram Reference: 7
Get Part
6461419801
Gasket
Diagram Reference: 8
Get Part
9789005006
Screw,panhead (eg9)
Diagram Reference: 9
Get Part
6E01438400
Gasket, float chamber
Diagram Reference: 10
Get Part
9798004116
Screw, with washer(61b)
Diagram Reference: 11
Get Part
6E71438501
Float
Diagram Reference: 12
Get Part
6471438600
Pin, float
Diagram Reference: 13
Get Part
6E01434101
Nozzle, main
Diagram Reference: 14
Get Part
6E31434102
Nozzle, main
Diagram Reference: 14
Get Part
6481434340
Jet, main (#80)
Diagram Reference: 15
Get Part
6F51439200
Valve, needle
Diagram Reference: 16
Get Part
6E01415700
Cover, plate
Diagram Reference: 17
Get Part
6E01422700
Gasket
Diagram Reference: 18
Get Part
9789004007
Screw, pan head (7h3)
Diagram Reference: 19
Get Part
6471432300
Screw, air adjusting
Diagram Reference: 20
Get Part
6461421201
Spring, pilot adjusting
Diagram Reference: 21
Get Part
6641432101
Screw, throttle
Diagram Reference: 22
Get Part
6481434223
Jet, pilot (#46)
Diagram Reference: 23
Get Part
6481434226
Jet, pilot (#52)
Diagram Reference: 23
Get Part
6471432600
Screw, guide
Diagram Reference: 24
Get Part
9798004120
Screw, pan head (7h3)
Diagram Reference: 25
Get Part
6E02441300
Cover, pump
Diagram Reference: 26
Get Part
6E02447100
Diaphragm
Diagram Reference: 27
Get Part
6E02443500
Gasket, cover pump
Diagram Reference: 28
Get Part
6E02441200
Body, pump
Diagram Reference: 29
Get Part
6E02442300
Spring
Diagram Reference: 30
Get Part
6E01434600
Plate
Diagram Reference: 31
Get Part
6E02441100
Diaphragm
Diagram Reference: 32
Get Part
6E02443400
Gasket, body pump
Diagram Reference: 33
Get Part
6E01415900
Clip
Diagram Reference: 34
Get Part
6E014198A0
Gasket
Diagram Reference: 35
Get Part
9538006700
Nut
Diagram Reference: 36
Get Part
9299506600
Washer, plain (646)
Diagram Reference: 37
Get Part
6E01441700
Cover 1
Diagram Reference: 38
Get Part
6E01441800
Cover 2
Diagram Reference: 39
Get Part
9798005225
Screw, with washer
Diagram Reference: 40
Get Part
9778040720
Ybs81-420 screw,0.head tapping
Diagram Reference: 41
Get Part
6E04125600
Rod, choke link
Diagram Reference: 42
Get Part
6E04127101
Knob, choke
Diagram Reference: 43
Get Part
6E04127200
Knob, choke 2
Diagram Reference: 44
Get Part
9020212M16
Washer, plate (6e0)
Diagram Reference: 45
Get Part
6614126202
Joint, choke lever
Diagram Reference: 46
Get Part
9562706325
Bolt, stud(6e0)
Diagram Reference: 47
Get Part
9011606M08
Bolt, stud (689)
Diagram Reference: 48
Get Part
