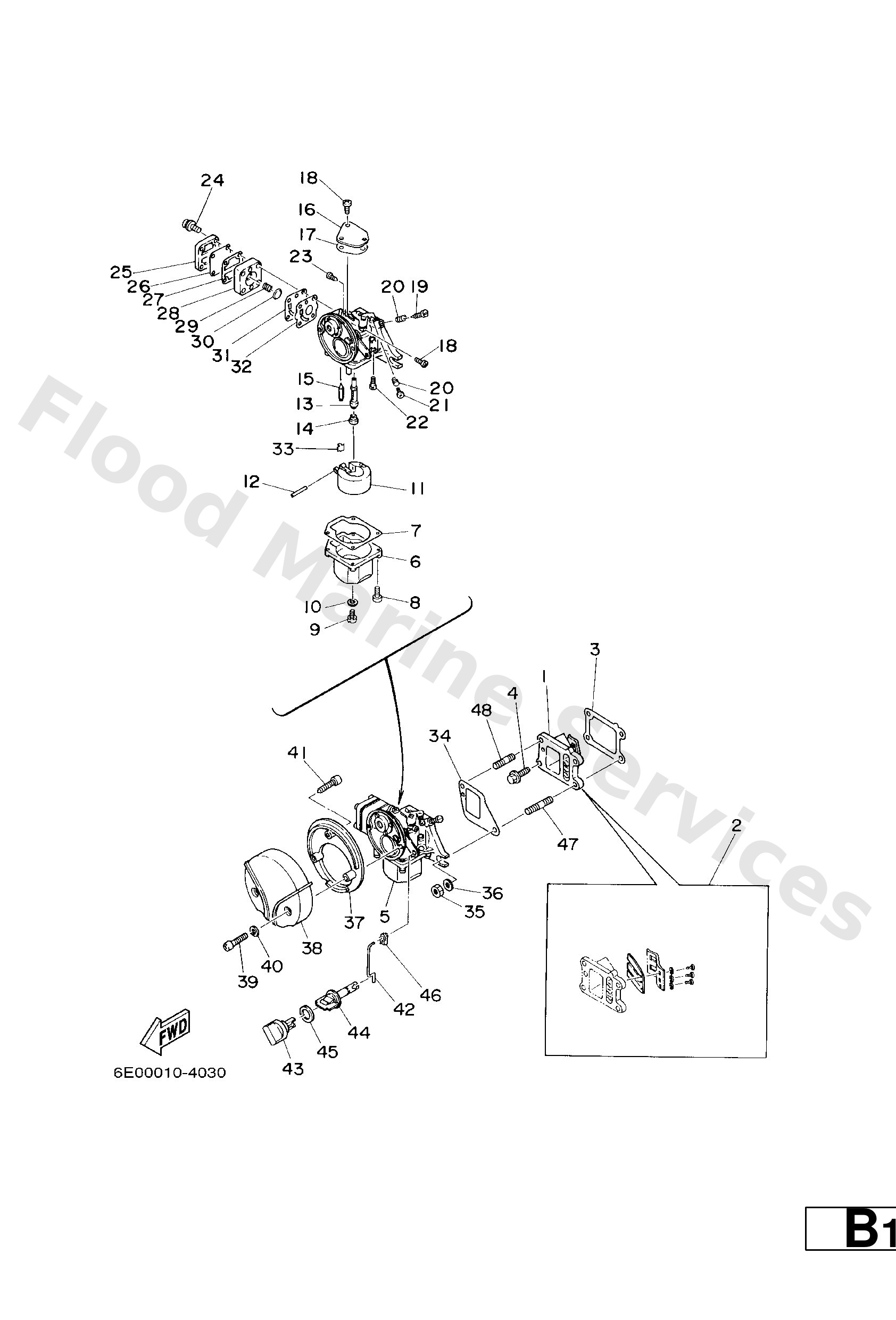

Diagram: INTAKE

Diagram

Parts List

6E0--13610--00
Reed valve assembly
Diagram Reference: 1
Get Part
6E0--W0004--00
Reed set
Diagram Reference: 2
Get Part
6E0--13621--A2
Gasket, valve seat
Diagram Reference: 3
Get Part
95895--06016
Bolt, flange deep recess
Diagram Reference: 4
Get Part
6E0--14301--05
Carburetor assembly 1
Diagram Reference: 5
Get Part
6E3--14301--05
Carburetor assembly 1
Diagram Reference: 5
Get Part
6E0--14381--02
Body, float chamber
Diagram Reference: 6
Get Part
6E0--14384--00
Gasket, float chamber
Diagram Reference: 7
Get Part
97980--04116
Screw, with washer(61b)
Diagram Reference: 8
Get Part
97890--05006
Screw,panhead (eg9)
Diagram Reference: 9
Get Part
646--14198--01
Gasket
Diagram Reference: 10
Get Part
6E7--14385--01
Float
Diagram Reference: 11
Get Part
647--14386--00
Pin, float
Diagram Reference: 12
Get Part
6E3--14341--02
Nozzle, main
Diagram Reference: 13
Get Part
6E0--14341--01
Nozzle, main
Diagram Reference: 13
Get Part
648--14343--40
Jet, main (#80)
Diagram Reference: 14
Get Part
6F5--14392--00
Valve, needle
Diagram Reference: 15
Get Part
6E0--14157--00
Cover, plate
Diagram Reference: 16
Get Part
6E0--14227--00
Gasket
Diagram Reference: 17
Get Part
97890--04007
Screw, pan head (7h3)
Diagram Reference: 18
Get Part
647--14323--00
Screw, air adjusting
Diagram Reference: 19
Get Part
646--14212--01
Spring, pilot adjusting
Diagram Reference: 20
Get Part
664--14321--01
Screw, throttle
Diagram Reference: 21
Get Part
648--14342--23
Jet, pilot (#46)
Diagram Reference: 22
Get Part
648--14342--26
Jet, pilot (#52)
Diagram Reference: 22
Get Part
647--14326--00
Screw, guide
Diagram Reference: 23
Get Part
97980--04120
Screw, pan head (7h3)
Diagram Reference: 24
Get Part
6E0--24413--00
Cover, pump
Diagram Reference: 25
Get Part
6E0--24471--00
Diaphragm
Diagram Reference: 26
Get Part
6E0--24435--00
Gasket, cover pump
Diagram Reference: 27
Get Part
6E0--24412--00
Body, pump
Diagram Reference: 28
Get Part
6E0--24423--00
Spring
Diagram Reference: 29
Get Part
6E0--14346--00
Plate
Diagram Reference: 30
Get Part
6E0--24411--00
Diaphragm
Diagram Reference: 31
Get Part
6E0--24434--00
Gasket, body pump
Diagram Reference: 32
Get Part
6E0--14159--00
Clip
Diagram Reference: 33
Get Part
6E0--14198--A0
Gasket
Diagram Reference: 34
Get Part
95380--06700
Nut
Diagram Reference: 35
Get Part
92995--06600
Washer, plain (646)
Diagram Reference: 36
Get Part
6E0--14417--00
Cover 1
Diagram Reference: 37
Get Part
6E0--14418--00
Cover 2
Diagram Reference: 38
Get Part
97880--05025
Screw, panhead (a93)
Diagram Reference: 39
Get Part
92990--05600
Washer, plain (646)
Diagram Reference: 40
Get Part
97780--40720
Ybs81-420 screw,0.head tapping
Diagram Reference: 41
Get Part
6E0--41256--00
Rod, choke link
Diagram Reference: 42
Get Part
6E04127100
Knob, choke
Diagram Reference: 43
Get Part
6E0--41272--00
Knob, choke 2
Diagram Reference: 44
Get Part
90202--12M16
Washer, plate (6e0)
Diagram Reference: 45
Get Part
661--41262--02
Joint, choke lever
Diagram Reference: 46
Get Part
95627--06325
Bolt, stud(6e0)
Diagram Reference: 47
Get Part
90116--06M08
Bolt, stud (689)
Diagram Reference: 48
Get Part
