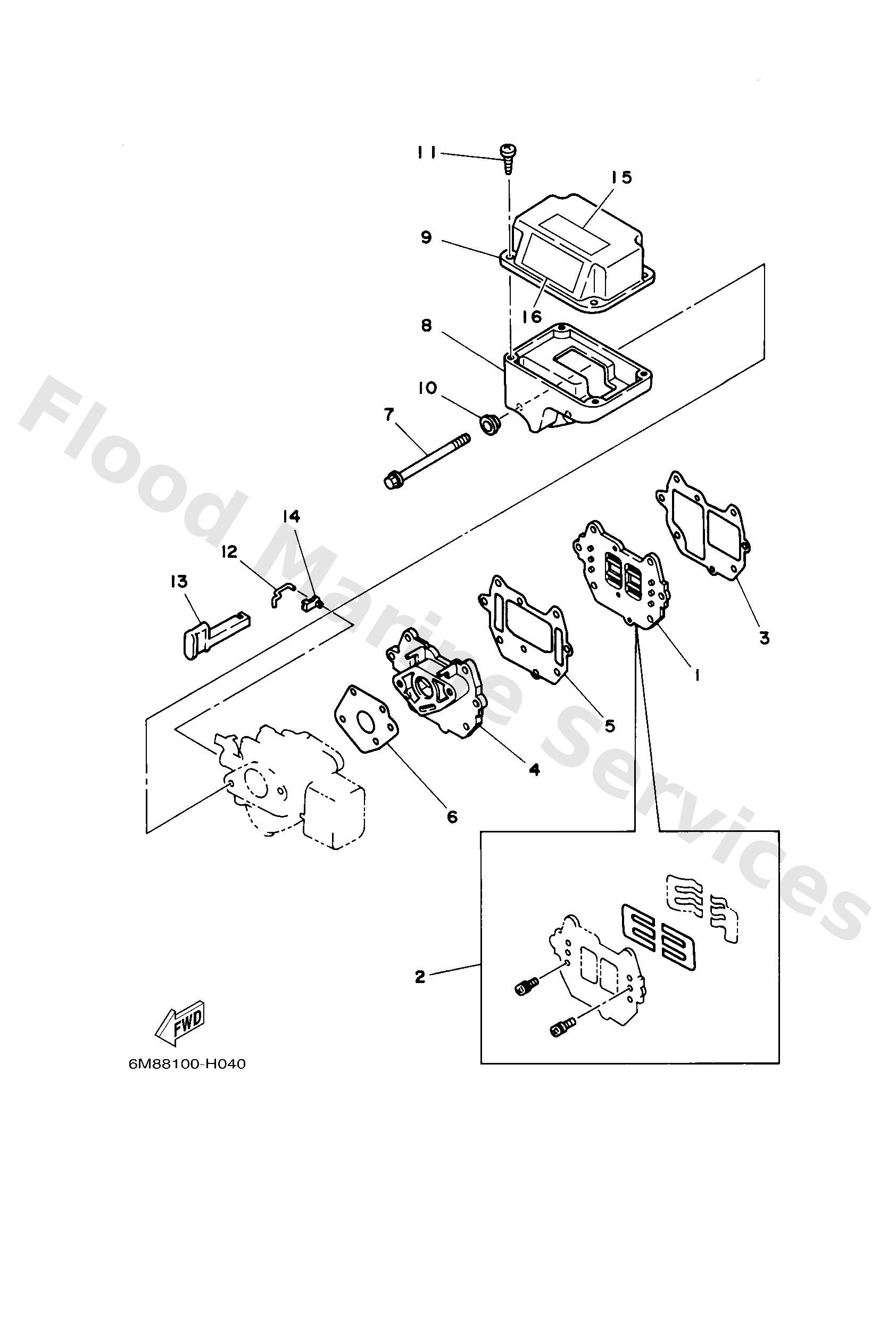

Diagram: INTAKE

Diagram

Parts List

6G11361001
Reed valve assembly
Diagram Reference: 1
Get Part
6G1W000400
Reed set
Diagram Reference: 2
Get Part
6G113621A1
Gasket, valve seat
Diagram Reference: 3
Get Part
6N0E36410094
Manifold, intake 1
Diagram Reference: 4
Get Part
6G113645A1
Gasket, intake manifold
Diagram Reference: 5
Get Part
6G114198A1
Gasket
Diagram Reference: 6
Get Part
9589506085
Bolt, flange(6g1)
Diagram Reference: 7
Get Part
6M8E441700
Cover set
Diagram Reference: 8
Get Part
6M8E441800
Cover 2
Diagram Reference: 9
Get Part
9038706M70
Collar (6h5)
Diagram Reference: 10
Get Part
9778050514
Screw, panhead tapping (682)
Diagram Reference: 11
Get Part
6G14125600
Rod, choke link
Diagram Reference: 12
Get Part
6G14127100
Knob, choke 1
Diagram Reference: 13
Get Part
6614126202
Joint, choke lever
Diagram Reference: 14
Get Part
6AH8199440
Label, safety
Diagram Reference: 15
Get Part
6AH8199450
Label, safety
Diagram Reference: 16
Get Part
